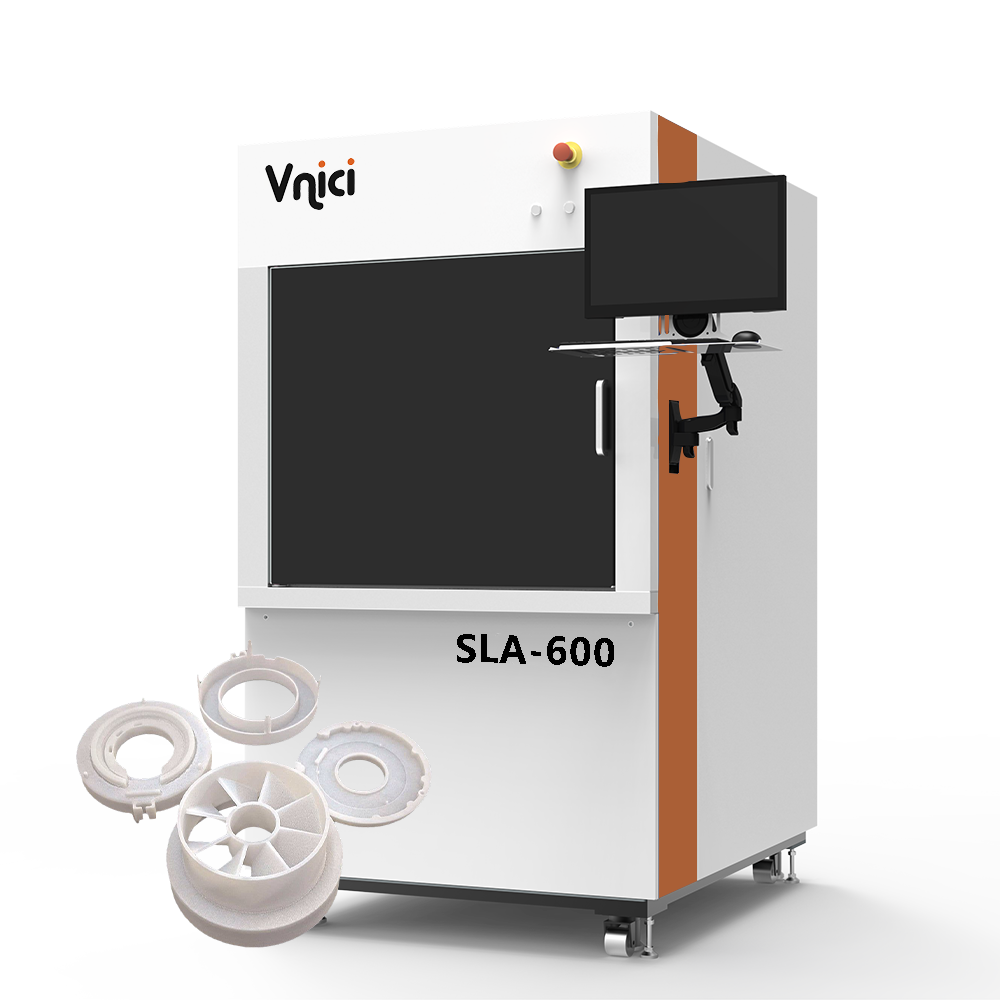

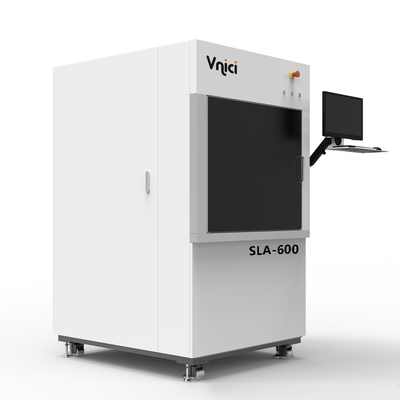

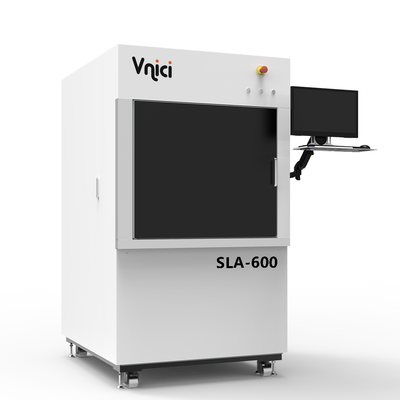

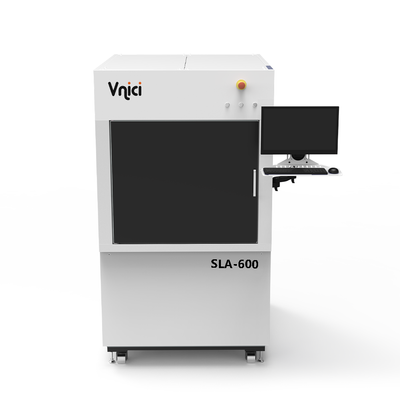

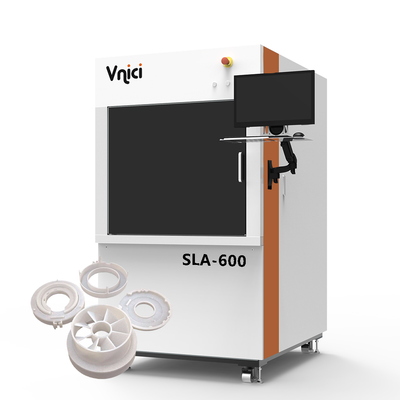

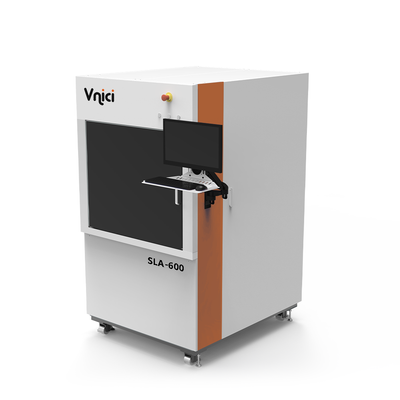

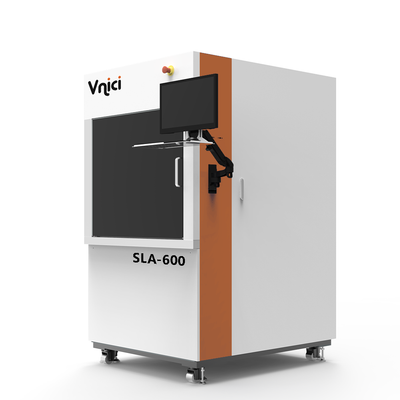

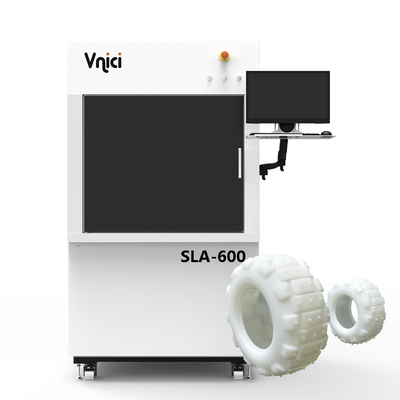

VNICI SLA-600

Industrial SLA 3D Printer 600

Industrial-grade SLA (Stereolithography) 3D Printer

“For high-end application scenarios, it delivers high-precision moulding to reduce R&D costs.”

Overall impression: This is an industrial-grade device that strives for excellence in precision, stability and application scope, with particular emphasis on its suitability for professional fields.

Request A Quick Quote

Video of Industrial SLA 3D Printer 600

Start An Order With Us

Key Features of Industrial SLA 3D Printer 600

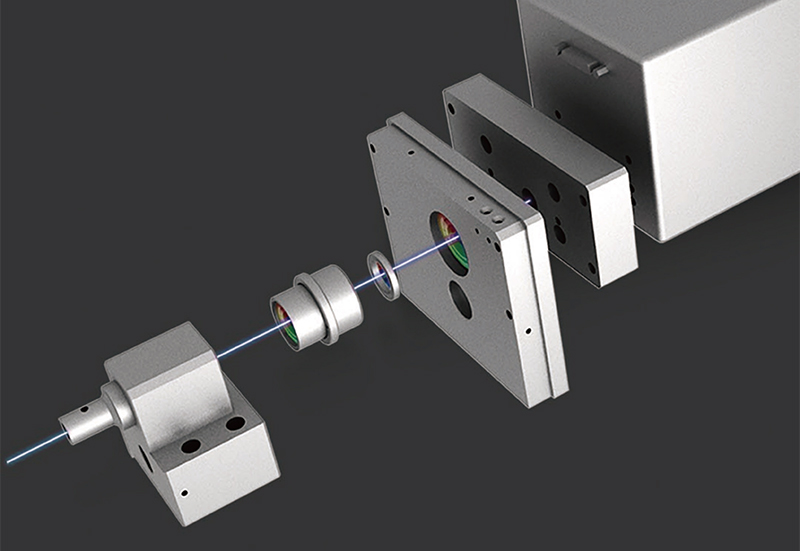

Industrial-Grade Precision

Print layer thickness selectable between 0.05–0.15mm enables intricate fabrication.
Utilises a laser (355nm wavelength) and high-speed scanning mirrors to ensure printing accuracy.

Large-Format Printing

Build volume of 600 x 600 x 400mm balances printing capacity with footprint.

Core Technologies

Variable Spot Size Technology (0.06–1.2mm): Flexibly adjusts spot diameter to balance printing efficiency and surface finish.

Low-Stress Stereolithography

Minimises printing stresses to reduce part deformation.

Gentle Support Removal

Support structures detach effortlessly with minimal residue, enhancing post-processing efficiency.

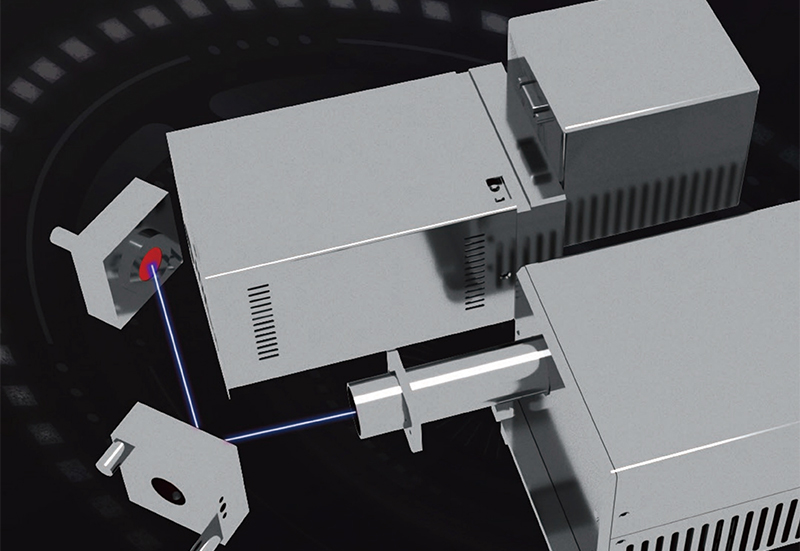

High-Stability Structure

Features a precision-ground marble reference platform, linear guides + ball screws, and a vacuum suction system to ensure stable and reliable printing.

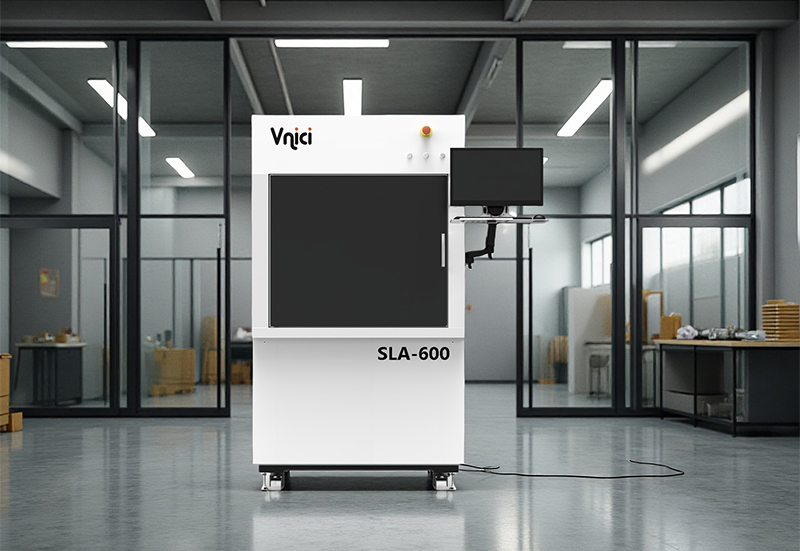

Office Environment Compatibility

Compact dimensions (1140 × 1300 × 1900 mm) enable straightforward elevator transport into standard offices or buildings, facilitating installation in R&D centres and similar environments.

Superior Surface Finish

Promotional materials highlight smooth printed surfaces approaching mass-produced injection-moulded quality, emphasising high success rates and refinement through comparisons with FDM printers.

Extensive Material and Industry Applications

Supports diverse SLA-specific resins with varied properties (engineering, high-temperature resistant, transparent, casting, dental, etc.).
Applications span over ten sectors including product design, industrial prototyping, biomedical, dental, automotive, aerospace, and education.

Contact Our Support Team

Technical Specifications of Industrial SLA 3D Printer 600

Specifications	Modet	Vnici-SLA-600
	Appearance Dimensions	114013001900mm
	Net Weight	860KG
	Machine Power	550W
Laser System	Laser Quantity	1
	Laser Type	Diode-Pumped Solid-State Laser Nd:YVO₄
	Laser Wavelength	355nm
	Laser Power	3W
0ptical Scanning System	Spot Diameter	0.06-1.2mm
	Scanning System	High -speed Galvanometer Scanning System
	Part Scanning Speed	Recommended 6m/s
	Jumping Speed Of Parts	Recommended 10m/s
	Reference Production Speed	300-500g/h
Coating System	Coating Method	Precision Positioning-Vacuum Adsorption
	Normal Layer Thickness	0.1mm
	Rapid Layer Thickness	0.2mm
	Precision Layer Thickness	0.05mm
	Characteristic Layer Thickness	0.05mm-0.15mm(Selectable)
Resin Tank	Resin Tank Capacity	Approximately240kg
Resin Tank	Maximum Forming Size	600600400mm
Lifting System	Basic Platform	Grinding-Grade Marble Reference Platform
	Repeat Positioning Accuracy	±0.01mm
	Maximum Part Weight	25kg

Start A Project With Us

Applications of Industrial SLA 3D Printer 600

Animation And Toy Industry
Industrial Handboard Mold Design
Aerospace Industry
Construction Industry
Education Industry
Automotive Industry
Biomedical Industry
Dental Industry

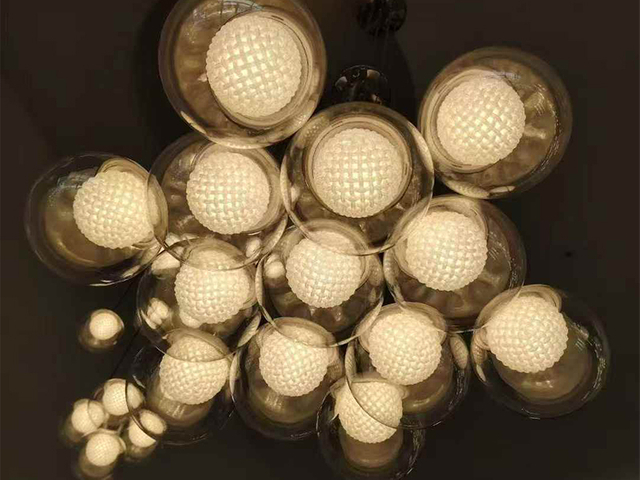

Art Design
Foundry Industry

Send Us Your Inquiry Today

Sample Gallery of Industrial SLA 3D Printer

Boost Your Business Now

Industrial SLA 3D Printer 600 Catalogue

Name	Size	Downloads	Thumbnail	Download
Vnici SLA 3D Printer 600 Catalogue.pdf	39.65MB	1		Download

Packaging & Delivery of Industrial SLA 3D Printer 600

Each SLA 3D printer is carefully packed with protective foam and exported wooden box to ensure safety during international shipment.
Standard lead time: 15–25 working days.

1.Packaging

Logistics Packaging Components

1.Wooden Crate

The assembled 3D printer (excluding the industrial control computer and laser unit) is secured within the wooden crate using bolts and nuts. It is then packaged for shipment, requiring forklift assistance during loading and unloading.

2. Industrial Control Computer

The industrial control computer comprises the main unit and monitor. The monitor is detached, padded with foam, and shipped in a cardboard box.

3. Laser Unit

The laser unit comprises the emitter and control box. The laser is detached, internally padded with foam, and shipped in a cardboard box.

2.Transportation

Equipment Dimensions
Machine dimensions (rounded, with warning lights lowered):

1380 (L) × 1500 (W) × 2235 (H) mm

3.Packaging Crate Management

During transit to the customer, the machine is enclosed in a dedicated packaging crate for secure transport. Please adhere to the procedures outlined in this chapter for the correct handling, movement, and storage of the packaging crate.
*Important Notes:Do not attempt to open the packaging crate yourself. Our technical personnel must be present on-site to open the crate.

4.Acceptance and Storage of Packaging Crates

Upon receipt of the packaging crate, the customer must immediately inspect its condition. Should any damage be detected, the relevant issues must be promptly reported to our company personnel and the transport team before the crate is transported to the installation site or opened.
Components of the 3D printer must be stored in their packaging boxes.

*Should temporary storage of the packaging boxes be required, this must be undertaken in a dry indoor environment with adequate protective measures. Please note: Storage temperature must be maintained between 0°C and 50°C, with relative humidity below 75%.

Dimensions of the Packaging Crate

This machine is transported as a complete unit and therefore requires no disassembly prior to shipment. The entire unit is enclosed within a wooden packaging crate or other suitable packaging container. Within the crate, the machine is secured using wooden battens and foam boards or other appropriate methods to prevent movement during transit. The machine inside the wooden crate is wrapped in stretch film to prevent scratches to the outer casing caused by friction during transport.

SLA-800 Printer Wooden Crate Dimensions:

Inner dimensions: 1550 × 1700 × 2190 mm
Outer dimensions: 1600 × 1900 × 2300 mm
Combined shipment: Long sides, short sides, lid and base tray bolted together to form assembly (see assembly diagram); short sides to base tray secured using 8 M10x140 hex-head galvanised bolts.

Get The Latest Price

Why Choose VNICI As Your Industrial 3D Printer Supplier?

Core Technology

Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.

Industrial Solutions

We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.

Good after-sales service

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.

Fast Delivery

We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.

Contact Us Now

Industrial SLA 3D Printer 600 FAQ

Q How do we ensure the laser spot is accurately positioned on the platform?

A To ensure precision, we place a calibration plate on the platform to verify and adjust the position of the laser spot before starting the print process. This ensures consistent printing accuracy.
Q Does the SLA-600 use an F-theta lens attached to the Scanlab scanner?

A Yes, the SLA-600 uses an F-theta lens in combination with the Scanlab scanner , ensuring optimal focus and high-quality prints.
Q How do we calibrate the platform for the SLA-600, and how can we ensure the laser spot is correctly positioned?

A The SLA-600 is calibrated before shipment , but you will need to purchase a calibration board along with the machine. Our engineers will provide training to ensure accurate calibration and laser spot alignment.
Q What types of resin are available for sale for private and business customers?

A We offer a variety of resins for both private and business customers . Our sales team can provide a professional recommendation based on your specific needs.
Q What warranty does the SLA-600 come with, and what does it include?

A The SLA-600 comes with a 1-year warranty , including 24-hour online technical support . We offer free troubleshooting and support during the warranty period.
Q Does the SLA-600 accept payments in installments?

A Unfortunately, we do not offer installment payment plans . Payment for the SLA-600 must be made in full.
Q Can I receive videos and an explanation of how the SLA-600 works?

A Yes, we can provide detailed videos and a thorough explanation of how the SLA-600 operates. Please contact us for more information.
Q What slicing software is used with the SLA-600?

A The SLA-600 supports slicing software like Voxeldance Additive (China) and Materialise Magics (Belgium), which are both popular for creating optimal print paths for SLA 3D printing.
Q What accessories are included with the SLA-600 3D printer?

A The SLA-600 comes with a full set of accessories . For more details and images of the included accessories, please contact our sales team.
Q What is the resin tank capacity of the SLA-600?

A The resin tank capacity for the SLA-600 is 250kg , offering a large enough volume for extended print runs, making it ideal for high-output industrial 3D printing.
Q What is the operating system for the SLA-600?

A The SLA-600 uses our own operating software , designed to maximize printing accuracy and ease of use, specifically for industrial applications.
Q Is there an English version of the software for the SLA-600?

A Yes, the software for the SLA-600 is available in English , making it accessible to a global customer base.
Q What is the controller software for the SLA-600?

A The SLA-600 is powered by custom software , developed specifically to control and optimize the machine’s performance. This software ensures smooth and efficient operation tailored to the needs of industrial users.
Q What type of motor is used in the SLA-600 3D printer?

A The SLA-600 features a servo motor , which provides highly accurate and reliable motion control during the 3D printing process.
Q Is the resin tank of the SLA-600 3D printer replaceable?

A Yes, the resin tank of the SLA-600 is replaceable , allowing for easy maintenance and ensuring consistent print quality over time.
Q What is the laser power of the SLA-600 3D printer?

A The SLA-600 operates with a 5-watt laser , which is ideal for precise and detailed prints in industrial-grade 3D printing applications.
Q What kind of laser does the SLA-600 3D printer use?

A The SLA-600 is equipped with a ND:YVO4 laser , a reliable and popular laser type for industrial SLA 3D printers. The common laser brand used is AOC , known for its high performance and stability.
Q What type of scanner is used in the industrial SLA-600 3D printer?

A The SLA-600 3D printer utilizes a high-speed galvanometer scanner , commonly from well-known brands like Scanlab (Germany) and Hans (China) , ensuring high precision and speed during the printing process.
