355nm High Precision SLA Resin for Shoe Mold Making

High Precision  |  Accurate Dimensions  |  Smooth Surface  |  Good Weather Resistance
Suitable for design verification, high-detail shoe molds,applications of head sculptures and artworks,and small-batch manufacturing for final use.
High-Precision
High Precision
Dimensional-stability

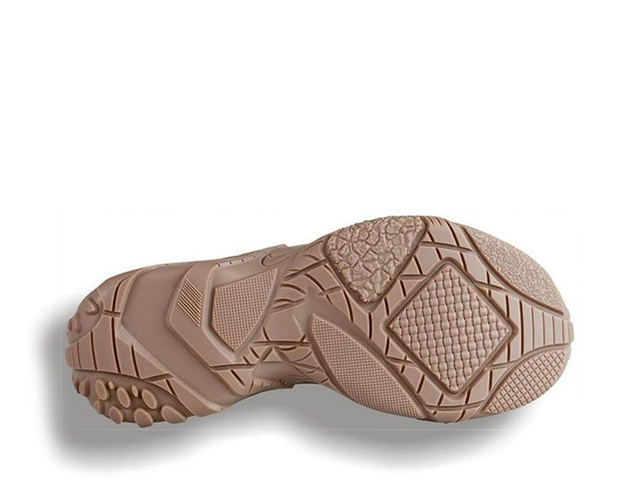

Dimensional Accuracy
Smooth-Surface
Smooth Surface
Moisture-resistance

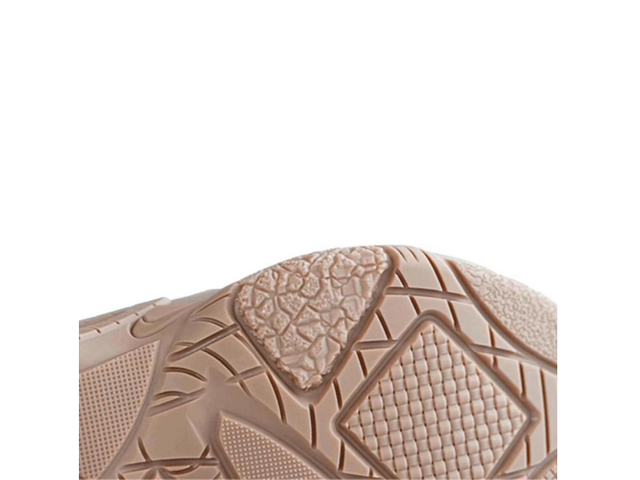

Good Weather Resistance

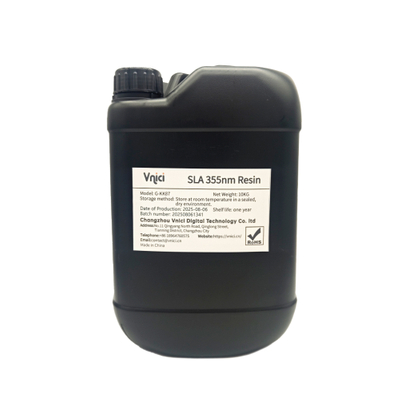

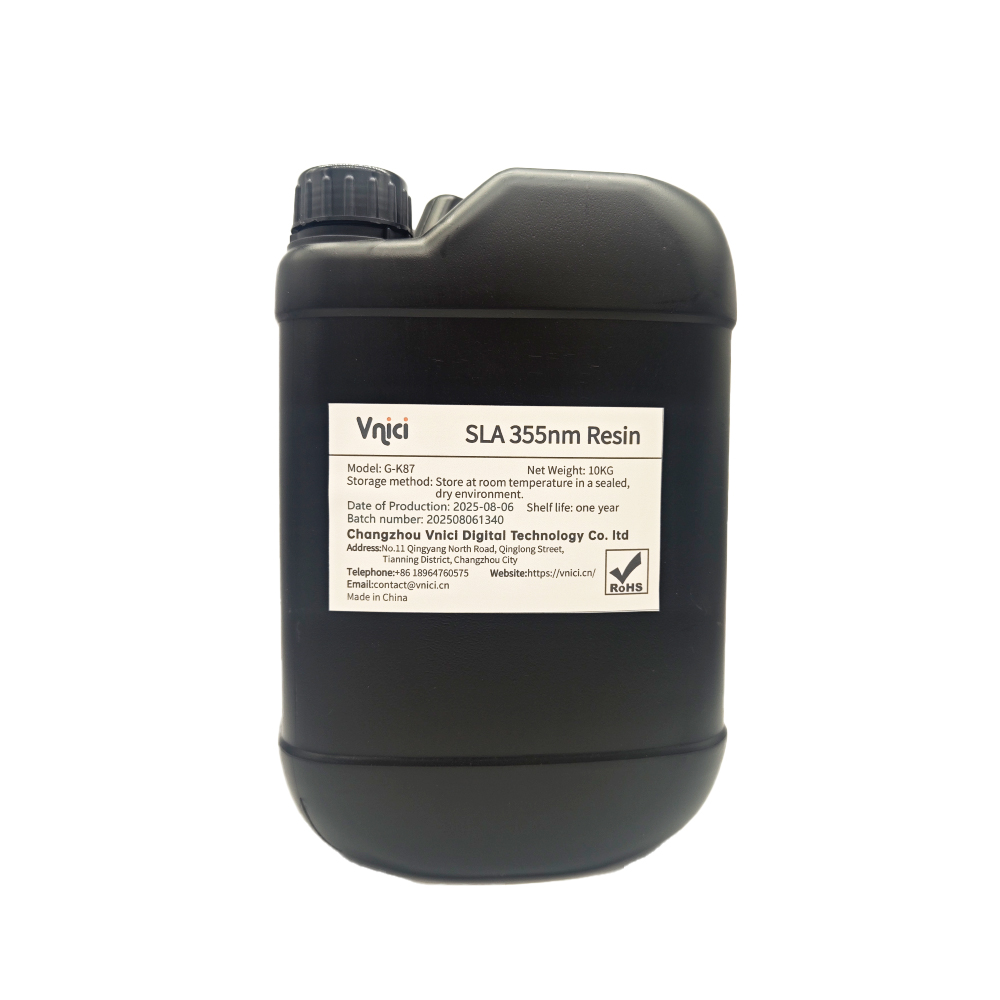

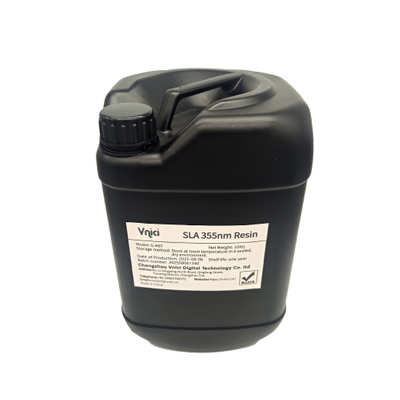

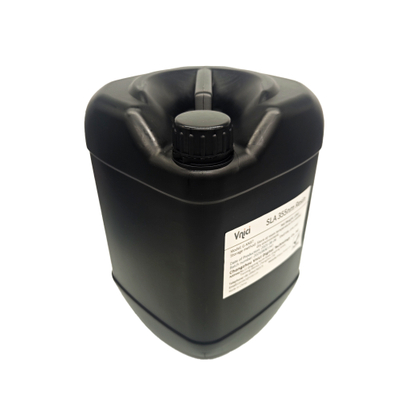

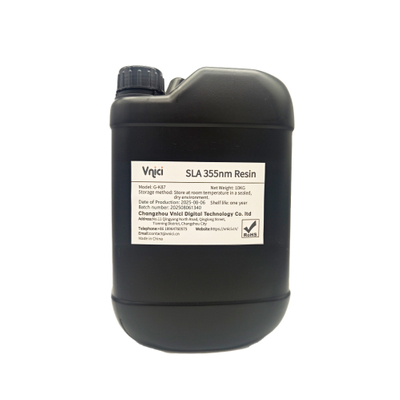

355nm High Precision SLA Resin for Shoe Mold Making(G-K87&G-KK87)

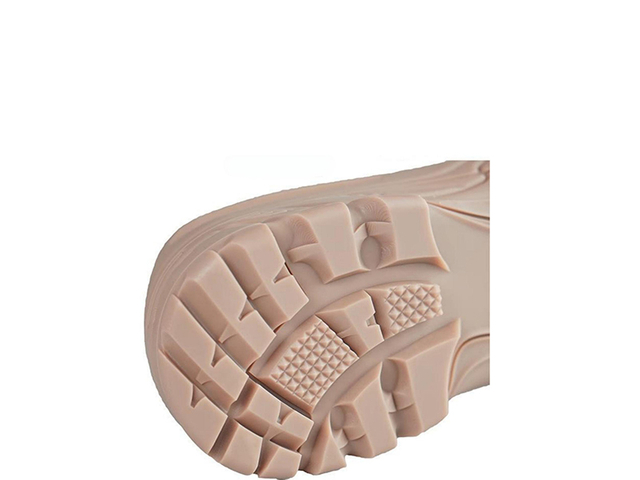

  Type Characteristics Presenting rich detailed features.
  Features High precision, dimensional accuracy, smooth surface, good weather resistance.
  Applications Design verification, high-detail shoe molds, head sculptures and art applications, small-batch manufacturing for end-use.
  G-K87 Characteristics Coffee-colored shoe mold & head sculpture resin, with rich detailed features and dimensional stability, suitable for shoe mold design and mass production, improving the processing speed of traditional molds and reducing processing costs.
  G-KK87 Characteristics Dark coffee-colored shoe mold & head sculpture resin, with rich detailed features and dimensional stability, suitable for shoe mold design and mass production. The dark matte appearance allows for better observation of the overall details of the sample.

Material Parameters of 355nm High Precision SLA Resin for Shoe Mold Making

Model G-K87 G-KK87
Color Coffee Dark Coffee
Packaging Weight 10KG/barrel 10KG/barrel
Viscosity At 25°C 400mPa · s 400mPa · s
Density At 25°C 1.18g/cm3 1.18g/cm3
Tensile Strength 54Mpa 54Mpa
Tensile Modulus 2200Mpa 2200Mpa
Elongation At Break 13% 13%
Flexural Strength 93Mpa 93Mpa
Flexural Modulus 2465Mpa 2465Mpa
Impact Strength 32J/m 32J/m
Shore Hardness 87D 87D
Heat Distortion Temperature At 0.45MPa 59°C 59°C
Water Absorption 0.4% 0.4%

Key Features of 355nm High Precision SLA Resin for Shoe Mold Making

Material Comparison

General-Commonly-Used-Resin

General/Commonly Used Resin


  • Cost-effective
  • Fine texture
  • Easy to clean
  • High hardness and strength
Material for high-resolution models and rapid prototyping
Engineering-Resin

Engineering Resin


  • High hardness and strength
  • Excellent toughness
  • Dimensional stability
  • Easy to clean
ABS-like plastic,durable and tough
Transparent-Resin

Transparent Resin


  • High transparency
  • No imourities
  • No bubbles
  • Easy to clean
Commonly used for visualization models,appearance, concept, and functional models.
Shoe-Mold-Head-Sculpture-High-precision-Resins

Shoe Mold/Head Sculpture High-precision Resins


  • High precision
  • Accurate dimensions
  • Amooth surface
  • Good weather resistance
Present richdetailed features
High-Temperature-Resistant-Resin

High-Temperature Resistant Resin


  • High temperature resistance
  • Dimensional stability
  • High hardness
  • Good moisture resistance
Excellent thermal stability and dimensional accuracy
Flexible-Resin

Flexible Resin


  • Soft
  • Bendina-resistant
  • Fast forming speed
TPU-like material with excellent flexibility
Casting-Resin

Casting Resin


  • High precision
  • Dimensional stability
  • Fast printing speed
  • 0% ash residue
Suitable for casting and pressing shells and functional
models
Dental-Resin

Dental Resin


  • High hardness
  • High strength
  • Clear details
  • Easy to clean
Dental model resin suitable for SLA 3D printing

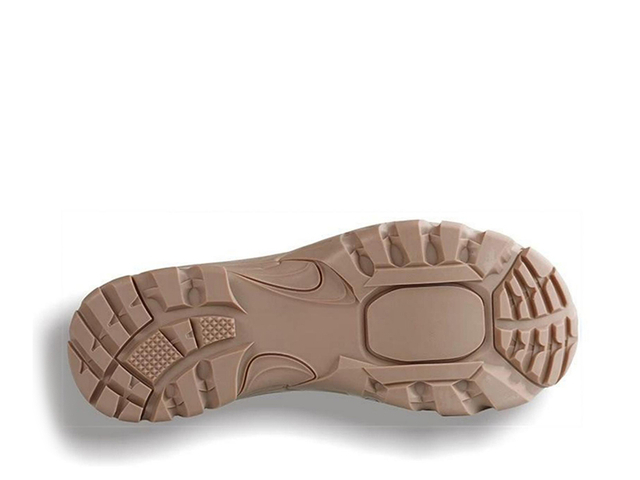

Applications of 355nm High Precision SLA Resin for Shoe Mold Making

Applicable to SLA 3D Printers with 355nm Light Source Wavelength

Material Usage Instructions

Post-processing And Cleaning   |   Safety Precautions   |   Correct Storage Method
1.Clean the model with anhydrous ethanol or isopropanol using an ultrasonic oscillator. Do not use high-frequency oscillation or scrub the model forcefully to avoid damaging the surface details of the model.
2.Remove the cleaning liquid with an air gun or hair dryer.
3.Remove most of the support materials before post-curing, and then remove the detailed supports and modify the surface after post-curing.
4.Adjust the corresponding post-curing time according to the selected post-curing method.
1.This product is for one-time use and cannot be reused.
2.Use only in well-ventilated areas, pay attention to air circulation during use,and take protective measures.
3.If it accidentally gets into the eyes, rinse immediately with clean water. If discomfort persists after rinsing, seek medical attention immediately.
4.If it accidentally gets on clothes, change clothes immediately, and clean the skin and clothes with soap and clean water immediately.
5.Do not let the resin come into contact with food. If accidentally swallowed,do not induce vomiting, keep resting, and seek medical attention in time.
6.Dispose of waste in accordance with local environmental regulations.
Please store the product in a cool place below 25 degrees, avoid exposure to sunlight.Ordinary visible light may cause resin polymerization and gelation.Do not place it inplaces exposed to sunlight, humidity, or corrosive gases.
