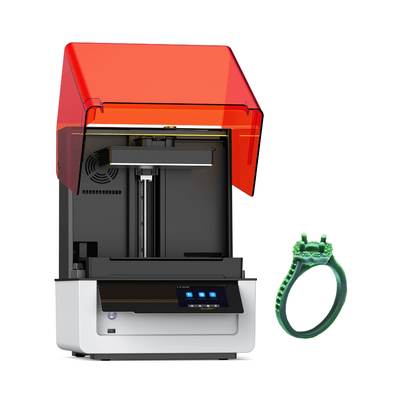

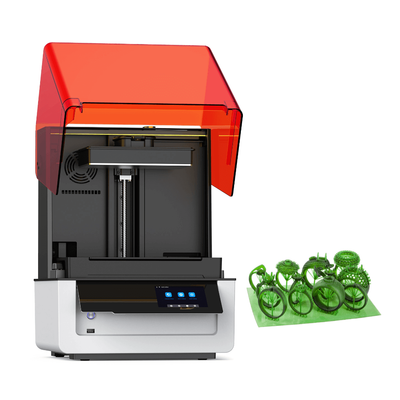

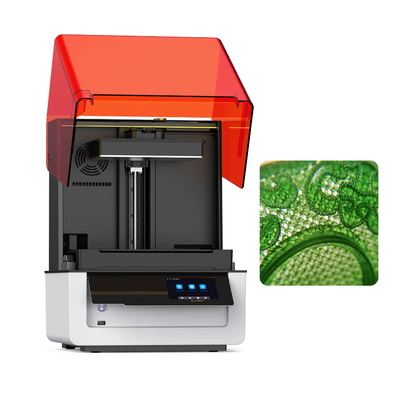

VNICI 02-LCD-A

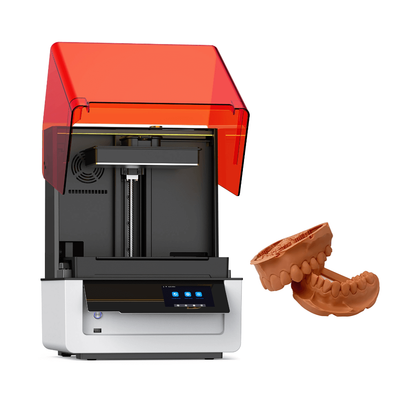

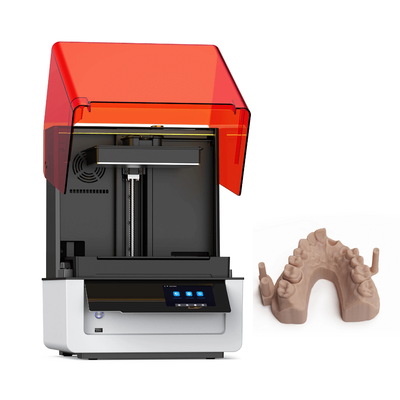

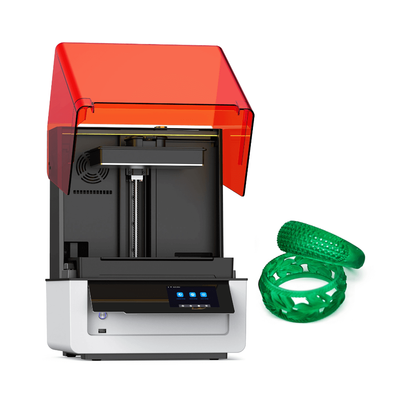

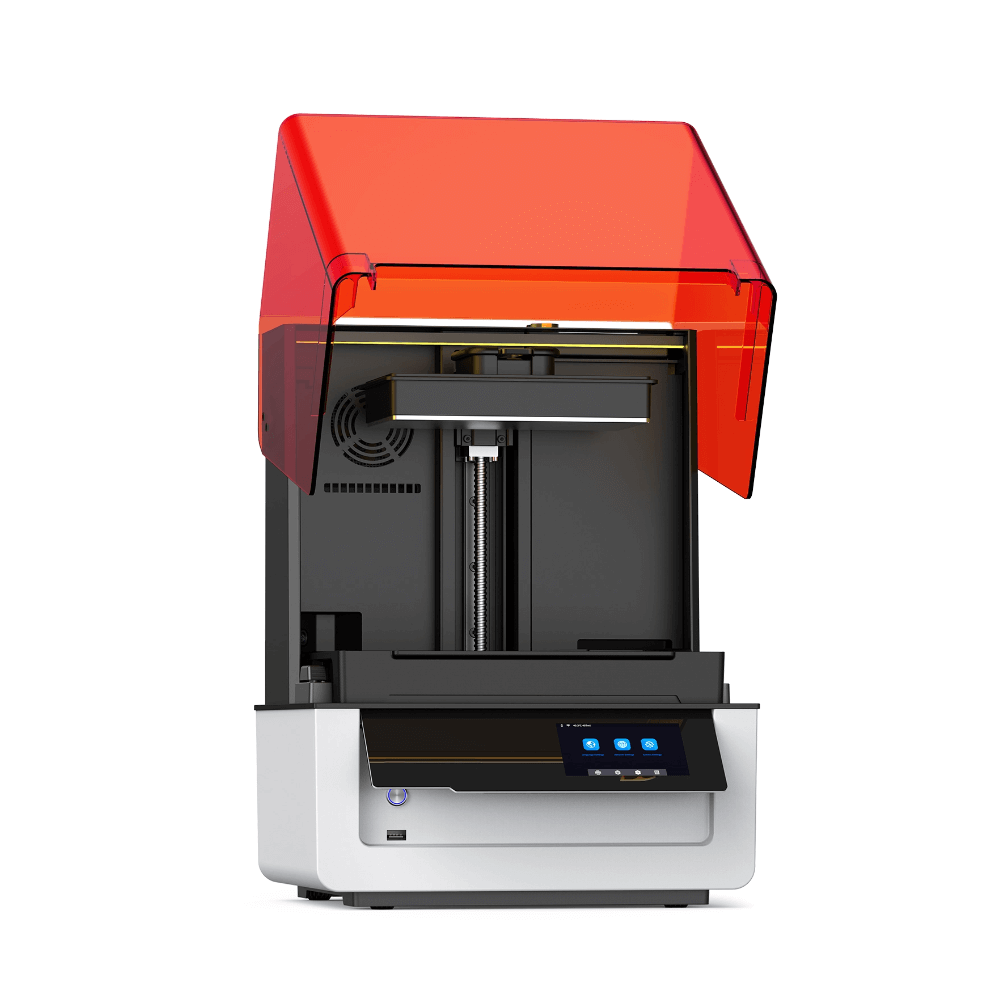

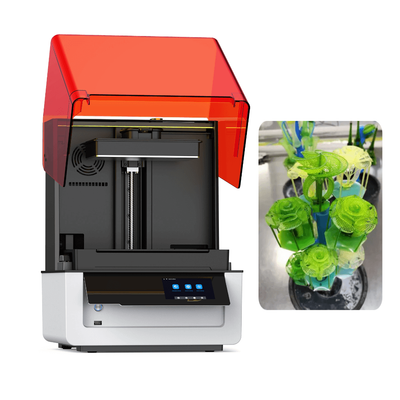

LCD 3D Printer 02-LCD-A

"Dental printing excellence | Consistent reliability | User-friendly operation, committed to becoming the trusted production tool for dental practices and laboratories."
The Vnici 02-LCD-A is a desktop LCD 3D printer launched by Vnici Digital, precisely targeted at the dental professional market. Rather than pursuing large-scale industrial manufacturing akin to industrial-grade SLA systems, it focuses on delivering a high-precision, highly stable, and user-friendly digital production solution for dental clinics and laboratories.

Featuring 16K ultra-high resolution, an automatic temperature control system, activated carbon filtration, and a suite of user-centric designs, it directly addresses the core clinical demands of dentistry for compact dimensions, exceptional precision, and environmental sustainability. Within Weiren's product portfolio, it serves as a specialised solution for vertical industries, empowering professional users with cost-effective technology.

Core positioning: A high-performance, user-friendly 3D printer specifically designed for the dental sector.

Videos of Desktop LCD 3D Printer 02-LCD-A

Key Features of Desktop LCD 3D Printer 02-LCD-A




Professional-Grade Print Quality


  • 16K ultra-high resolution (15120 x 6230): Pixel size 14*19μm ensures printed models possess exceptional detail and precision, meeting stringent dental requirements.
  • High light source uniformity (92+%): Zone calibration guarantees consistent light intensity across the build platform, significantly enhancing print success rates and consistency.
1



Optimised for Dental Applications

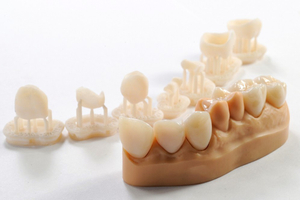

Dental-specific positioning, with application examples including:

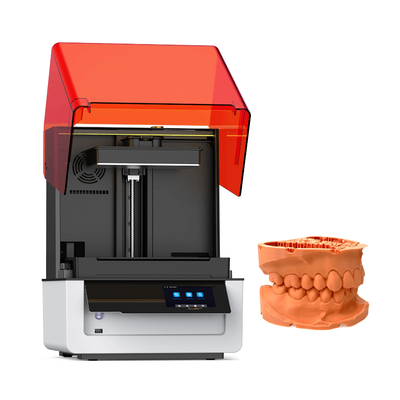

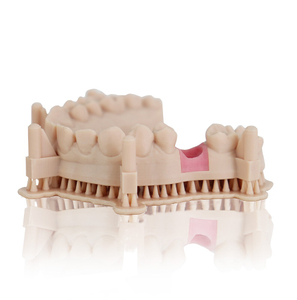

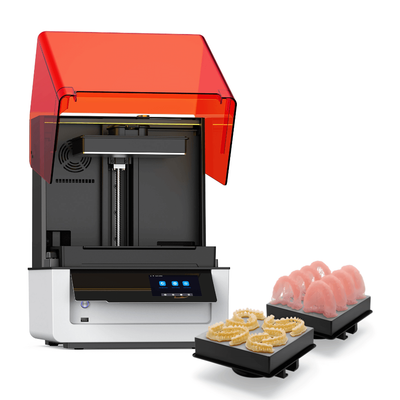

  • Temporary crowns, restoration models, orthodontic models

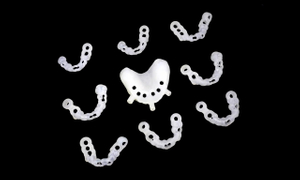

  • Crown casting, denture bases, surgical guides, gingival retraction membranes


2



Key Performance & Technology


  • 405nm proprietary matrix light source: Optimised for high-transparency resins and other common dental materials, overcoming printing limitations to ensure curing quality and detail.

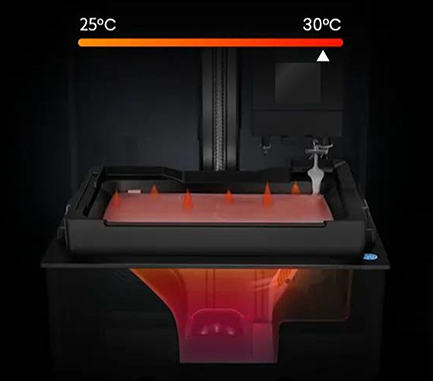

  • Automatic heating system: Operates reliably in low-temperature environments, rapidly heating and maintaining the build chamber at an optimal working temperature of 25°C-30°C to ensure stable resin performance.

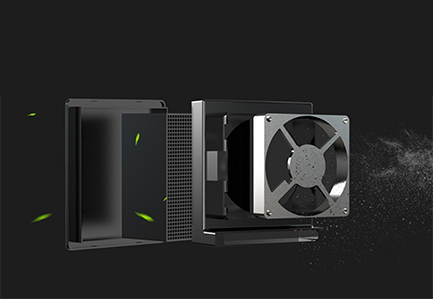

  • Large-capacity activated carbon filter: Effectively adsorbs odours generated during printing, safeguarding operator health and making it highly suitable for office or clinic environments.




User-Friendly Design

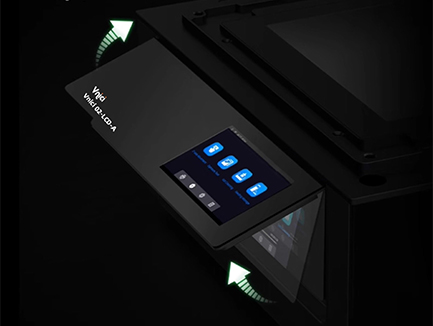

  • 90° rotatable touchscreen: Freely adjust viewing angles for intuitive and convenient operation.
  • Automatic feeding system: Features a 1200ml high-capacity resin tank, supporting extended printing sessions.
  • Side-mounted platform design: Facilitates draining residual resin from printed models post-printing, conserving material and maintaining environmental cleanliness.
  • Intelligent APP control: Supports WiFi/Ethernet connectivity for enhanced remote operation.
3
4



Industrial-Grade Structural Stability


Widened linear guides & ball screws: Resolve layer unevenness and Z-axis stuttering, ensuring sustained high-precision printing stability.


5

Technical Specifications of Desktop LCD 3D Printer 02-LCD-A

  Product Model Vnici 02-LCD-A
  Printing Technology LCD(MSLA) Supported File Formats STL,OBJ

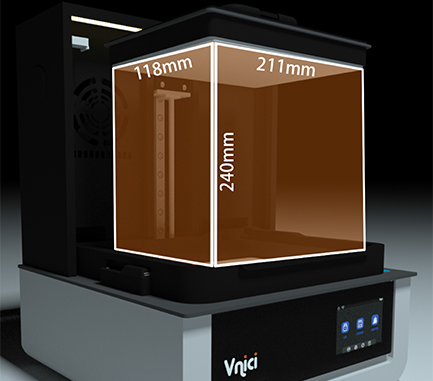

  Build Volume 211x118xH240 mm Screen Resolution 15120x6230
  Light Source Matrix light source Illumination Anti-glare LED lighting
  Wavelength 405 nm Automatic Heating Temperature 25℃-30℃
  Resin UV 405 nmResin Heating Power 120W
  Screen ,9.6-inch 16K monochrome LCD Resin Vat Capacity 800ml
  Air Purifier Activated carbon filter Auto-feeding Resin Tank Capacity 1200ml
  Pixel Size 14×19μm Feeding Method Automatic feeding
  Layer Thickness 0.01mm-0.15 mm Printing Power 130W
  Exposure Time 0.5–15 s/layer (depends on resin and layer thickness) Input Voltage 110V/220V
  Printing Tolerance +0.1mm(L≤100  mm)
±0.1%xL(L>100 mm)		 Supported Languages English, Chinese (Simplified), Chinese (Traditional), Japanese, German, French, Korean, Russian, Turkish"
  Screen Protection Film Tempered glass film Heating Method Fast

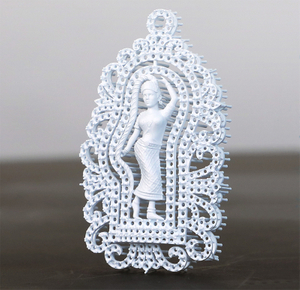

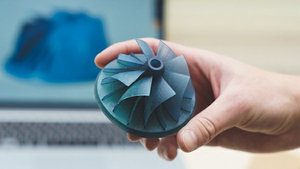

  Release Film ACF / nFEP film Application Industries Art, model making, engineering prototypes, small batch production, jewelry, dental, etc.
  Touch Screen 5-inch 90° rotatable capacitive screen Pre-heat Function Supported
  Slicing Software Chitubox / Lychee Z-axis Module Widened linear rails + ball screw
  Camera Built-in camera Product Dimensions 520×392x332 mm
  APP App smart control Packaging Dimensions 480x420x660 mm
  File Transfer USB drive, Wi-Fi, Ethernet Packaging Weight 24kg

Applications of Desktop LCD 3D Printer 02-LCD-A

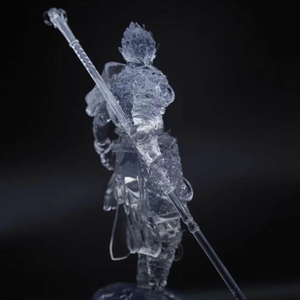

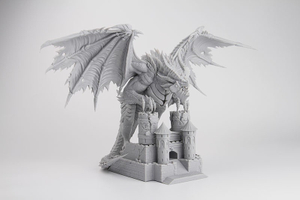

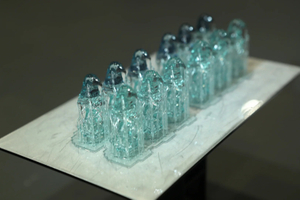

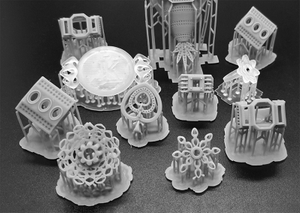

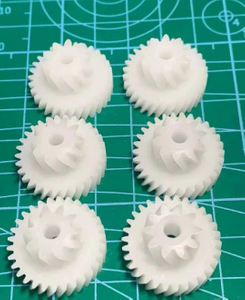

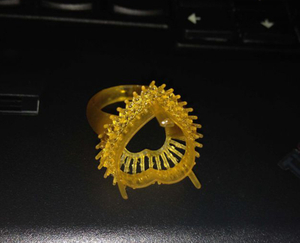

Sample Gallery of Desktop LCD 3D Printer 02-LCD-A

Why Choose VNICI As Your LCD 3D Printer Supplier?

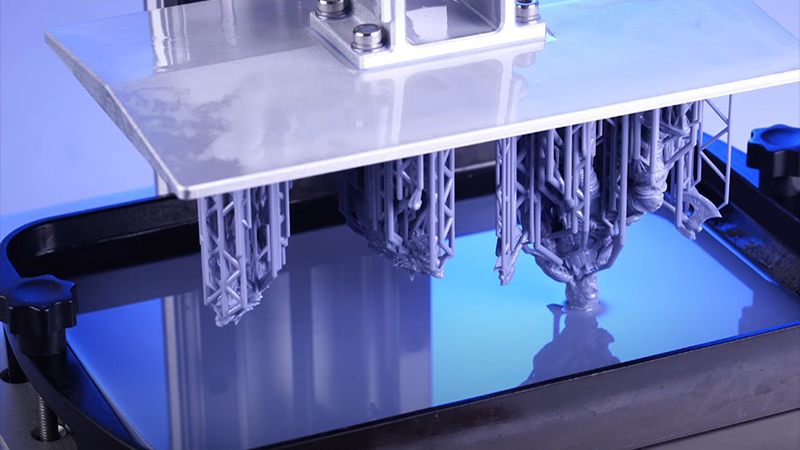

LCD-Printing2


Core Technology


Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.

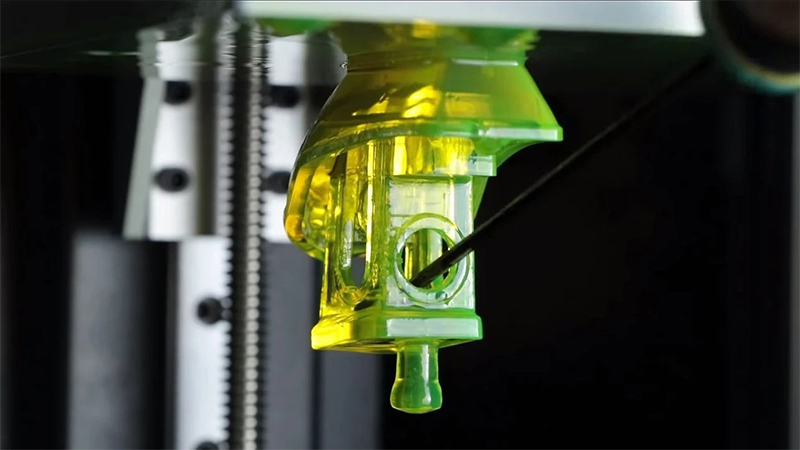

LCD-Printing3


Industrial Solutions


We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.


Good-after-sales-service


Good after-sales service


Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
Fast-Delivery


Fast Delivery


We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.
