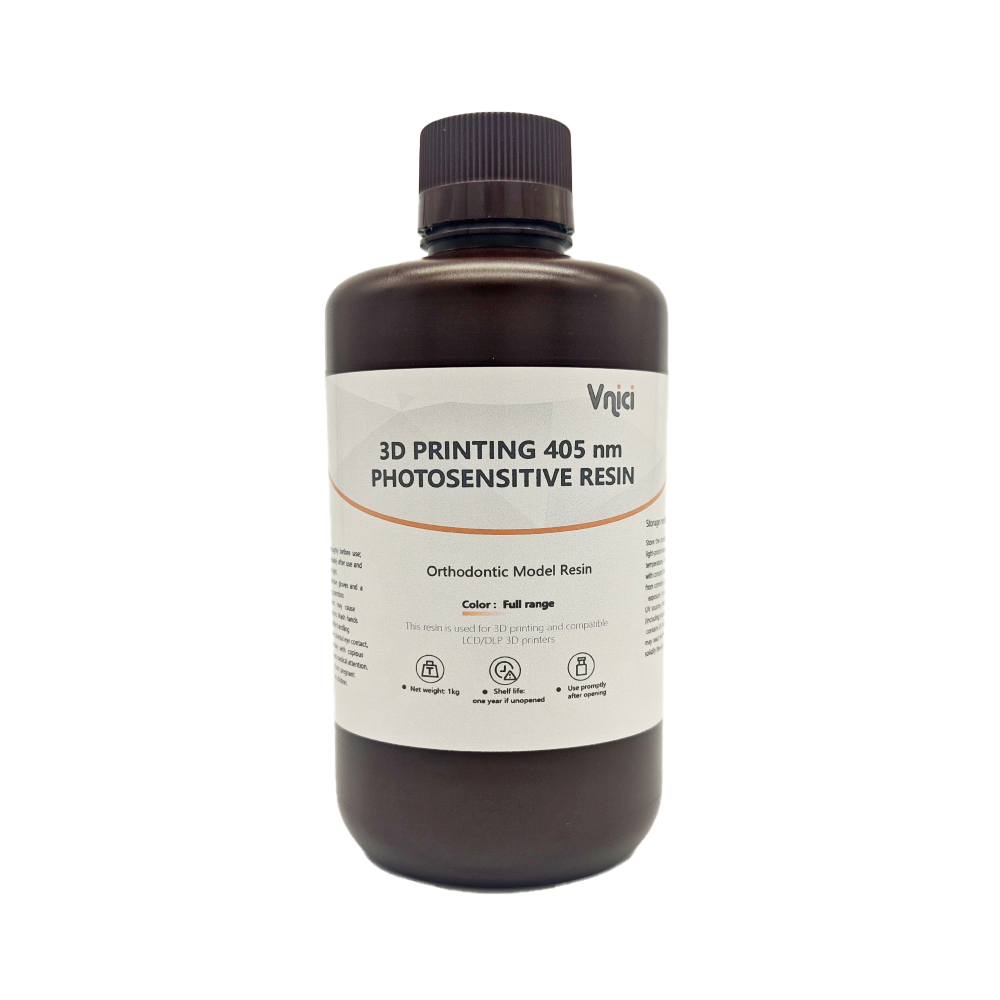

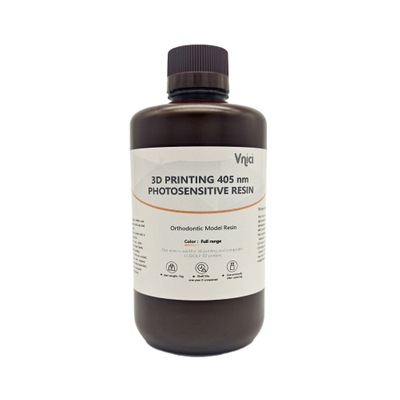

Orthodontic Model Resin (405nm UV) | WR-OM for 3D Printers

Beautifully Formed  |  Fine Texture  |  Wide Compatibility  |  Low Shrinkage
Vnici Orthodontic Model Resin (Model: WR-OM) is a 405nm UV-curable 3D printing dental resin, designed for low skin irritation and hypoallergenic use. It delivers beautifully formed, fine-textured orthodontic models with minimal shrinkage, ensuring high precision and dimensional stability. Boasting wide compatibility with LCD/DLP 3D printers, it combines excellent printability, reliable performance, and user-friendly safety, making it the ideal choice for dental professionals to create accurate, durable orthodontic models.
  • Biocompatibility
    Low skin irritation
  • hypoallergenic skin
    Hypoallergenic skin
  • low shrinkage
    Low shrinkage
  • temperature resistance
    High hardness
  • cost-effective
    Cost-effective
  • scratch-resistant surface
    Scratch-resistant surface
  • Short curing time
    Short curing time
  • high precision
    High precision

Key Features of 3D Printing Orthodontic Model Resin (405nm UV) | WR-OM

Applicable to CLD/DLP 3D Printers with Orthodontic Model Resin (405nm UV) | WR-OM

Material Parameters of 3D Printing Orthodontic Model Resin (405nm UV) | WR-OM

Flexural modulus 397.96 Mpa ±10%
Elongation at break 8.44% ±10%
Bending strength 21.72 MPa ±10%
Hardness (Shore D) 85 D
Density 1.05–1.28 g/cm³
Notched impact strength 74.3 j/m ±10%
Maximum pulling force 752N ±10%
Viscosity 250-350 MPa·s
Tensile strength 18.1 MPa ±10%
Instantaneous temperature 140°C
Tensile modulus 268.45 MPa ±10%
Test chamber temperature 23°C±2°C
Humidity in test room 50%RH±5%RH
Test paper test standard ASTM
Post-curing The test paper is post-cured for 2 minutes with 200mw/cm² 405nm in water.

405nm Orthodontic Model Resin Recommended Printing Parameters

Series Orthodontic Dental Model Resin
Model WR-OM
Color White / Deep Transparent Blue / Black / Grey / Flesh / Transparent Green / Transparent Red / Transparent, etc.
Recommended Bottom Expose Time (Light Intensity 3500~4500 μw/cm²) 25~30 s
Recommended Expose Time (Light Intensity 3500~4500 μw/cm²) 2.5~4.5 s
Bottom Lift Distance 6 mm
Lifting Distance 6 mm
Bottom Lift Speed 60 mm/min
Lift Speed 80 mm/min
Retract Speed 150 mm/min
Absorption Band 385~410 nm

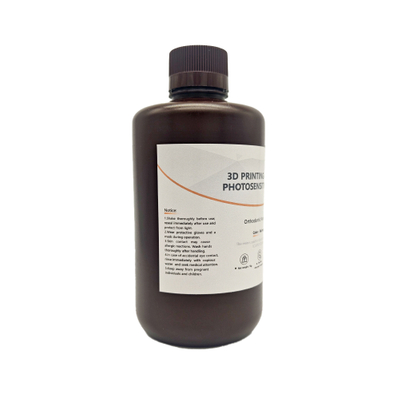

Wrap of 3D Printing Orthodontic Model Resin (405nm UV) | WR-OM

No inner plug, easy to open and close
Thickened bottle should not be sunken
Opaque Black Complete Blackout

Note: The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.

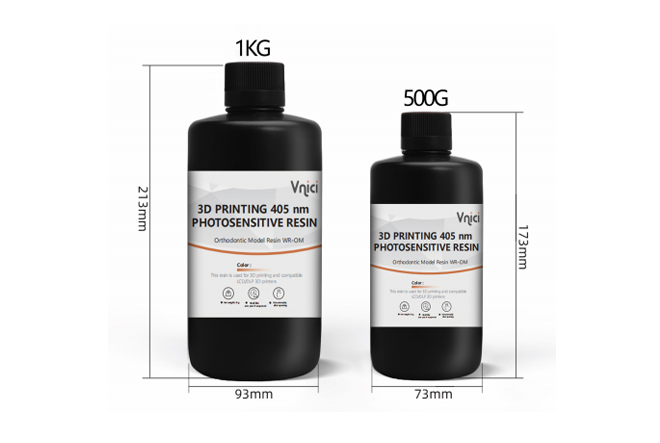

Wrap of 405nm Orthodontic Model Resin

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

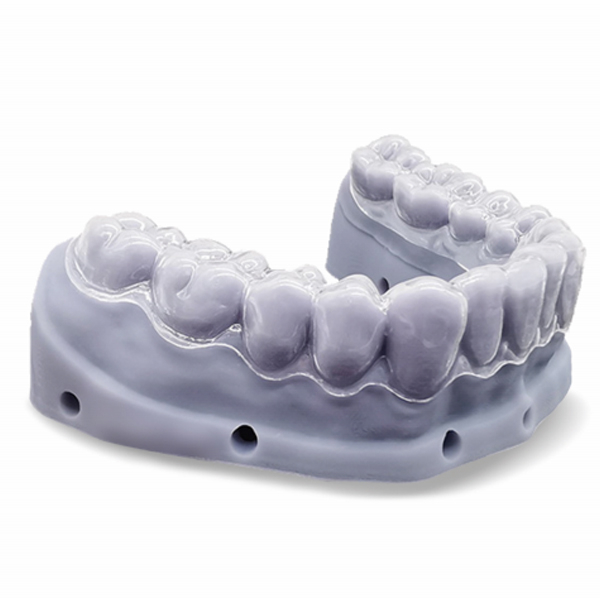

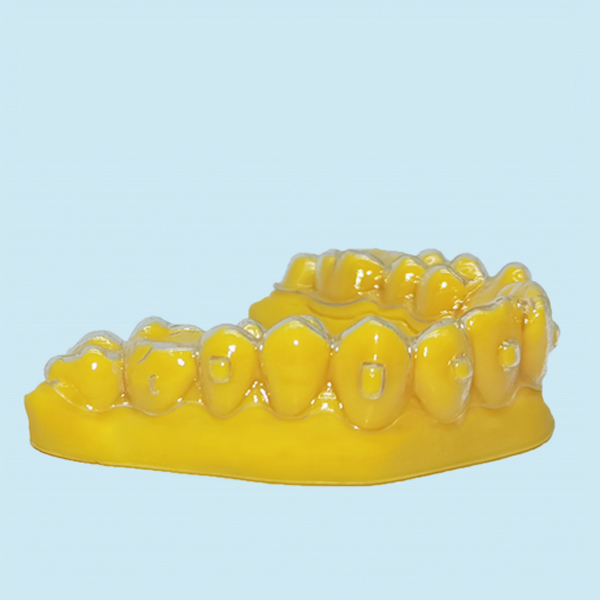

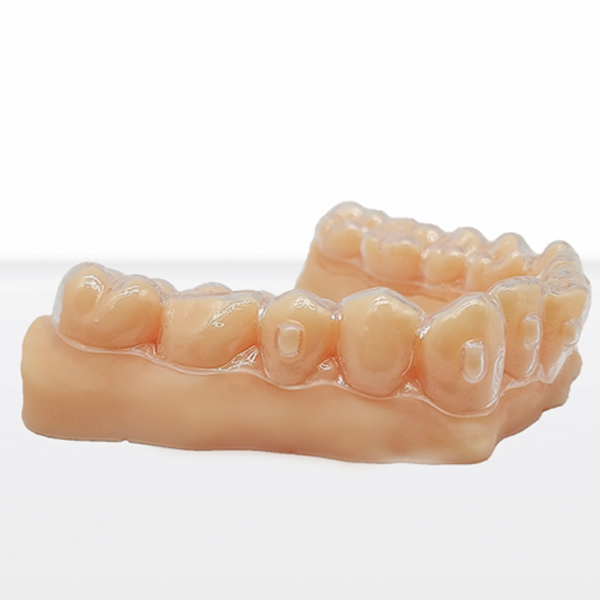

Model Display of 3D Printing Orthodontic Model Resin (405nm UV) | WR-OM

Instructions for Use of Materials

Aftertreatment and Cleaning   |   Safety Precautions   |   Correct Storage Method
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the face-free cleaning solution;
  3. Before post-curing, remove most of the support material, and after post-curing, remove the details of the support and modify the surface treatment;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
  1. This product is for one-time use and cannot be reused;
  2. Use only under good ventilation, please pay attention to air circulation and take protective measures when using;
  3. If you accidentally touch your eyes, please wash them with water immediately. If you still feel unwell after washing, please seek medical attention immediately;
  4. If you accidentally touch the clothes, please change them immediately, and wash the skin and clothes with soap and water immediately;
  5. Do not put the resin in contact with food, if swallowed accidentally, do not induce vomiting, keep resting, seek medical advice in time;
  6. Disposal of wastes shall be disposed of in accordance with the requirements of local environmental regulations.

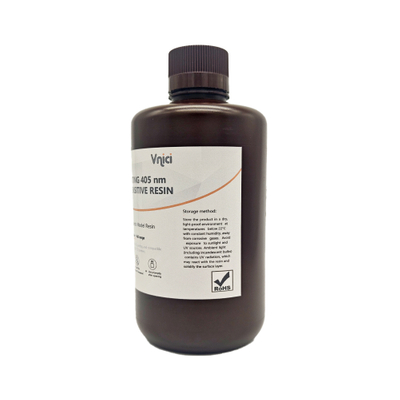

Please store the product in a cool place below 25 degrees and avoid exposure to sunlight. Generally, visible light may cause resin polymerization and gelation. Can not be placed in the sun, humidity, corrosive gas place.
