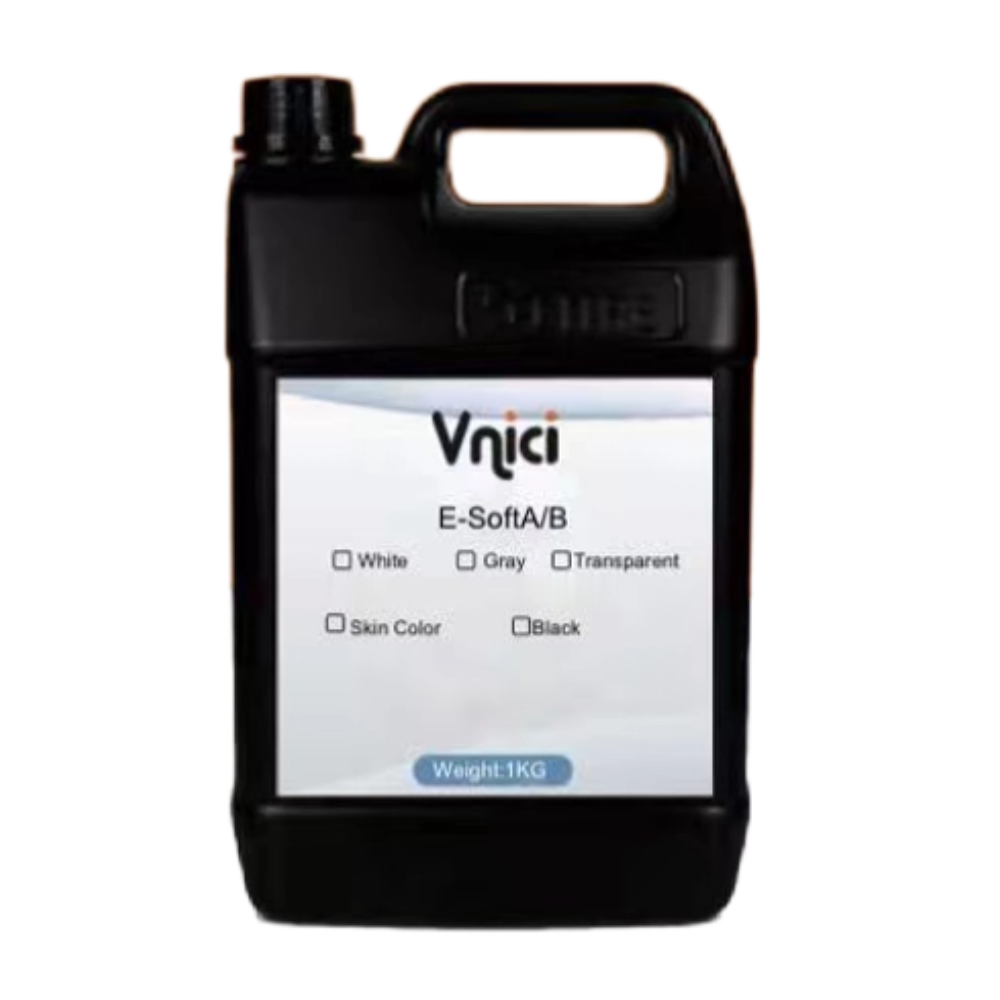

Dual Ingredient Resin

Dual Ingredient Resin (also known as dual-component, two-part, or hybrid resin) refers to a specialized class of photopolymer resins used in vat polymerization 3D printing (SLA, DLP, LCD/MSLA) that combines two distinct reactive ingredients or curing systems within a single formulation. Unlike traditional single-component resins (which rely solely on UV/light-initiated radical polymerization of acrylates/methacrylates), dual ingredient resins incorporate two complementary chemistries to achieve superior performance.

Technical Specifications of Dual Ingredient Resin

  Material properties Parameters
  Tensile strength, ISO 37 21.59 Pa
  Elongation, ISO 37 560%
  Elastic modulus, lSO 37 5.79 MPa
  Tear Resistance. ASTM D624 22.38kN/m
  Rebound performance, ISO 4662 35%
  Ross bending fatigue (notch), AST D105223°C,90°bending at 100 cycles per minute >250.000
  Glass transition temperature ASTM D4065 -17.98°℃
  Storage modulus, ASTM D4065 7.58MPa
  Loss factor (25°C), ASTM D4065 18.07MPa
  Toughness, Shore A. ASTM D2240 70A
  Density (resin after curing), ASTM D792 1.01g/cm³
  Density (liquid resin), ASTM D4052 0.98g/cm³
  Viscosity,40°C.ASTM D2196 1860cps
