Elastic Photosensitive Resin (405nm UV) for 3D Printers

Special for LCD/CLP 3D printing

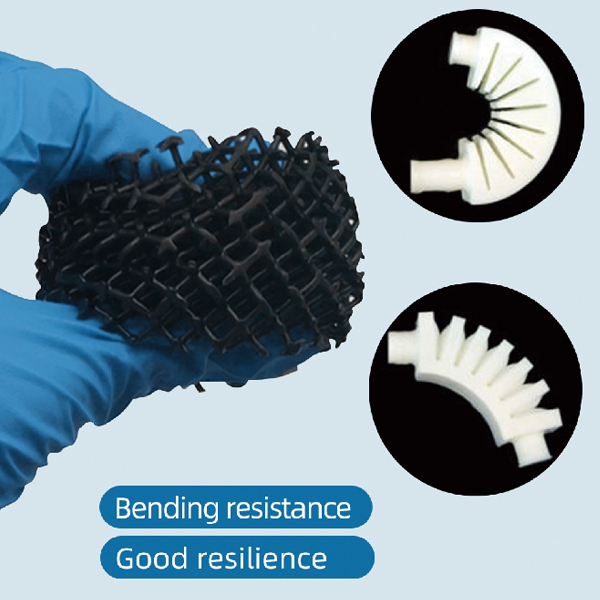

Elastic Photosensitive Resin WE-EL offers high elasticity, toughness, and tear resistance. It remains soft at low temperatures and supports bending, stretching, and compression, ideal for models, electronics, and education applications.

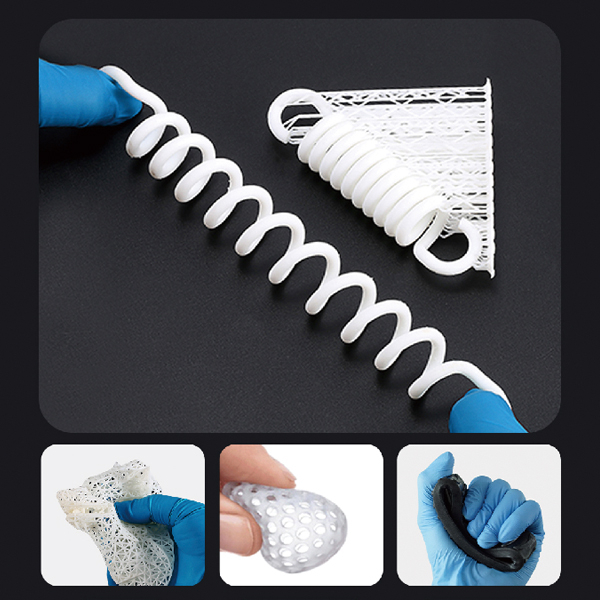

Key Features of 3D Printing with Elastic Photosensitive Resin

Applicable to CLD/DLP 3D Printers with Elastic Photosensitive Resin

Mechanical Properties of Elastic Photosensitive Resin

Maximum force (KGF) 2.8±10%
Tensile strength (MPa) 0.66±10%
Deformation at the point of maximum force (mm) 75.87±10%
Elongation at yield point (%) 41.26±10%
Elongation at break (%) 135.58±10%
Hardness (Shore A) 40~45
Tensile modulus (MPa) 0.598±10%

Recommended Printing Parameters of 405nm Elastic Photosensitive Resin

Series Elastic Resin (Basic Version)
Model WE-EL
Color White
Recommended Bottom Expose Time
(Light Intensity 3500~4500μw/cm²)
40~65S
Recommended Expose Time
(Light Intensity 3500~4500 μw/cm²)
6.5~11S
Bottom Lift Distance 12mm
Lifting Distance 12mm
Bottom Lift Speed 60mm/min
Lift Speed 60mm/min
Retract Speed 240mm/min
Absorption Band 385~410nm

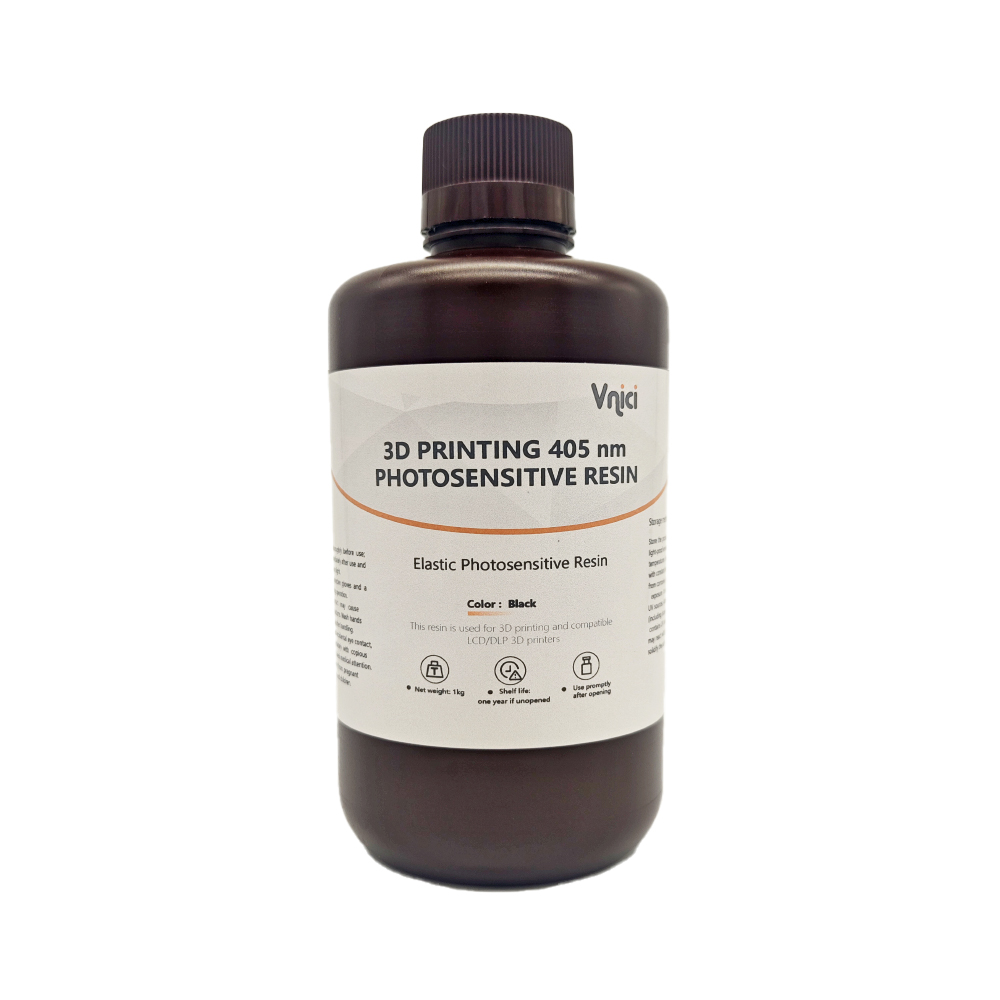

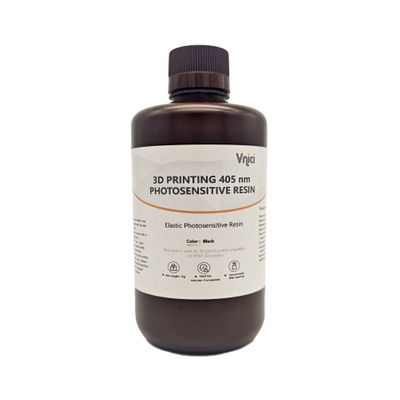

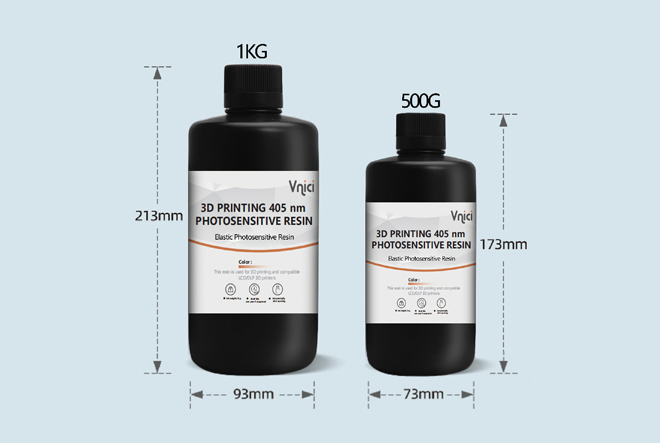

Wrap of 3D Printing Elastic Photosensitive Resin (405 nm UV) WE-EL

Note:The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.

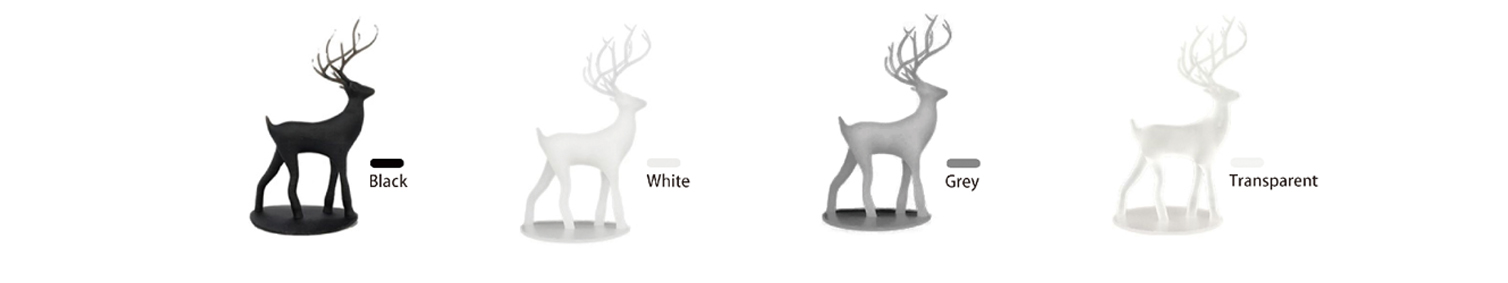

Color of 405 nm Elastic Photosensitive Resin

Including mainstream colors in the market, the molding color is pure, and the coloring effect in the later stage is good.
6 colors are available: black/white/grey/transparent
Tips: Due to different lighting or display settings, the product has different degrees of color difference, the final color please refer to the actual product.

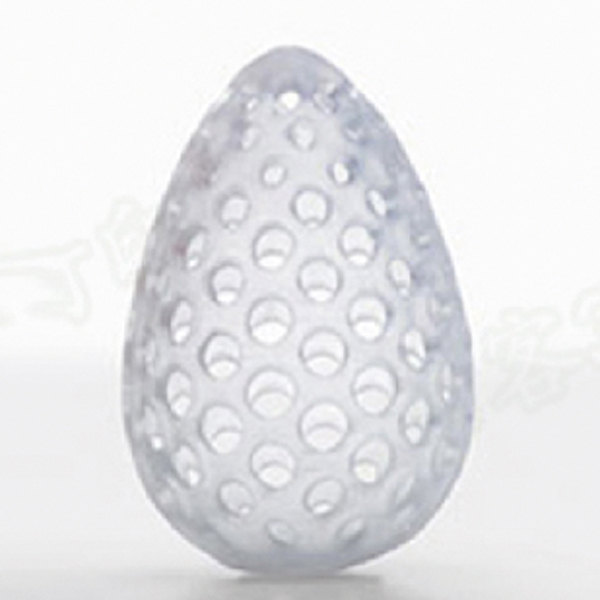

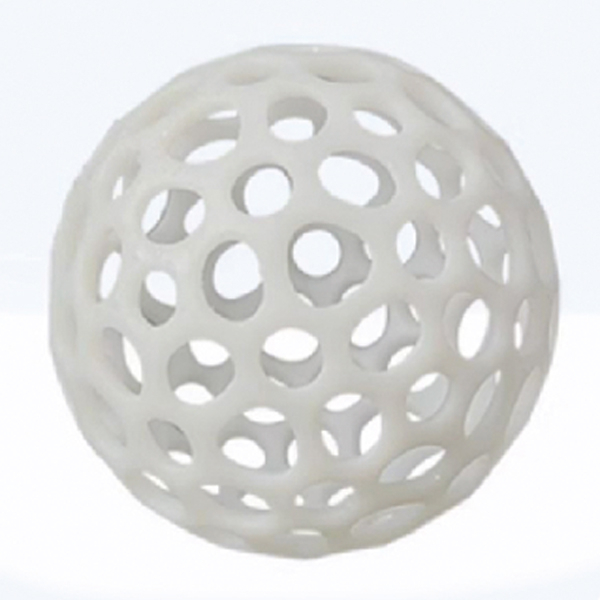

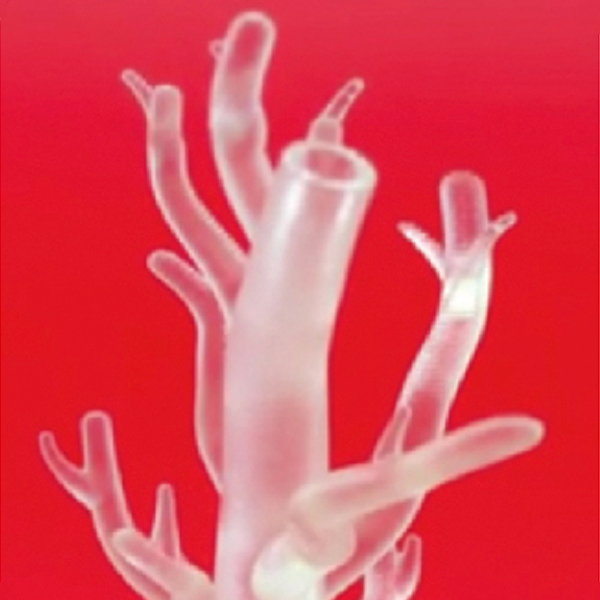

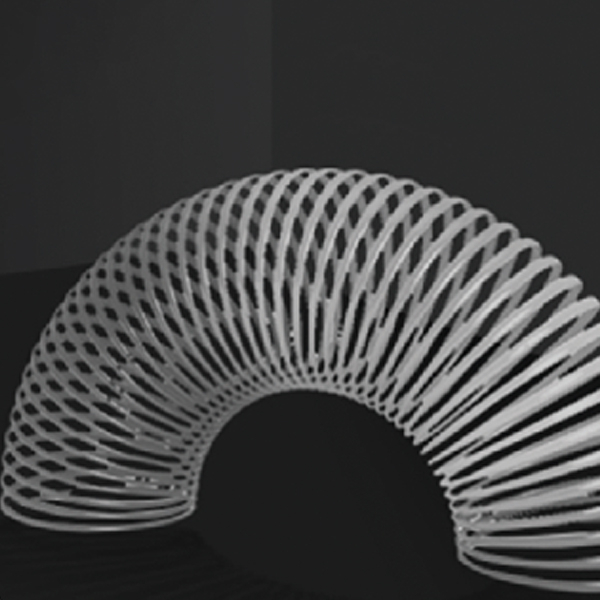

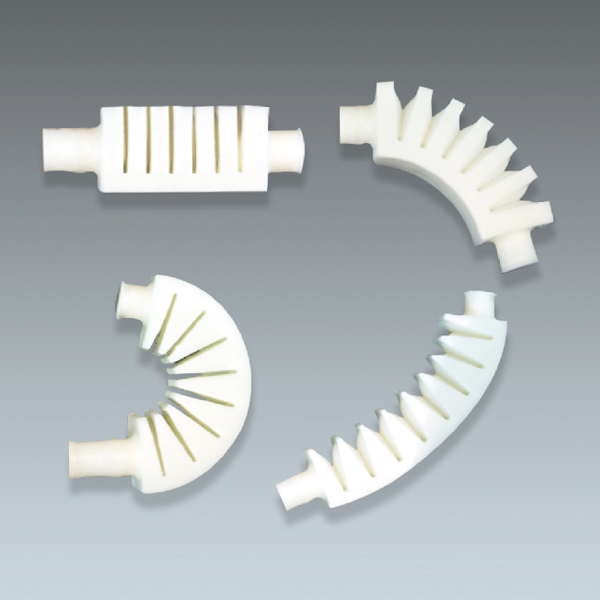

Model Display of 3D Printing Elastic Photosensitive Resin WE-EL

Application industries/fields: such as animation models, cultural creativity, prototype models, electronic appliances, education industry, etc.

Precautions

Precautions for use and storage.
  1. Please shake it evenly before using it, seal it in time after use, and keep it away from light
  2. Please wear protective equipment such as gloves and masks when using
  3. Wash hands thoroughly after operation
  4. Skin contact may cause allergies, if irritation or rash occurs, please seek medical attention in time
  5. If it gets into the eyes accidentally, please wash it off with plenty of water immediately and go to the doctor
  6. Do not let pregnant women and children touch this product
  7. Please dispose of this product container at an approved waste treatment plant
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the surface cleaning fluid;
  3. Remove most of the supports before post-curing, and remove the details of supports and modify the surface after post-curing;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
Please store the product in a dry and ventilated place without corrosive gas.Can not be placed in the sun, damp places.
