Casting Photosensitive Resin (405nm UV) for 3D Printers

Wax Content 30–40%  |  Excellent Flammability  |  Small Expansion  |  No Residue
Casting Photosensitive Resin is a high-performance 405nm UV-curable material specially developed for jewelry casting applications. With a wax content of 30–40%, it delivers excellent flammability for clean burnout, ensuring zero residue and smooth mold surfaces. The resin features low expansion during processing, helping maintain precise dimensions and fine details. Ideal for high-accuracy 3D printing, it enables reliable casting results with superior surface quality and minimal post-processing effort.
  • high precision
    High precision
  • good liquidity
    Good liquidity
  • Finished product has a smooth surface
    Finished product has a smooth surface
  • low shrinkage
    Low shrinkage
  • temperature resistance
    High temperature resistance

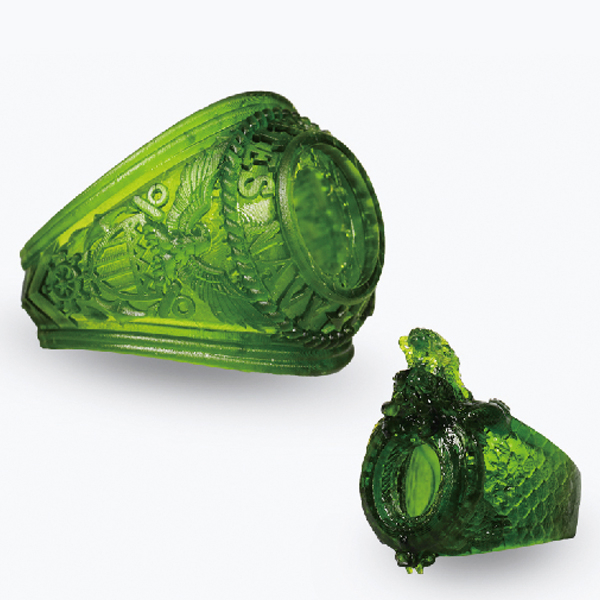

  • Suitable for a variety of metals
    Suitable for a variety of metals
  • Combustion without resihue
    Combustion without resihue
  • NO ash residue

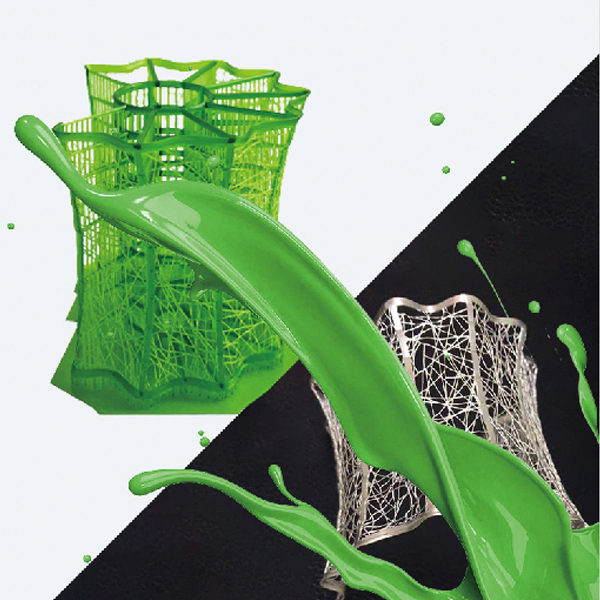

    Excellent flammability

Key Features of 3D Printing with Casting Photosensitive Resin (405nm UV) | WR-JC

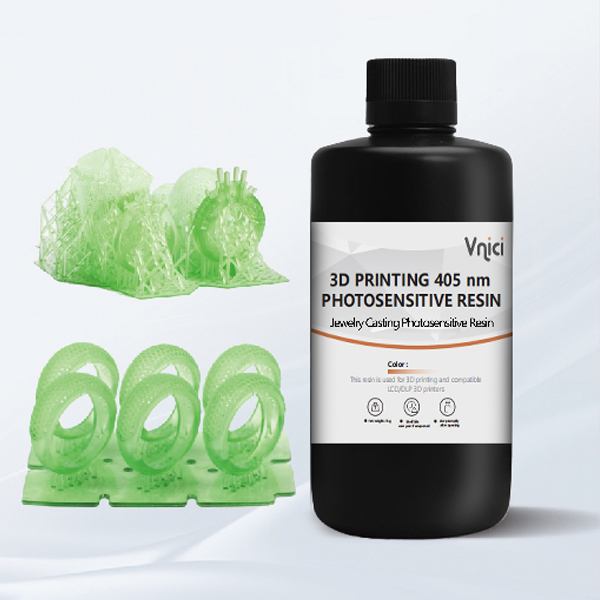

Applicable to CLD/DLP 3D Printers with Casting Photosensitive Resin (405nm UV) | WR-JC

Product Parameters of 3D Printing Casting Photosensitive Resin (405nm UV) | WR-JC

Maximum force (KGF) 88.6±10%
Tensile strength (MPA) 20.88±10%
Deformation of maximum force point (MM) 18.73±10%
Yield point elongation (%) 47.34±10%
Elongation at break (%) 32.96±10%
Maximum Flexural Strength (MPA) 13.75±10%
Flexural Modulus of Elasticity (MPA) 333.68±10%
Hardness (Shore D) 58~68
Impact strength, notched Izod, J/M 117.72±10%
Tensile modulus (MPA) 152.82±10%

Printing Parameters of 405 nm Casting Photosensitive Resin

Series Ordinary Casting Resin
Model WR-JC
Color Green
Recommended Bottom Expose Time(Light Intensity 3500~4500μw/cm²) 40~50S
Recommended Expose time(Light Intensity 3500~4500μw/cm²) 8~ 12S
Bottom Lift Distance 6mm
Lifting Distance 6mm
Bottom Lift Speed 60mm/min
Lift Speed 80mm/min
Retract Speed 150mm/min
Absorption Band 385~410nm

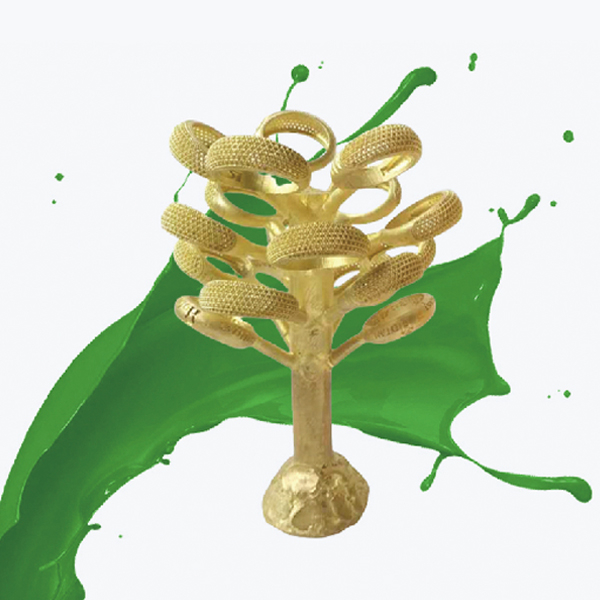

Digital Jewelry Process of 405 nm Casting Photosensitive Resin

Digital Jewelry Process

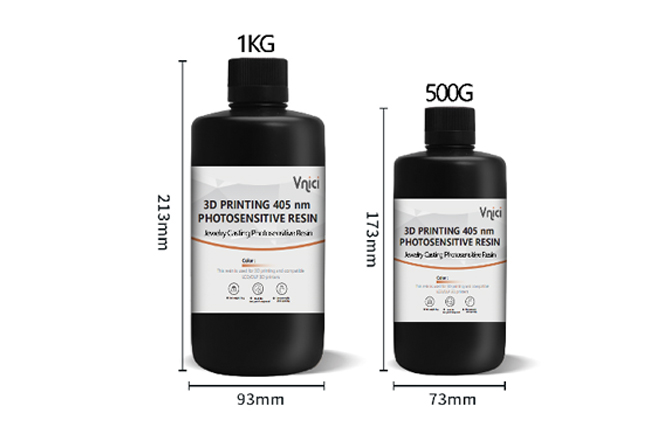

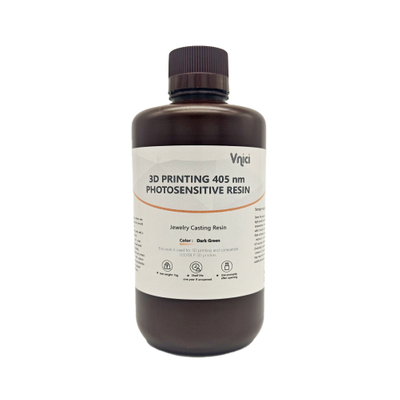

Wrap of 3D Printing Jewelry Casting Photosensitive Resin (405nm UV) | WR-JC

No inner plug, easy to open and close |Thickened bottle, not dented | Opaque black,completely blackout

Note: The packaging is for reference only and may vary slightl from batch to batch
warp of Jewelry Casting Photosensitive Resin

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

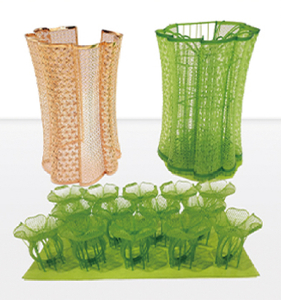

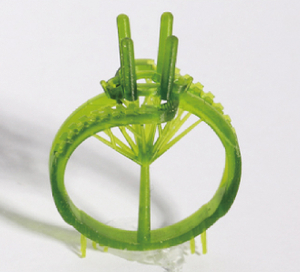

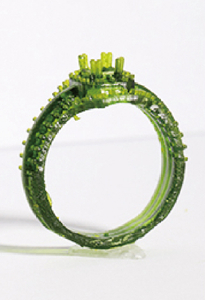

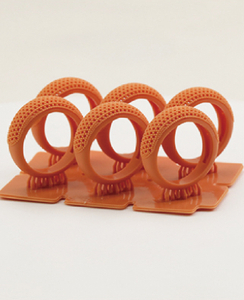

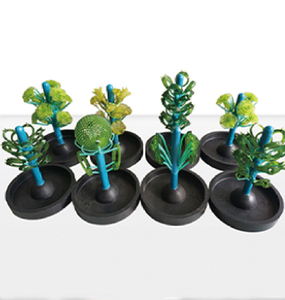

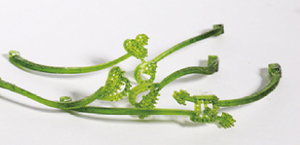

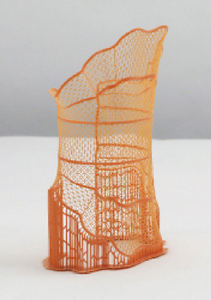

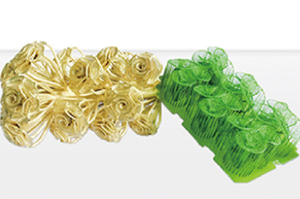

Model Display of 3D Printing Casting Photosensitive Resin (405nm UV) | WR-JC

Instructions for Use of Materials

Post-processing and cleaning | Safety precautions | Correct storage
  1. Please shake evenly before use, seal in time after use, and store in the dark
  2. Please wear protective gear such as gloves and masks when using
  3. Wash hands thoroughly after operation
  4. Contact with the skin may cause allergies, such as irritation or rash, please seek medical attention in time
  5. If it accidentally gets into your eyes, wash off immediately with plenty of water and seek medical attention
  6. Do not allow pregnant women and children to reach this product
  7. Please dispose of this product container at an approved waste treatment plant
  1. Clean the model with absolute ethanol or isopropanol with an ultrasonic shaker, do not shake the model with high frequency or brush the model vigorously to avoid damage to the surface details of the model;
  2. Remove the surface cleaning liquid with an air gun or hair dryer;
  3. Remove most of the support before post-curing, and remove and modify the surface treatment of detailed support after post-curing;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
Please store the product in a cool place below 25 °C to avoid exposure to the sun, generally visible light may cause resin polymerization gelatinization. Can not be placed in the sun, humid, corrosive gas place.
