3D Printing Red Wax Photosensitive Resin (405nm UV) | WE-CR

Suitable for LCD/CLP 3D printing | Smooth Surface

The Model Features Intricate Details | Few Layers

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Red Wax photosensitive Resin for 3D Printing

VNICI MATERIALS

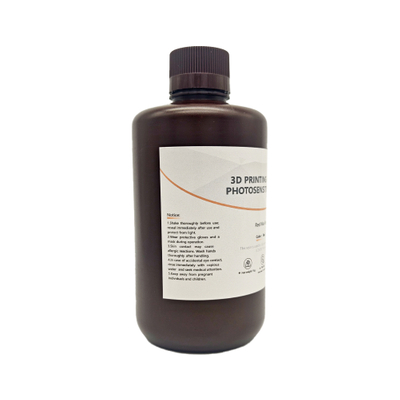

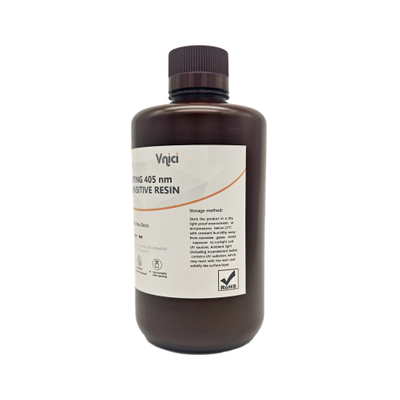

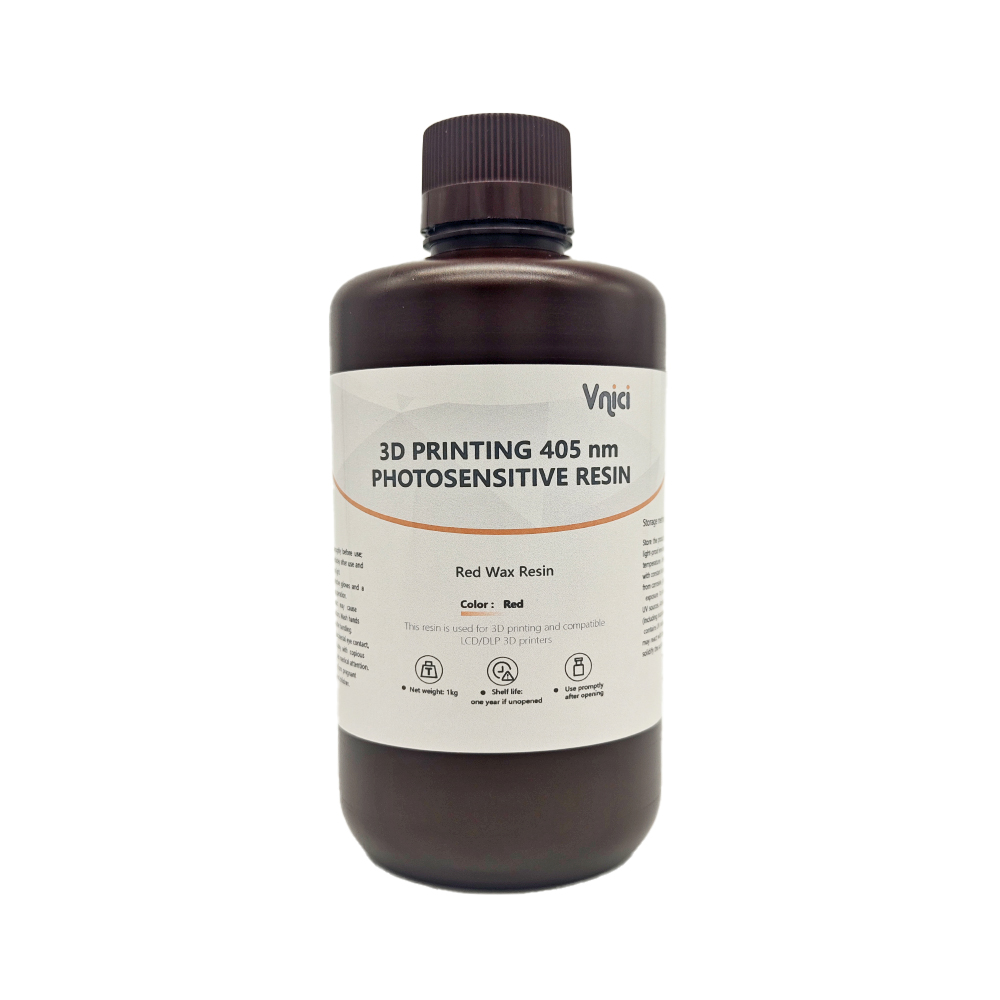

Red Wax Photosensitive Resin (405nm UV) for 3D Printers

Suitable for LCD/CLP 3D printing | Smooth Surface | Few Layers

Red Wax Photosensitive Resin is a 405nm high-precision casting resin with smooth surface finish and stable curing. Ideal for jewelry, handicrafts, footwear prototyping, teaching, and toy design, it ensures accurate and reliable printing results.

Request A Quick Quote

Smooth surface of finished product
High printing accuracy
Low shrinkage
Rigid and tough coexistence
Low odor
High print success rate

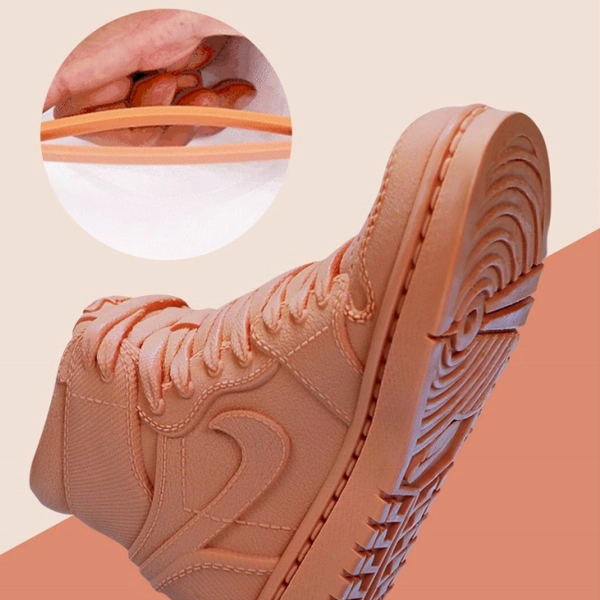

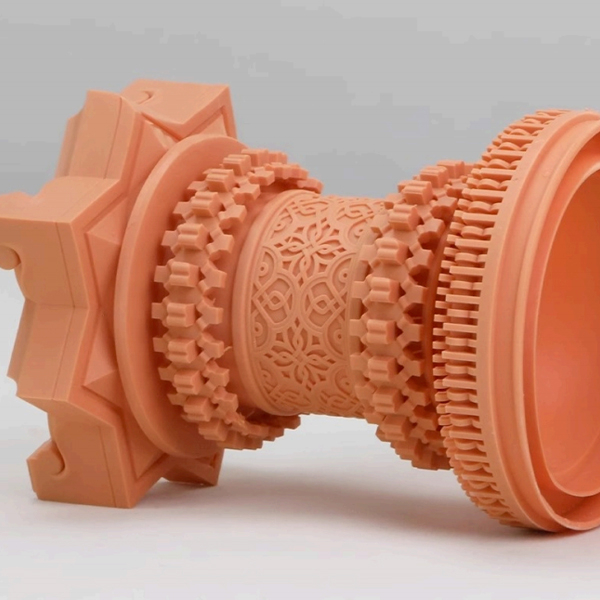

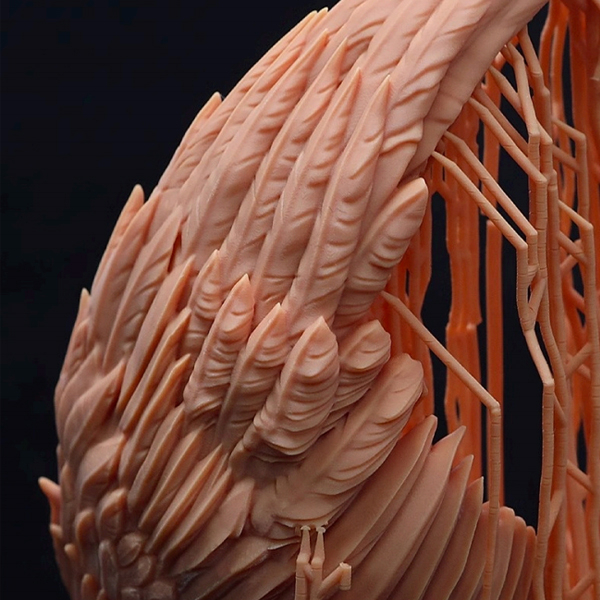

Key Features of 3D Printing with Red Wax Photosensitive Resin (405nm UV) | WE-CR

Matte texture

The details of the molded parts are high in reduction, the surface is matte, non-reflective, easy to color, easy to observe the details;Suitable for most 405nm light curing printers.
High resolution

Accuracy up to 0.02mm,This is the expressive force of the thickness of 1/2 hair filaments, and the tiny details of zui can be reflected.
Rigid and tough coexistence

The printed product is not easy to break, has both rigidity and toughness, and can withstand certain impact and vibration.
High precision and low shrinkage

The molding process does not deform,Low shrinkage and high precision ensure accurate model reduction.

Contact Our Support Team

Applicable to CLD/DLP 3D Printers with Rigid 8K Photosensitive Resin (405nm UV) | WE-RI

Parameters Of Red Wax Photosensitive Resin

Tensile strength (MPa)	37.9±10%
Yield point elongation (%)	6.21±10%
Flexural modulus of elasticity (MPa)	1188.91± 10%
Impact strength (j/m)	46±10%
Shore hardness (D)	82-86D
Viscosity (MPa.S)	150-300MPa.S
Density (g/cm³)	1.05-1.25g/cm³

Get The Latest Price Today

Recommended Printing Parameters of 405 nm Red Wax Resin

Series	Red Wax Resin
Model	WE-CR
Color	Ceramic / Red Wax
Recommended Bottom Expose Time (Light Intensity 3500–4500 μw/cm²)	25–35S (6.6-inch B&W Screen)
Recommended Expose Time (Light Intensity 3500–4500 μw/cm²)	2.5–3.5S (6.6-inch B&W Screen)
Bottom Lift Distance	6 mm
Lifting Distance	6 mm
Bottom Lift Speed	60 mm/min
Lift Speed	80 mm/min
Retract Speed	150 mm/min
Absorption Band	385–410 nm

Start A Project With Us

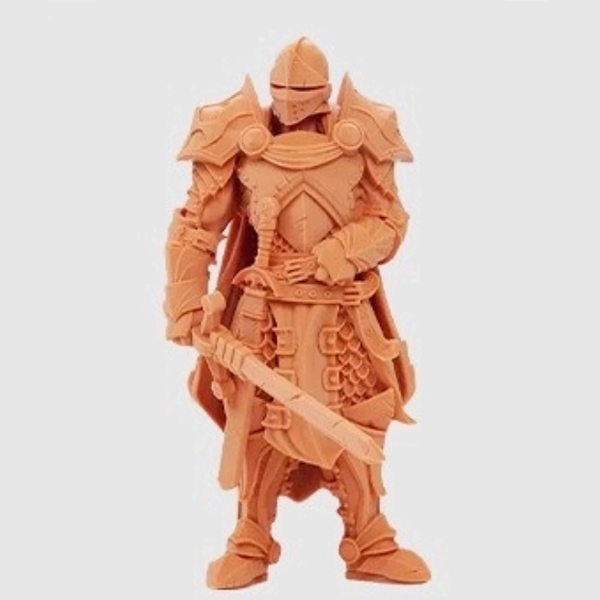

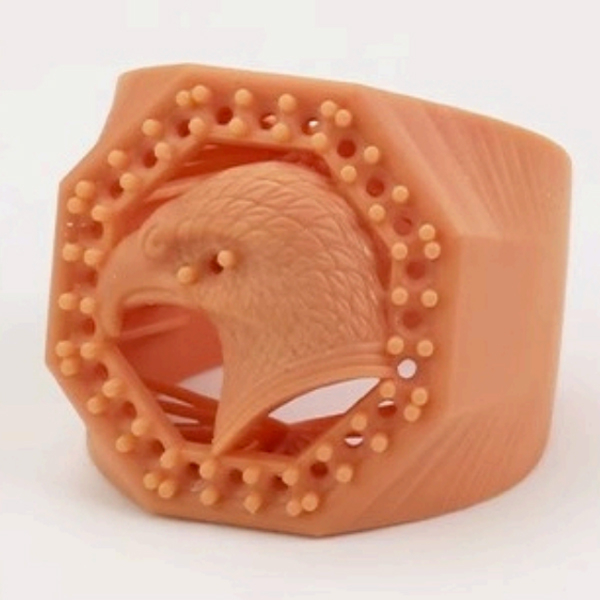

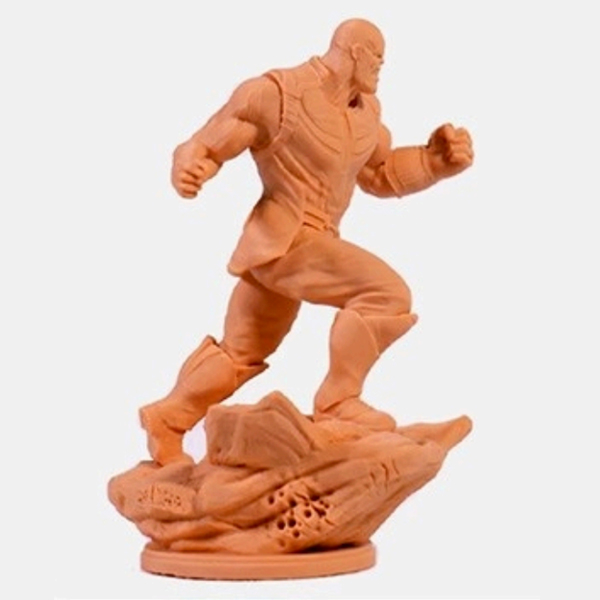

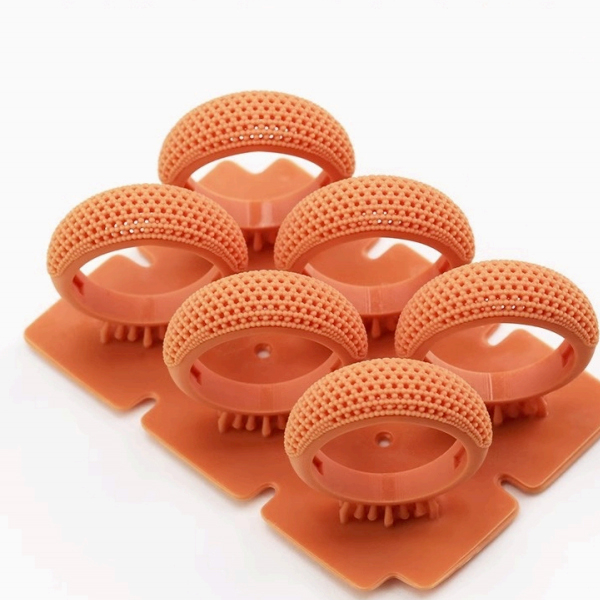

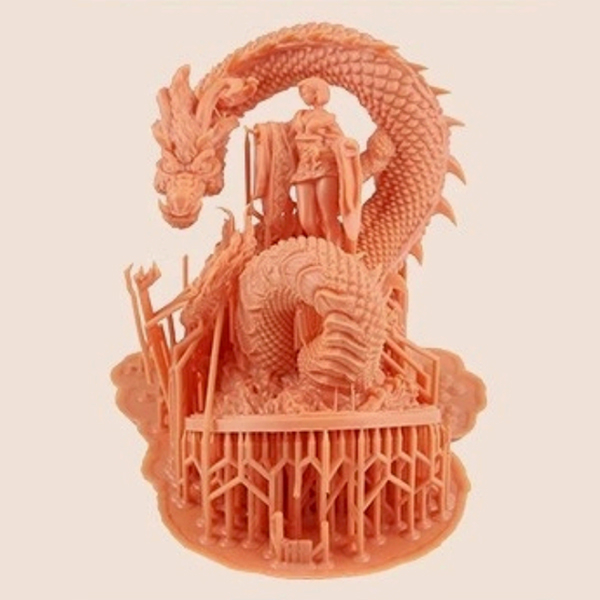

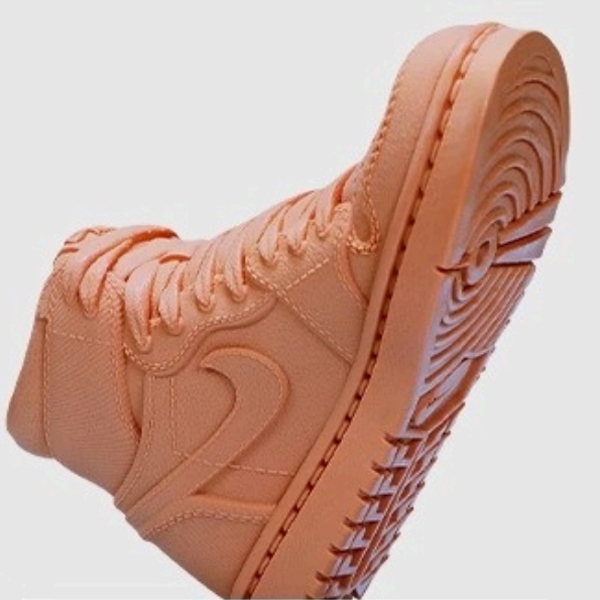

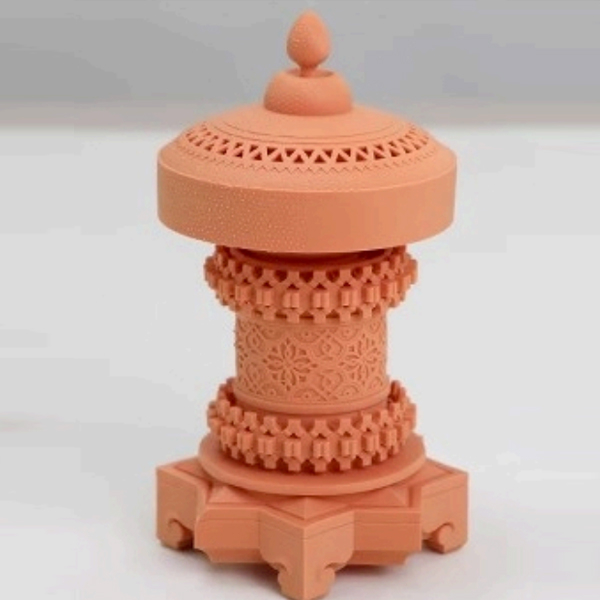

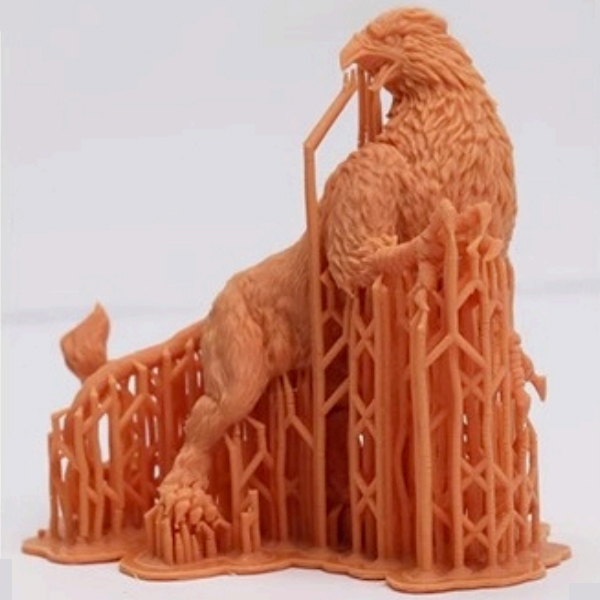

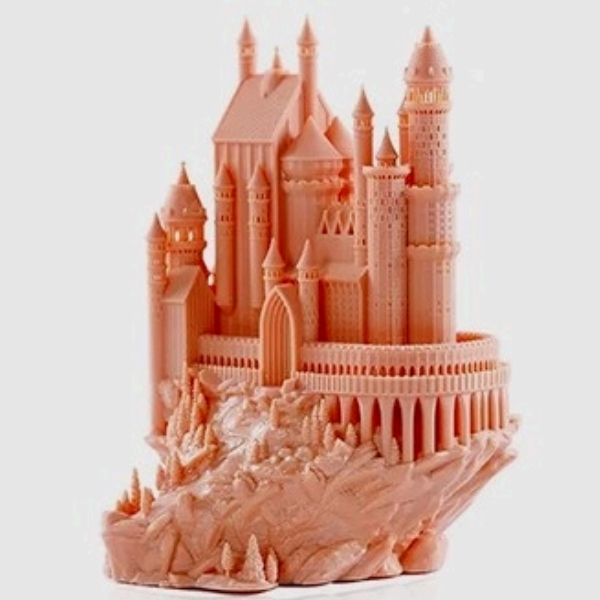

Model Display of 3D Printing Red Wax Photosensitive Resin (405nm UV) | WE-CR

Jewelry, animation handicraft, handicrafts, footwear, teaching and research, toy design, etc.
