Engineering-like Resin (405nm UV) | WE-EN for 3D Printers

Special for LCD/CLP 3D printing

405nm Engineering-Like Photosensitive Resin (WE-EN) delivers excellent ABS performance, high toughness, impact/wear resistance, low water absorption, and high precision, ideal for durable, custom 3D-printed industrial parts.

Request A Quick Quote

Excellent ABS performance
Impact resistance
Good toughness
High precision
Scratch resistance
Low water absorption

Key Features of 3D Printing with Engineering-like Resin (405nm UV) | WE-EN

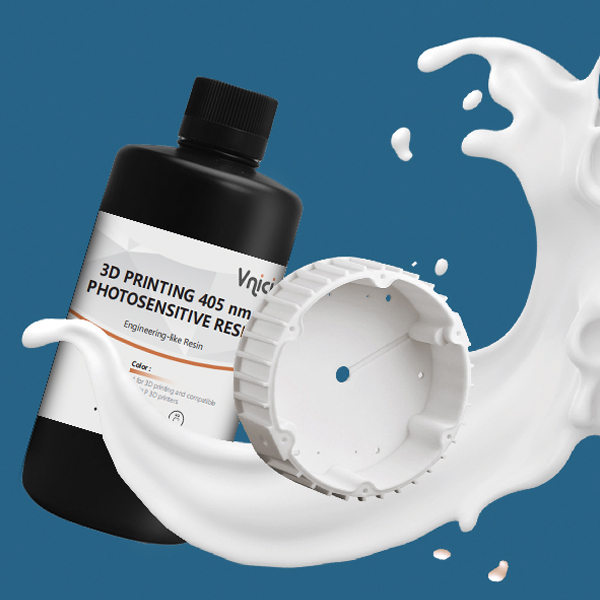

Application Industry/Field

Engineering resins have good mechanical properties and can be used for direct manufacturing of mass-customized products, electronics, digital products, construction machinery parts, 3D printed earphone prototypes, etc.

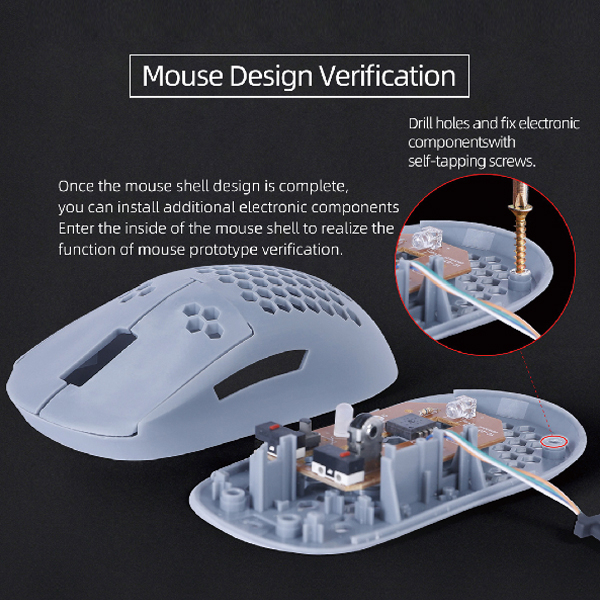

High surface hardness and wear resistance

Functional resins for strong, durable and precise parts.

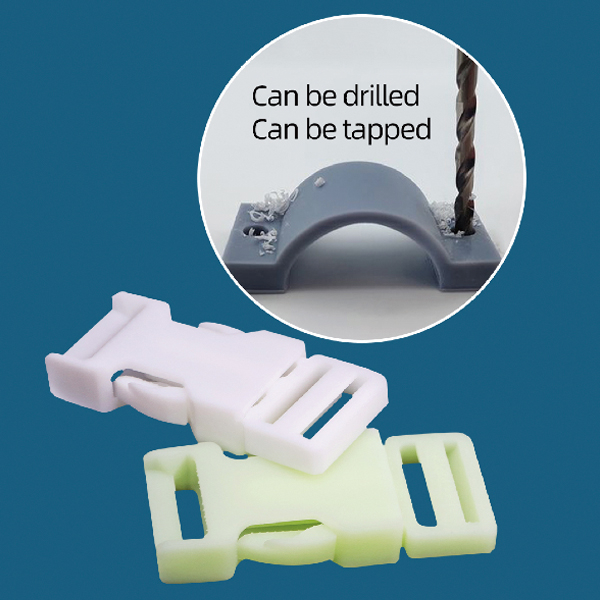

High precision

With fine surface quality, it can be tapped to assemble workpieces, etc.

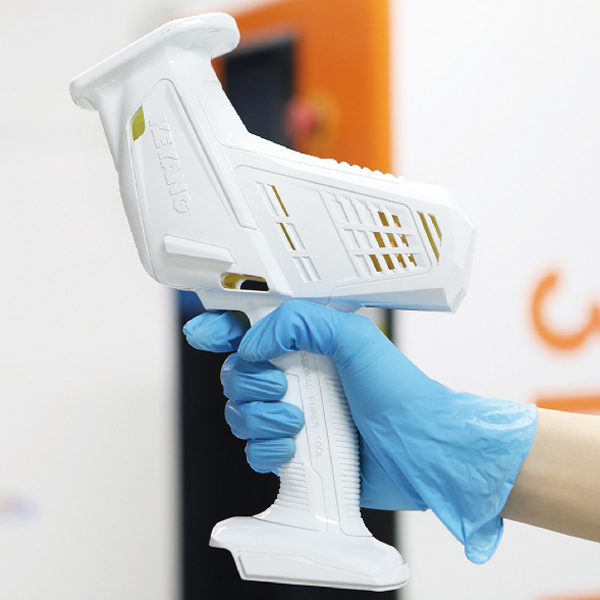

High toughness

High strength and precision, the finished product has good toughness, excellent molding and good impact resistance.

Contact Our Support Team

Applicable to CLD/DLP 3D Printers with Engineering-like Resin (405nm UV) | WE-EN

Mechanical Properties of Engineering-like Photosensitive Resin

Maximum force (KGF)	162.76±10%
Tensile strength (MPa)	38.36±10%
Deformation at the point of maximum force (mm)	6.80±10%
Elongation at yield point (%)	7.22±10%
Elongation at break (%)	35.44±10%
Maximum bending strength (MPa)	44.15±10%
Flexural modulus of elasticity (MPa)	979.24±10%
Hardness (Shore D)	80~88
Impact strength (j/m)	454.37±10%
Tensile modulus (MPa)	447.12±10%

Get The Latest Price Today

Recommended Printing Parameters of 405nm Engineering-Like Resin

Series	Engineering-Like Resin
Model	WE-EN
Color	White/Deep Transparent Blue/Black/Grey/Flesh/Transparent Green/Transparent Red/Transparent, etc.
Recommended Bottom Expose Time (Light Intensity 3500~4500μw/cm²)	25~30S
Recommended Expose time( Light Intensity 3500~4500μw/cm²)	2.5~3.5S
Bottom Lift Distance	6mm
Lifting Distance	6mm
Bottom Lift Speed	60mm/min
Lift Speed	80mm/min
Retract Speed	150mm/min
Absorption Band	385~410nm

Start an Order With Us

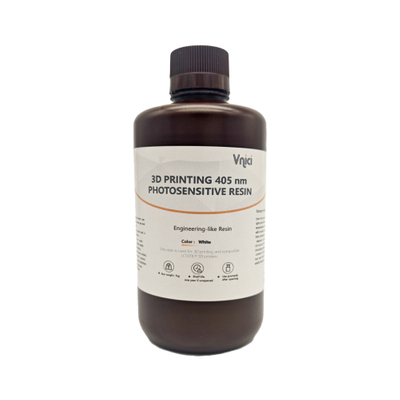

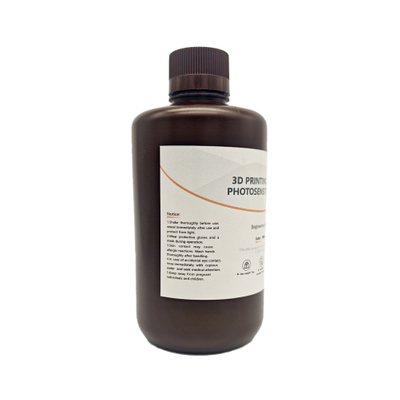

Wrap of 3D Printing Engineering-like Resin (405nm UV) | WE-EN

Note:The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.

Get Technical Support

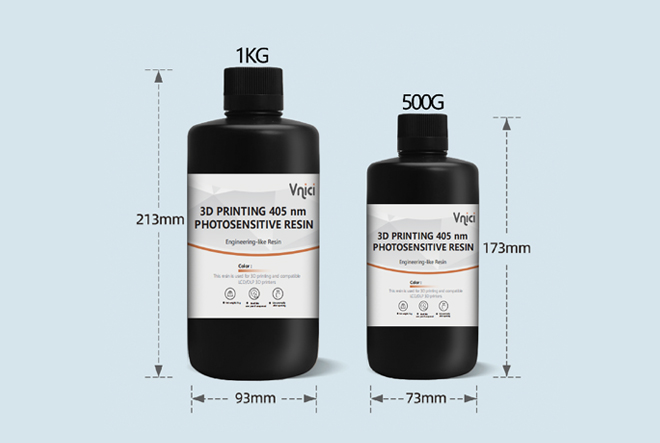

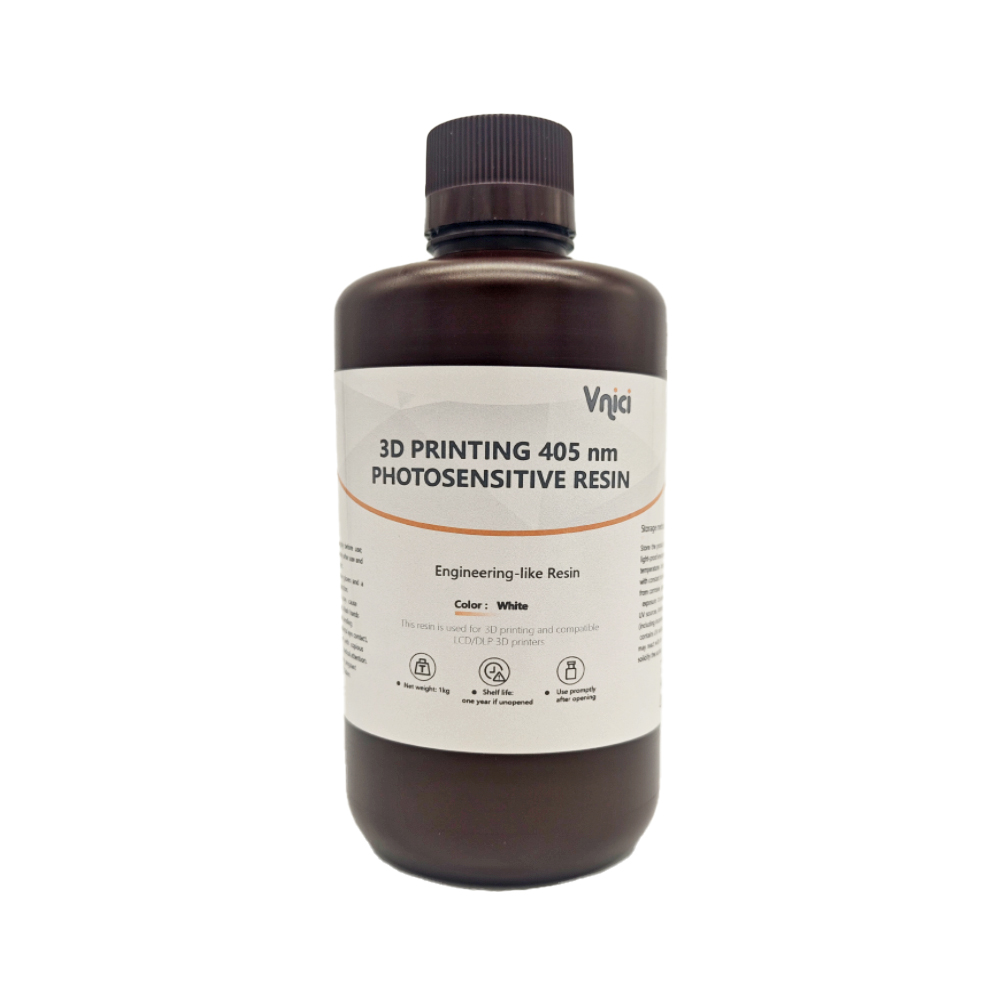

Wrap of Engineering-like Photosensitive Resin WE-EN

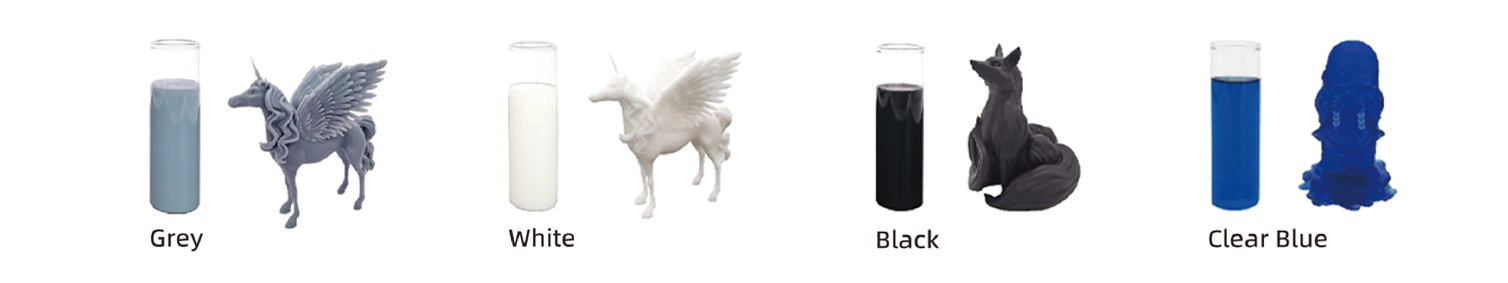

Color of 405 nm Engineering-like Photosensitive Resin

Including mainstream colors in the market, the molding color is pure, and the coloring effect in the later stage is good.

color Engineering-like Photosensitive Resin WE-EN

Tips: Due to different lighting or display settings, the product has different degrees of color difference, the final color please refer to the actual product.

Start A Project With Us

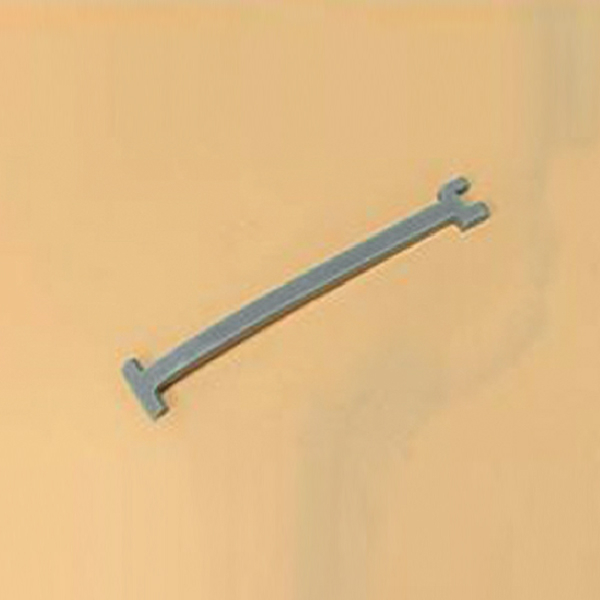

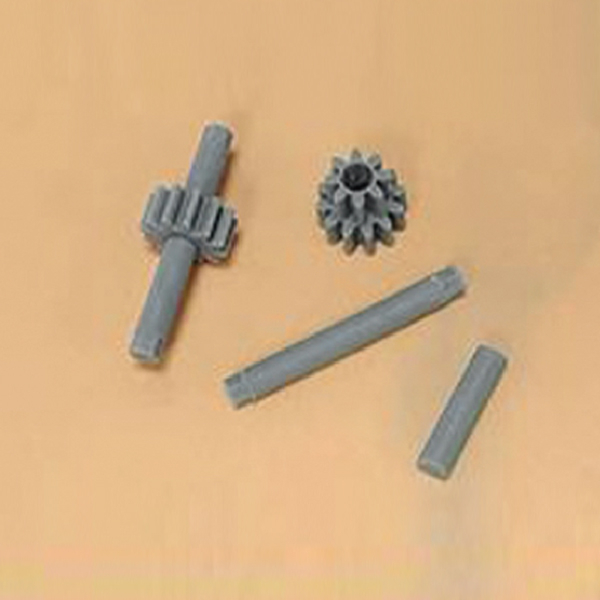

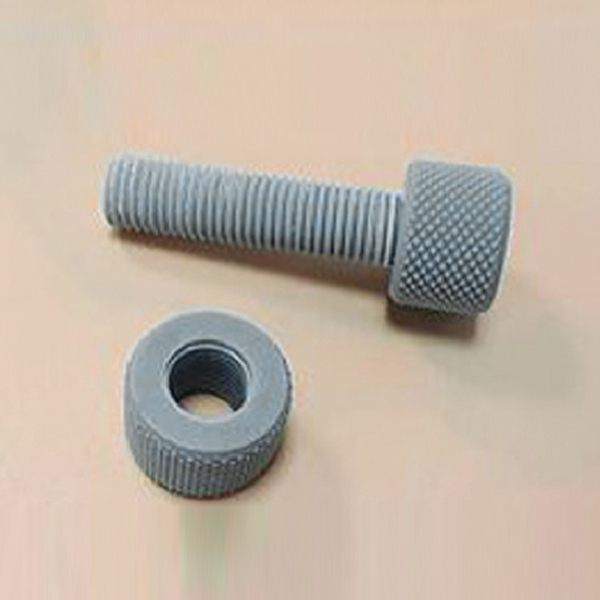

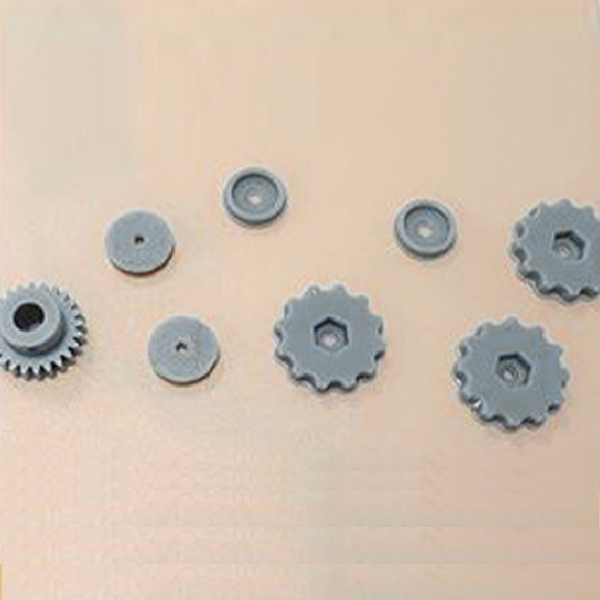

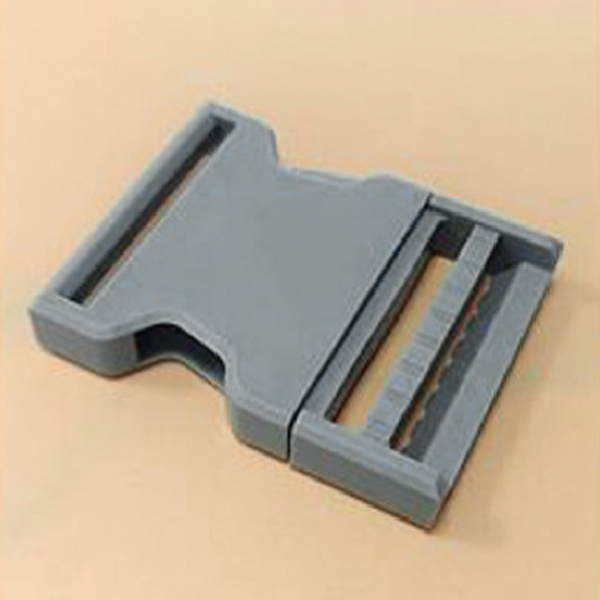

Model Display of 3D Printing Engineering-like Resin (405nm UV) | WE-EN

Electronics, digital products, construction machinery parts, 3D printed headset prototypes, etc.

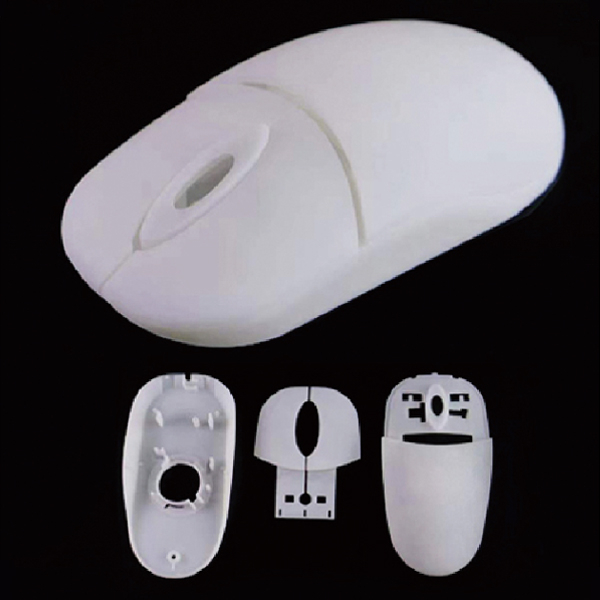

Electronics

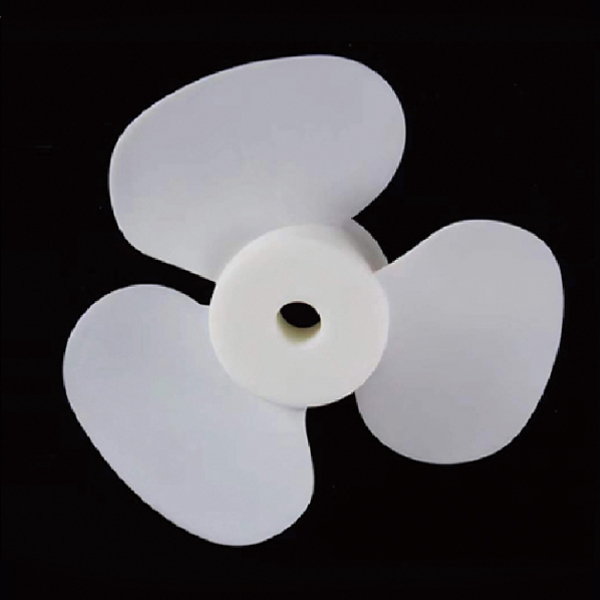

Digital Products
Construction Machinery Parts

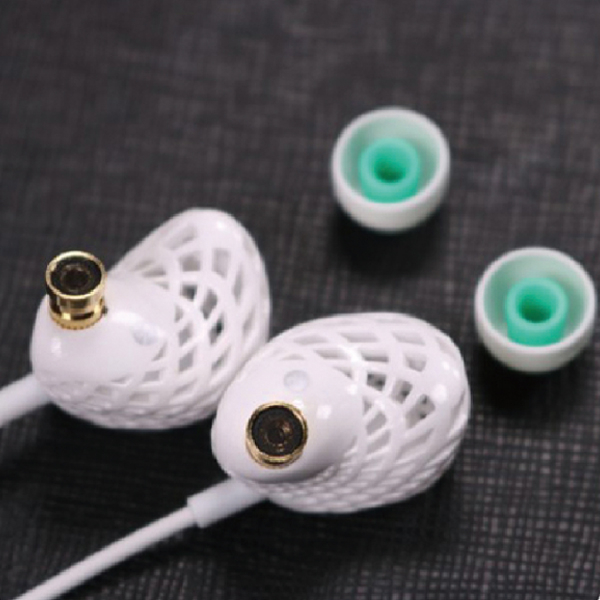

Headset Prototypes

Send Us Your Inquiry Today

Precautions

Precautions for use and storage.

Safety Precautions

Please shake it evenly before using it, seal it in time after use, and keep it away from light
Please wear protective equipment such as gloves and masks when using
Wash hands thoroughly after operation
Skin contact may cause allergies, if irritation or rash occurs, please seek medical attention in time
If it gets into the eyes accidentally, please wash it off with plenty of water immediately and go to the doctor
Do not let pregnant women and children touch this product
Please dispose of this product container at an approved waste treatment plant

Post-Processing And Cleaning

Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
Use an air gun or hair dryer to remove the surface cleaning fluid;
Remove most of the supports before post-curing, and remove the details of supports and modify the surface after post-curing;
Adjust the corresponding post-curing time according to the selected post-curing.

Storage Method

Please store the product in a dry and ventilated place without corrosive gas.Can not be placed in the sun, damp places.
