Washed Low Odor Photosensitive Resin (405nm UV) for 3D Printers

Special for LCD/CLP 3D printing | New Experience Of Washing Resin

Washed Low Odor Photosensitive Resin delivers high tenacity, low shrinkage, and easy water cleaning. With minimal odor, clear print details, and easy coloring, it’s ideal for LCD/DLP 3D printing of models, crafts, and industrial parts.

Request A Quick Quote

Good toughness and high strength

Not easy to brittle fracture without deformation
Low odor

No irritating smell
Washing is clean

Clear print details
Low shrinkage

Print model without cracking

Key Features of 3D Printing with Washed Low Odor Photosensitive Resin

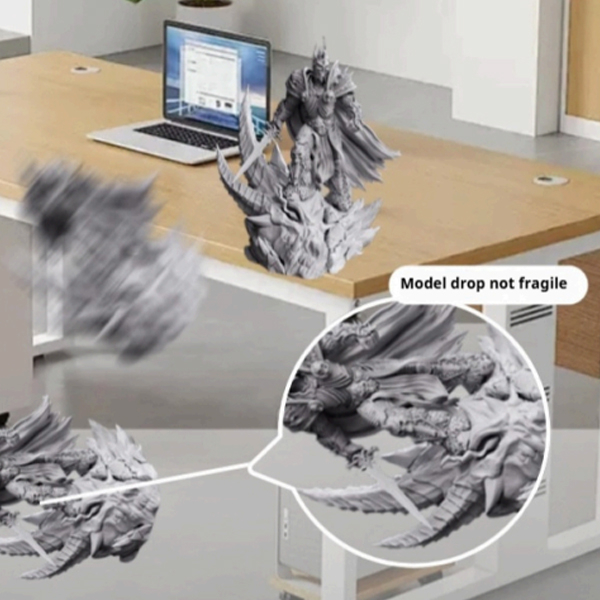

Product characteristics

High tenacity and good strengthThe printed model is not easy to break, and the printed structure is not easy to deform.

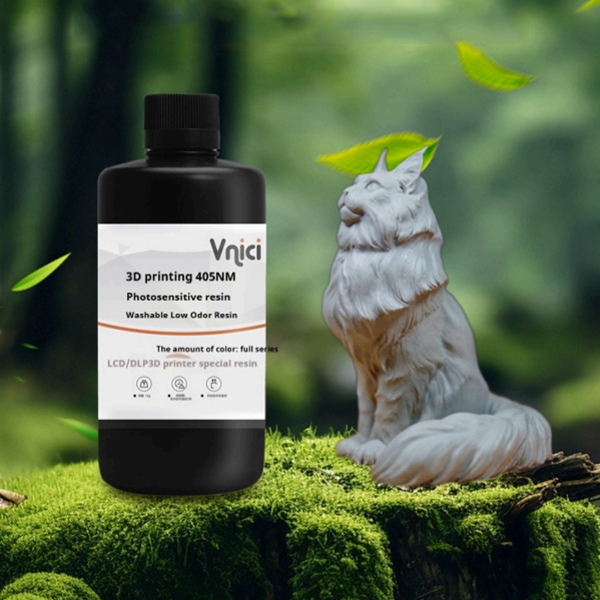

Low odor, peace of mind printing

Light odor reduces discomfort to people sensitive to odors Create a more comfortable printing environment

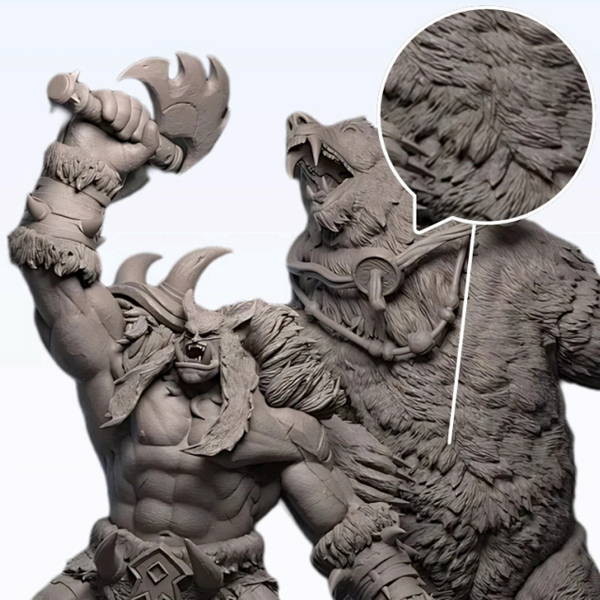

High precision and low shrinkage

The model has high molding accuracy, smooth surface and low shrinkage, and the print details are clearly visible

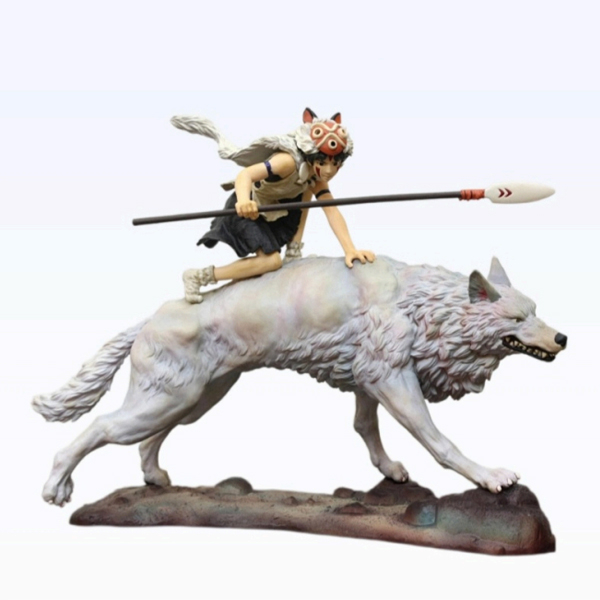

Easy Coloring

The surface of the molded part is smooth and the layer grain is fine, and it can be easily colored after simple polishing.

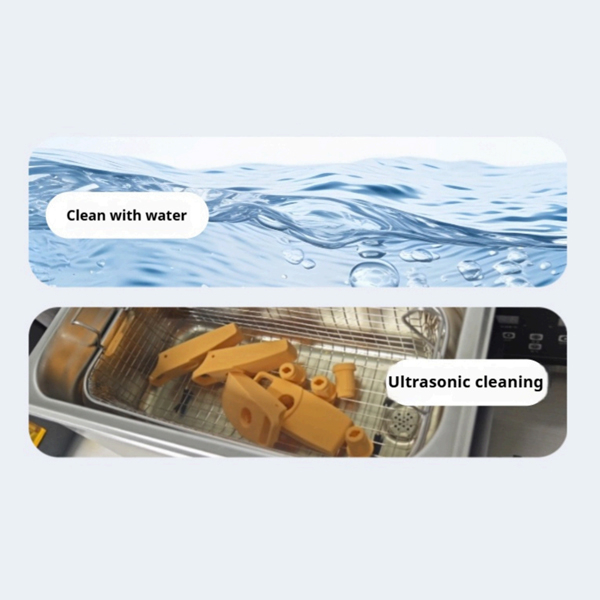

Multiple choices Wash with water

Support 2 kinds of washing methods, there is always one you like.With the use of Weiren ultrasonic cleaning machine is better.

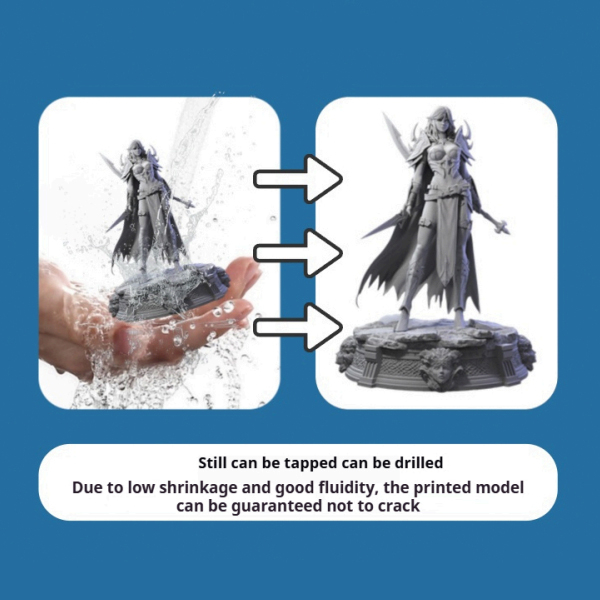

Water washing model "No cracking"

New upgrade formula, extend the cracking time

Contact Our Support Team

Applicable to CLD/DLP 3D Printers with Washed Low Odor Photosensitive Resin

Material Parameters of Washed Low Odor Photosensitive Resin

Maximum force(KGF)		127.7±10%
Tensile strength(MPa)		30.10±10%
Deformation at the point of maximum force(mm)		5.76±10%
Yield point elongation(%)		6.90±10%
Elongation at break(%)		11.23±10%
Maximum bending strength(MPa)		36.87±10%
Flexural modulus of elasticity(MPa)		1018.31±10%
Shore hardness(D)		82~84
Impact strength(j/m)		28.37±10%
Tensile modulus(MPa)		379.76±10%

Get The Latest Price Today

Recommended Print Parameters of 405nm Washed Low Odor Photosensitive Resinive Resin

Recommended Print Time	Suggested printing time: base plate 20~25S, each layer 2.5~3.5S(6.6 Inch black and white screen, light intensity 3500 ~ 4500uw/cm2)
Ground floor lifting distance	6mm
Lifting distance	6mm
Bottom layer lifting speed	60mm/min
Lifting speed	80mm/min
Return speed	150mm/min
Absorption band	385~410nm

Start an Order With Us

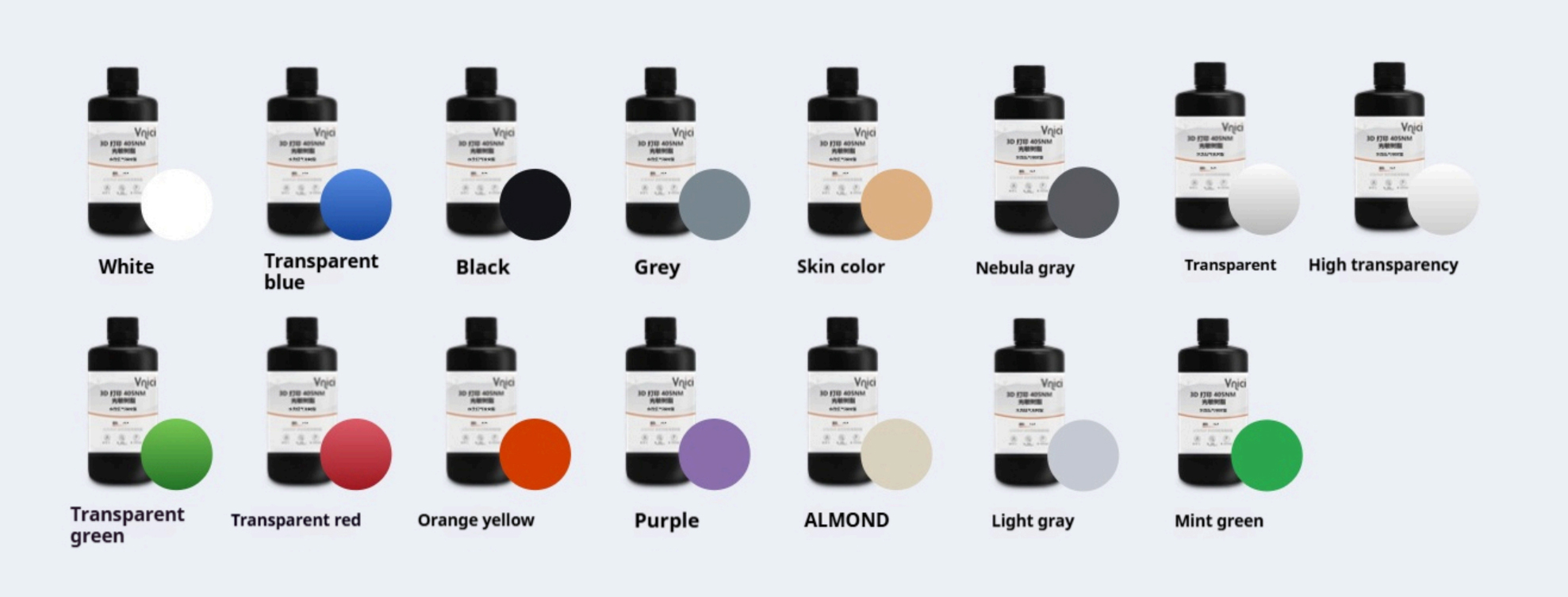

Multiple Colors Optional Creative without Limits

color Washed Low Odor Photosensitive Resin

Start A Project With Us

Application areas of 3D Printing Elastic Photosensitive Resin WE-EL

Applicable to all kinds of models, shells and industrial spare parts, building models, hand-made DIY, creative design, daily design and other model making.

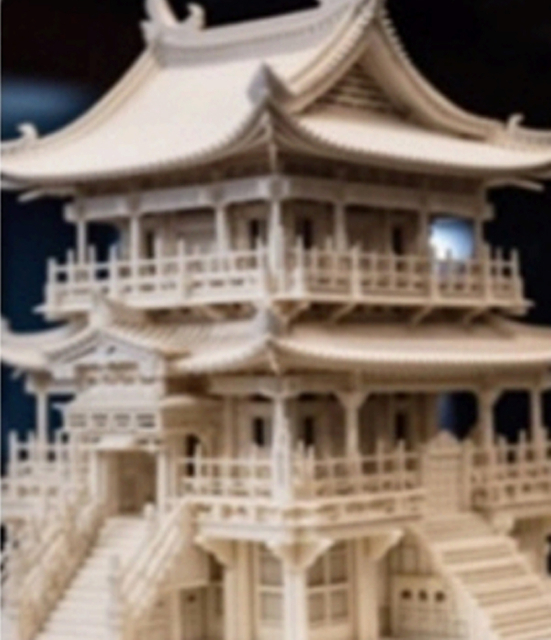

Building model

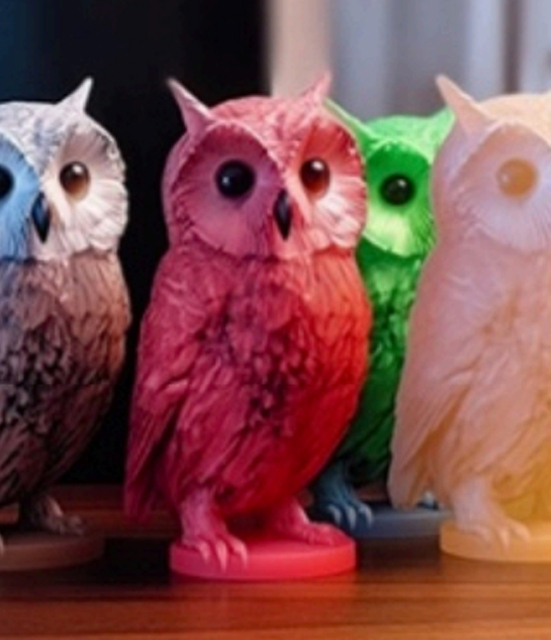

Toy applications

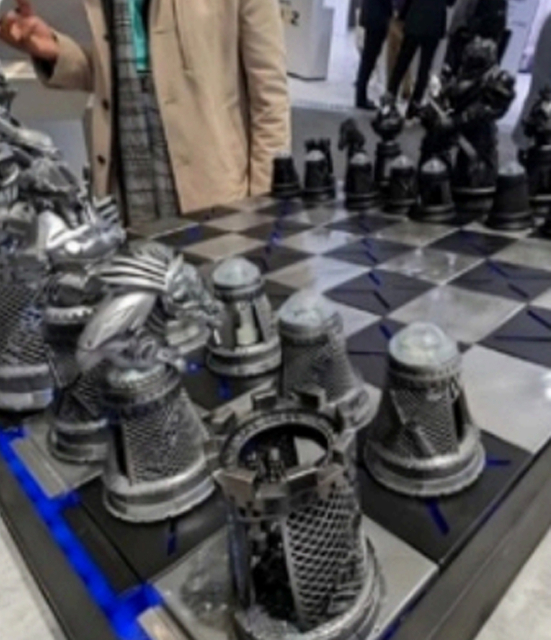

Tide play toys

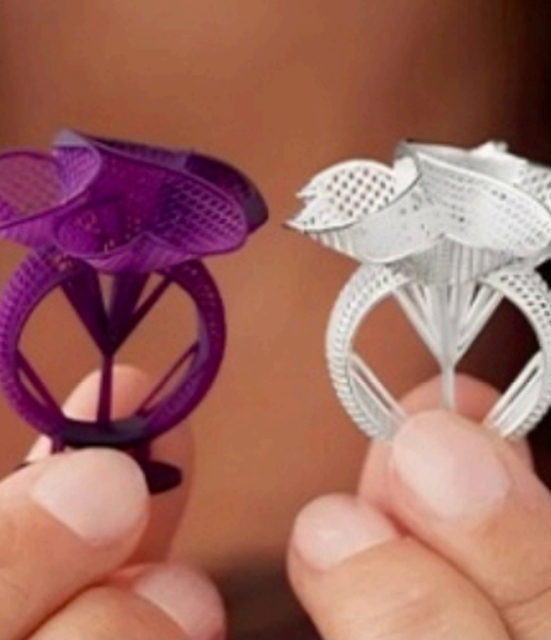

Jewelry

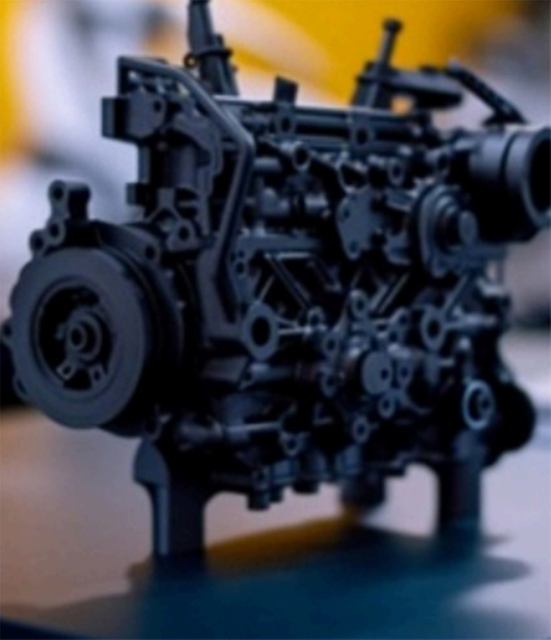

Industrial parts

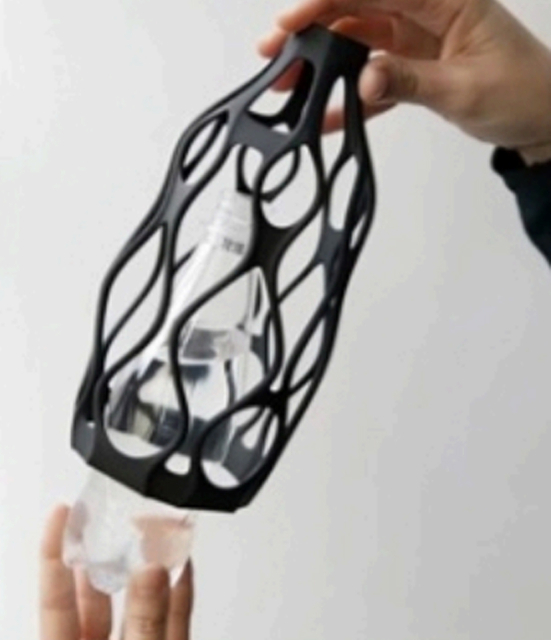

Creative design

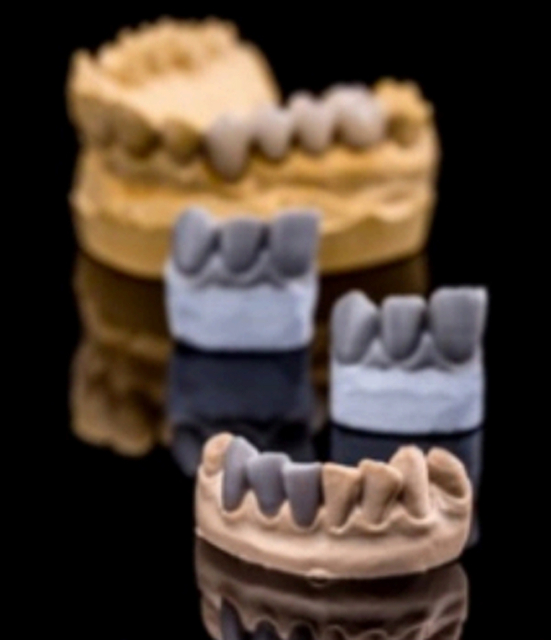

Dental mediacl
Furniture products
Hand-made ornaments

Send Us Your Inquiry Today

Material Use Instructions

Post-treatment and cleaning safety precautions Correct storage method.

Post-treatment and Cleaning

Clean the model with absolute ethyl alcohol or isopropyl alcohol by ultrasonic shaker, and do not scrub the model with high frequency vibration or force to avoid damage to the surface details of the model;
Remove the free surface cleaning liquid with air gun or hair dryer;
Remove most of the supporting materials before post-curing, and carry out detailed support removal and surface modification after post-curing;
Adjust the corresponding post-curing time according to the selected post-curing.

Safety Precautions

This product is a one-time use, can not be reused;
Only use under good ventilation, please pay attention to air circulation when using, and take protective measures;
If you accidentally contact your eyes, please wash them with water immediately. If you still feel unwell after cleaning, please seek medical attention immediately.
If you accidentally come into contact with clothes, please replace them immediately, and wash the skin and clothes with soap and water immediately;
Do not contact the resin with food, such as accidentally swallowed, do not induce vomiting to maintain a rest state, timely medical treatment.
The disposal of waste shall be in accordance with the requirements of local environmental regulations.

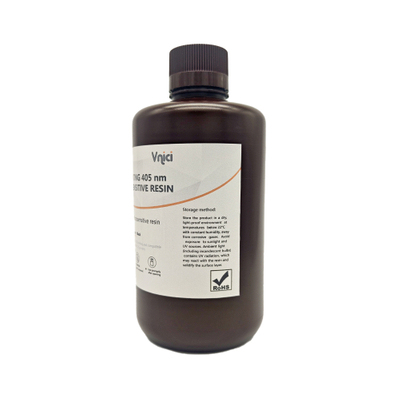

The Correct Storage Method

Please store the product in a cool place below 25 degrees, avoid exposure to the sun, the general visible light may trigger resin polymerization gel. Can not be placed in the sun, damp, corrosive gas place.
