3D Printing Rigid 8K Photosensitive Resin (405nm UV) | WE-RI

Suitable for LCD/CLP 3D printing

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Rigid 8K Photosensitive Resin for 3D Printing
1
1
3
2

VNICI MATERIALS

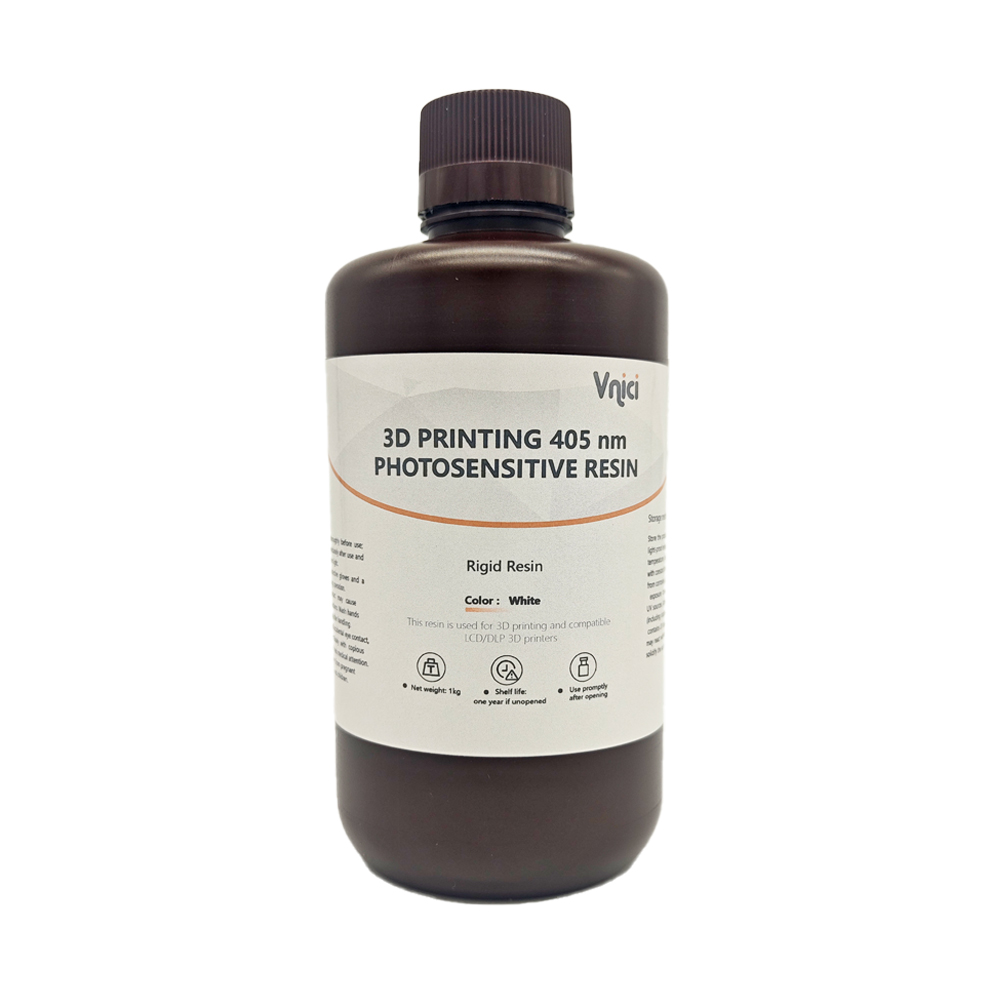

Rigid 8K Photosensitive Resin (405nm UV) | WE-RI for 3D Printers

High Printing  |  No ash residue easy to mold  |  Suitable for various metal material casting
WE-RI Rigid 8K 405nm UV photosensitive resin is a premium 3D printing material for LCD/DLP machines. Boasting high precision, sharp details, and strong mechanical properties (45.62MPa tensile strength, 80~85 Shore D), it’s ideal for watches, crafts, toys, and industrial parts. It cures fast, shrinks minimally, and boosts printing efficiency, outperforming traditional resins. Safe to use with proper protection, store in a dry, dark environment for consistent, high-quality prints.
  • high precision
    High precision
  • High hardness
    High hardness
  • Low odor
    Low odor
  • low shrinkage
    Low shrinkage
  • Easy to form
    Easy to form
  • Not easily deformed
    Not easily deformed

Key Features of 3D Printing with Rigid 8K Photosensitive Resin (405nm UV) | WE-RI

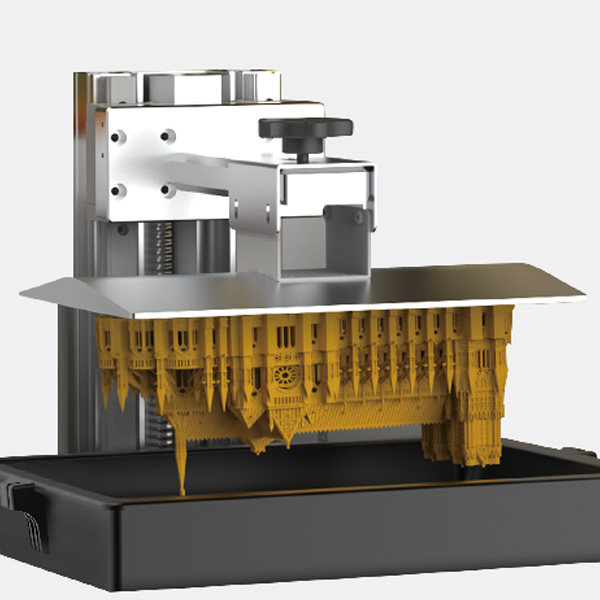

Applicable to CLD/DLP 3D Printers with Rigid 8K Photosensitive Resin (405nm UV) | WE-RI

Product Parameters of 3D Printing Rigid 8K Photosensitive Resin (405nm UV) | WE-RI

Maximum force (KGF) 168.7±10%
Tensile strength (MPa) 45.62±10%
Deformation at the point of maximum force (mm) 5.75±10%
Elongation at yield point (%) 6.34±10%
Elongation at break (%) 11.5±10%
Maximum bending strength (MPa) 58.3±10%
Flexural modulus of elasticity (MPa) 1123.2±10%
Hardness (Shore D) 80~85
Impact strength (j/m) 76±10%
Tensile modulus (MPa) 608.5±10%

Printing Parameters of 405 nm Rigid 8K Photosensitive Resin

Series Rigid Resin
Model WE-RI
Color White/Deep Transparent Blue/Black/Grey/Flesh/Transparent Green/Transparent Red/Transparent, etc.
Recommended Bottom Expose Time(Light Intensity 3500~4500μw/cm²) 20~30S
Recommended Expose time(Light Intensity 3500~4500μw/cm²) 2.5~3S
Bottom Lift Distance 6mm
Lifting Distance 6mm
Bottom Lift Speed 60mm/min
Lift Speed 80mm/min
Retract Speed 150mm/min
Absorption Band 385~410nm

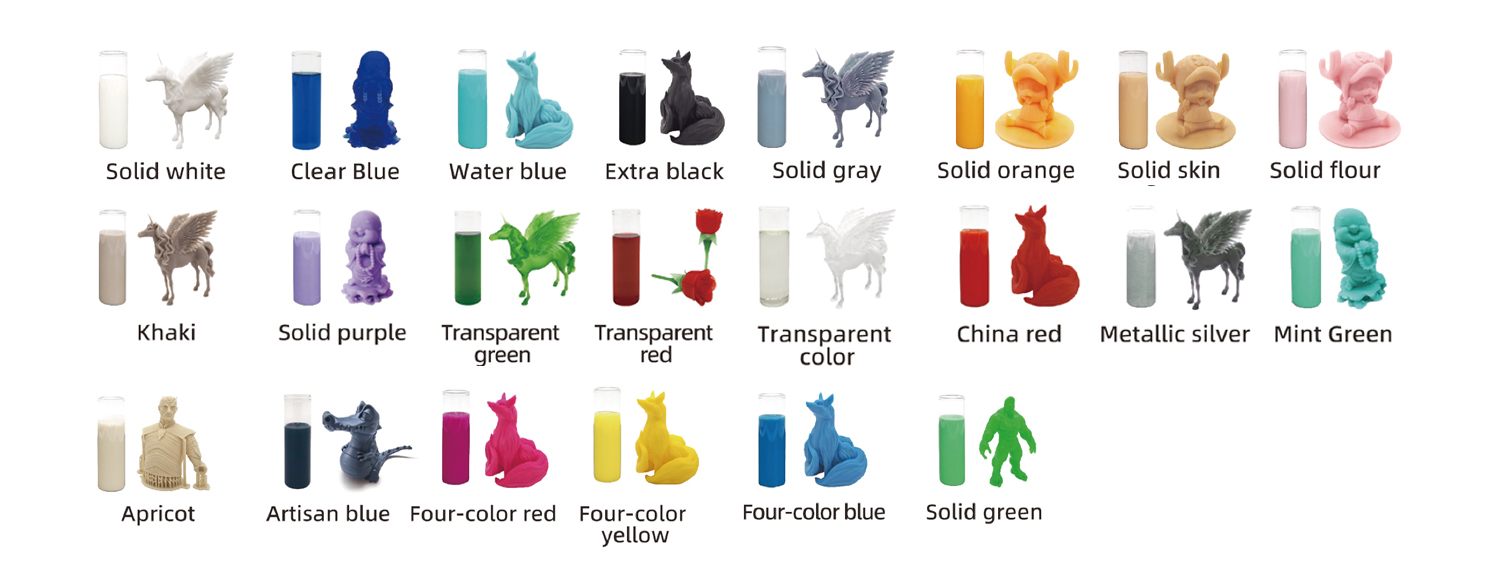

Color of 405 nm Rigid 8K Photosensitive Resin

Including mainstream colors in the market, the molding color is pure, and the coloring effect in the later stage is good.
Rigid 8K Photosensitive Resin color
Tips: Due to different lighting or display settings, the product has different degrees of color difference, the final color please refer to the actual product.

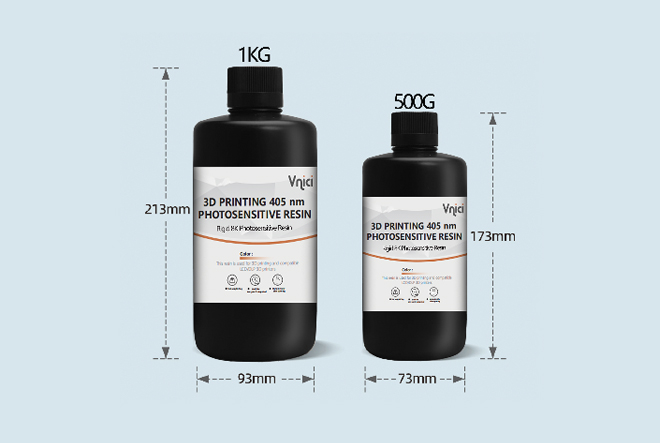

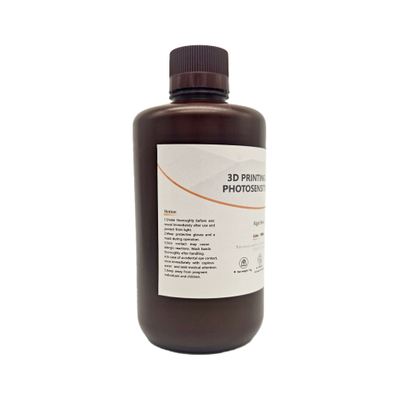

Wrap of 3D Printing Rigid 8K Photosensitive Resin (405nm UV) | WE-RI

Note:The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.
warp of Rigid 8K Resin

Fast Printing of Digital Dentistry Applications

While the resin ensures the strength of the model and does not shrink excessively, it increases the printing speed, shortens the curing time, and improves the printing efficiency of the LCD/DLP machine as much as possible.

Traditional Resins


Time consuming
Long curing time, need to wait for a long time
Model strength is low
The model is fragile and the molding rate is low
Inefficient printing
Low efficienc

Rigid 8K Resin


 Print faster
Save time
 High model strength
Guaranteed model strength
 Improve printing efficiency
More efficient completion

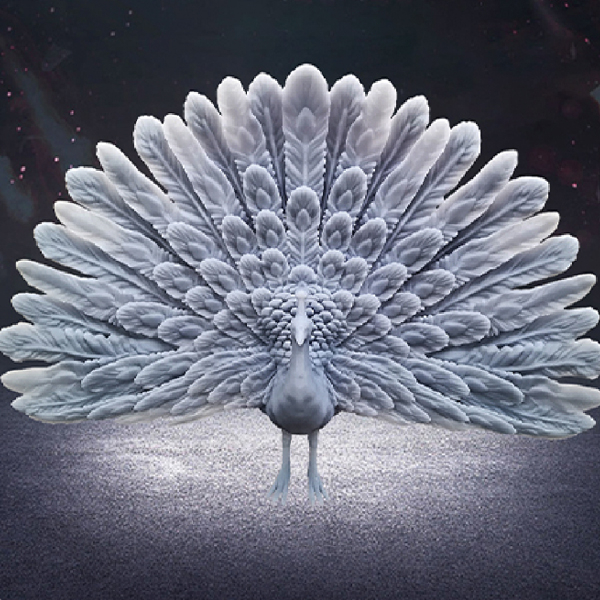

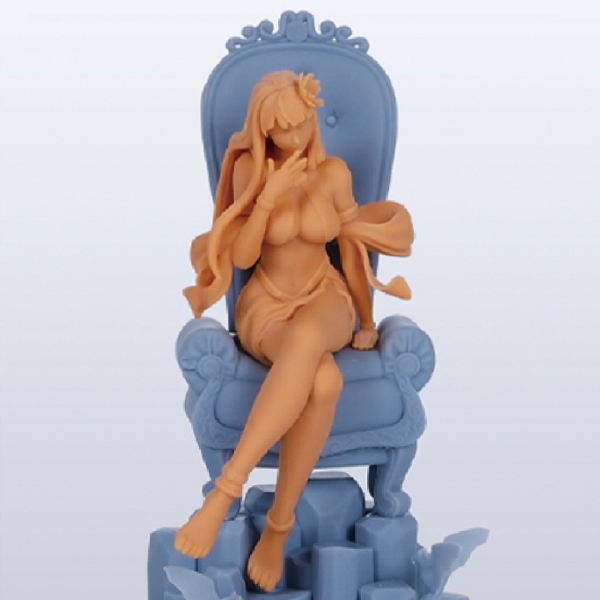

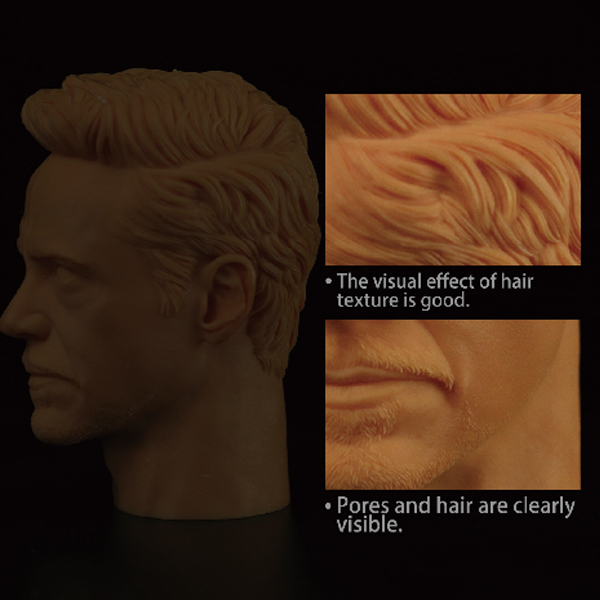

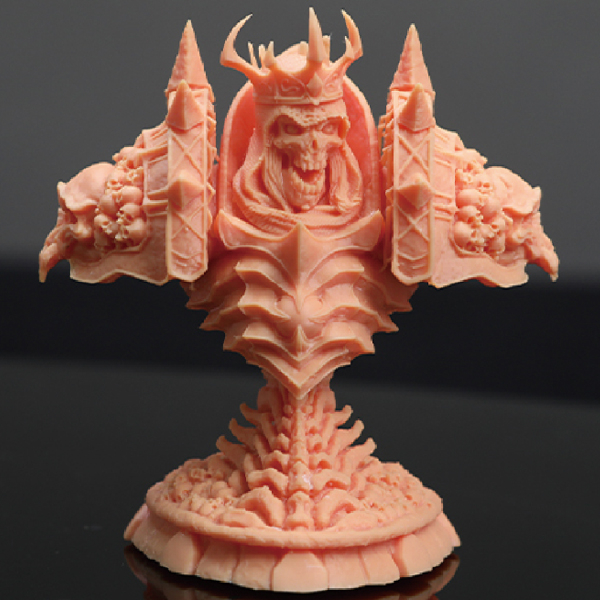

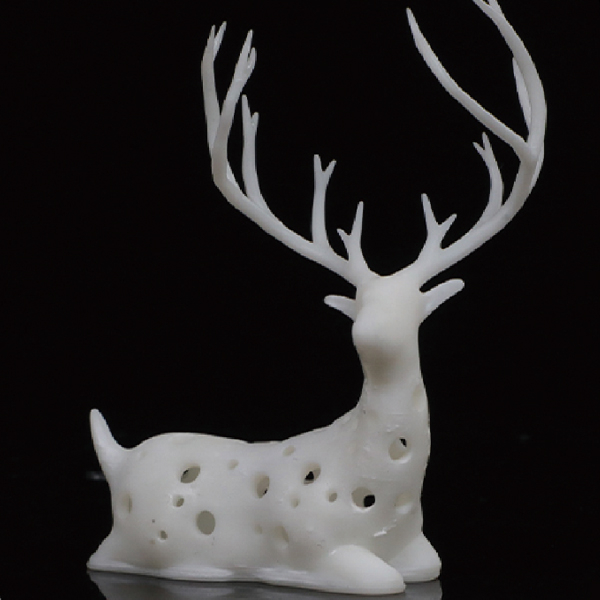

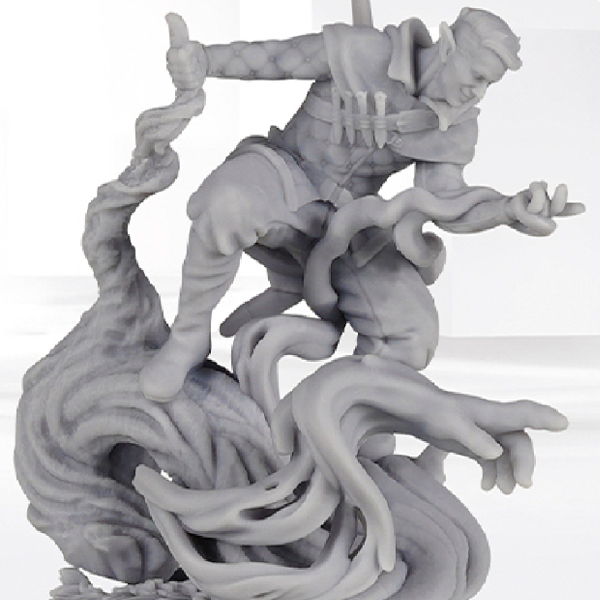

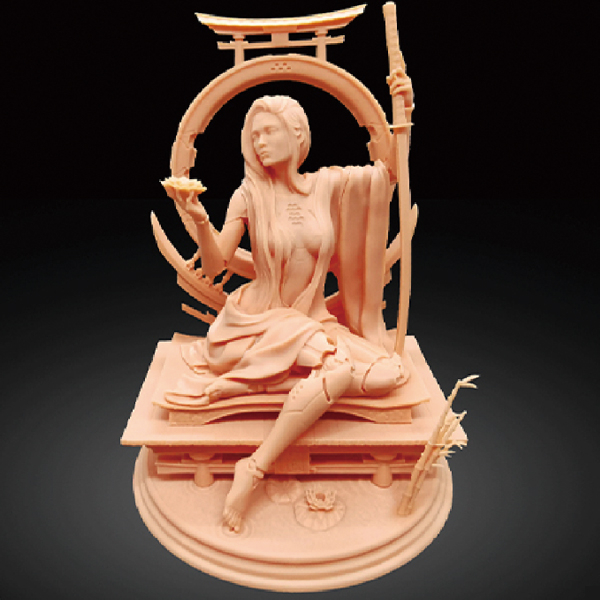

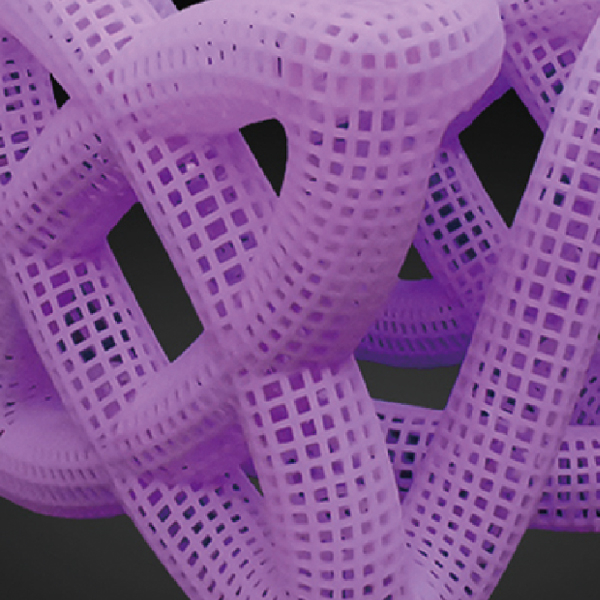

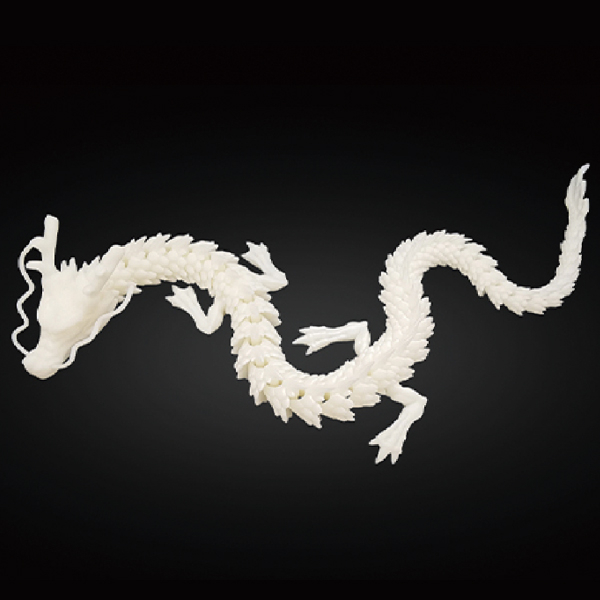

Model Display of 3D Printing Rigid 8K Photosensitive Resin (405nm UV) | WE-RI

Precautions

Precautions for use and storage.
  1. Please shake it evenly before using it, seal it in time after use, and keep it away from light
  2. Please wear protective equipment such as gloves and masks when using
  3. Wash hands thoroughly after operation
  4. Skin contact may cause allergies, if irritation or rash occurs, please seek medical attention in time
  5. If it gets into the eyes accidentally, please wash it off with plenty of water immediately and go to the doctor
  6. Do not let pregnant women and children touch this product
  7. Please dispose of this product container at an approved waste treatment plant
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the surface cleaning fluid;
  3. Remove most of the supports before post-curing, and remove the details of supports and modify the surface after post-curing;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
Please store the product in a dry and ventilated place without corrosive gas.Can not be placed in the sun, damp places.
