3D Printing Surgical Guide Resin (405nm UV) | WR-SG

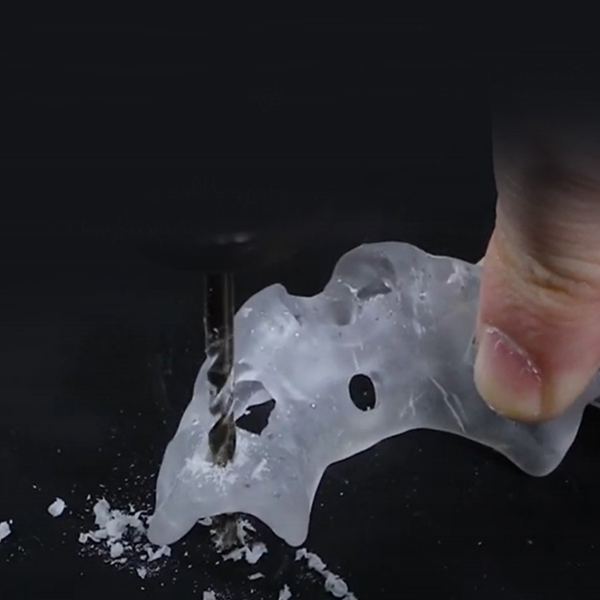

High Precision And High Transparency  | Can Be Tapped and Ground

Good Toughness And Impact Resistance

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Surgical Guide Resin for 3D Printing
2
2
1
3

VNICI MATERIALS

Surgical Guide Resin (405nm UV) | WR-SG for 3D Printers

High Precision And High Transparency | Can Be Tapped And Ground | Good Toughness And Impact Resistance
Crown Casting Resin (WR-CC) is a 405 nm UV-curable dental resin for cast crowns, denture frameworks, and dental casting. Compatible with LCD/DLP 3D printers, it offers high precision, smooth surfaces, stable printing, and low skin irritation.
  • Biocompatibility
    Biocompatibility
  • good liquidity
    Good liquidity
  • low shrinkage
    Low shrinkage
  • High Transparency
    High Transparency
  • high adaptability
    High adaptability
  • cost-effective
    Cost-effective
  • high flexibility
    High flexibility
  • Finished surface is smooth
    Finished surface is smooth
  • high precision
    High precision
  • Short curing time
    Short curing time

Key Features of 3D Printing Surgical Guide Resin (405nm UV) | WR-SG

Applicable to CLD/DLP 3D Printers with Surgical Guide Resin (405nm UV) | WR-SG

Material Parameters of 3D Printing Surgical Guide Resin (405nm UV) | WR-SG

Flexural modulus: 481.96 Mpa ±10%
Elongation at break: 17.46% ±10%
Bending strength: 22.08 Mpa ±10%
Hardness (Shore D): 85D ±10%
Notched impact strength: 115.2 J/m ±10%
Elongation at yield point: 5.22±10%
Maximum pulling force: 992.5N±10%
Density: 1.05–1.25 g/cm³
Tensile modulus: 23.87 Mpa ±10%
Viscosity: 100-200 MPa·s
Tensile strength: 312.8 Mpa ±10%
Test chamber temperature: 23°C±2°C
Humidity in test room: 50%RH±5%RH
Test paper test standard: ASTM
Post-curing:The test paper is post-cured for 2 minutes with 200mw/cm² 405nm in water.

Printing Parameters of 405 nm Surgical Guide Resin

Series Dental Model Guide Resin
Model WR-SG
Color Transparent
Recommended Bottom Expose Time
(Light Intensity 3500~4500μw/cm²)		 20~30S
Recommended Expose time
(Light Intensity 3500~4500μw/cm²)		 4~6S
Bottom Lift Distance 6mm
Lifting Distance 6mm
Bottom Lift Speed 60mm/min
Lift Speed 80mm/min
Retract Speed 150mm/min
Absorption Band 385~410nm

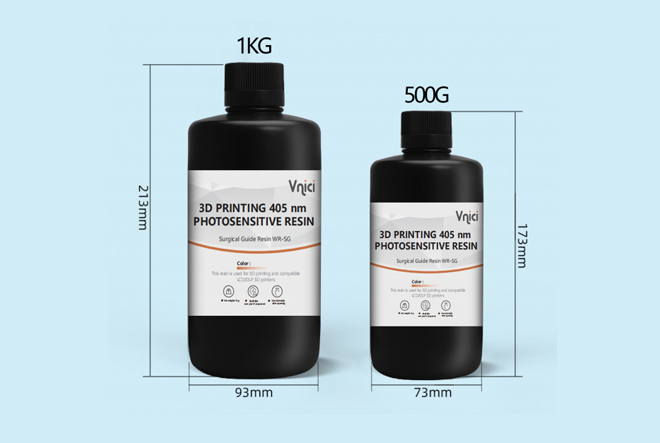

Wrap of 3D Printing Surgical Guide Resin (405nm UV) | WR-SG

No inner plug, easy to open and close
Thickened bottle should not be sunken
Opaque Black Complete Blackout

Note: The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.
warp of Surgical Guide Resin

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

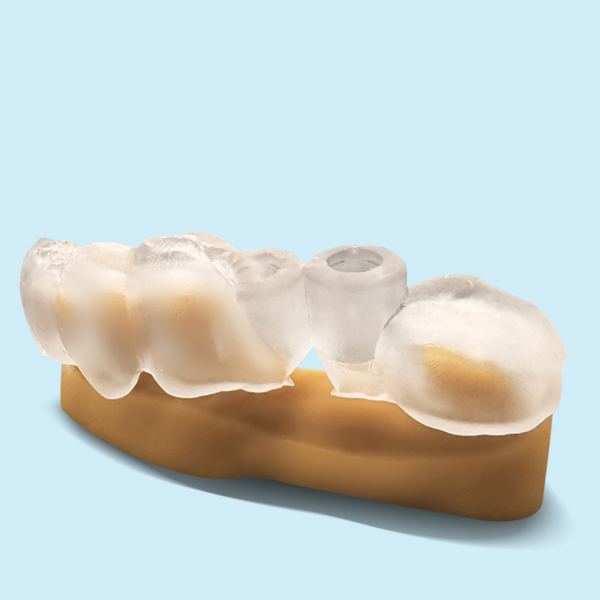

Model Display of 3D Printing Surgical Guide Resin (405nm UV) | WR-SG

Instructions for Use of Materials

Aftertreatment and Cleaning   |   Safety Precautions   |   Correct Storage Method
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the face-free cleaning solution;
  3. Before post-curing, remove most of the support material, and after post-curing, remove the details of the support and modify the surface treatment;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
  1. This product is for one-time use and cannot be reused;
  2. Use only under good ventilation, please pay attention to air circulation and take protective measures when using;
  3. If you accidentally touch your eyes, please wash them with water immediately. If you still feel unwell after washing, please seek medical attention immediately;
  4. If you accidentally touch the clothes, please change them immediately, and wash the skin and clothes with soap and water immediately;
  5. Do not put the resin in contact with food, if swallowed accidentally, do not induce vomiting, keep resting, seek medical advice in time;
  6. Disposal of wastes shall be disposed of in accordance with the requirements of local environmental regulations.

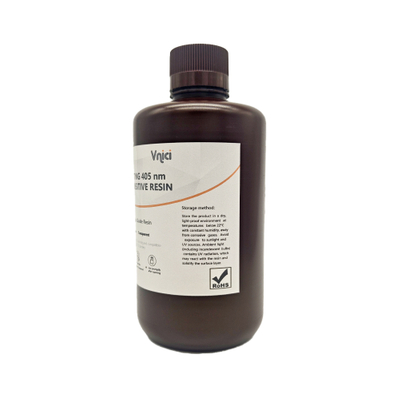

Please store the product in a cool place below 25 degrees and avoid exposure to sunlight. Generally, visible light may cause resin polymerization and gelation. Can not be placed in the sun, humidity, corrosive gas place.
