3D Printing Denture Base Photosensitive Resin (405nm UV) | WR-DB

Customizable Colors  |  Batch-Based Packaging

Delivery Inspection Recommended  |  Clear Receipt Policy

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Denture Base Photosensitive Resin for 3D Printing
1
1
3
3

VNICI MATERIALS

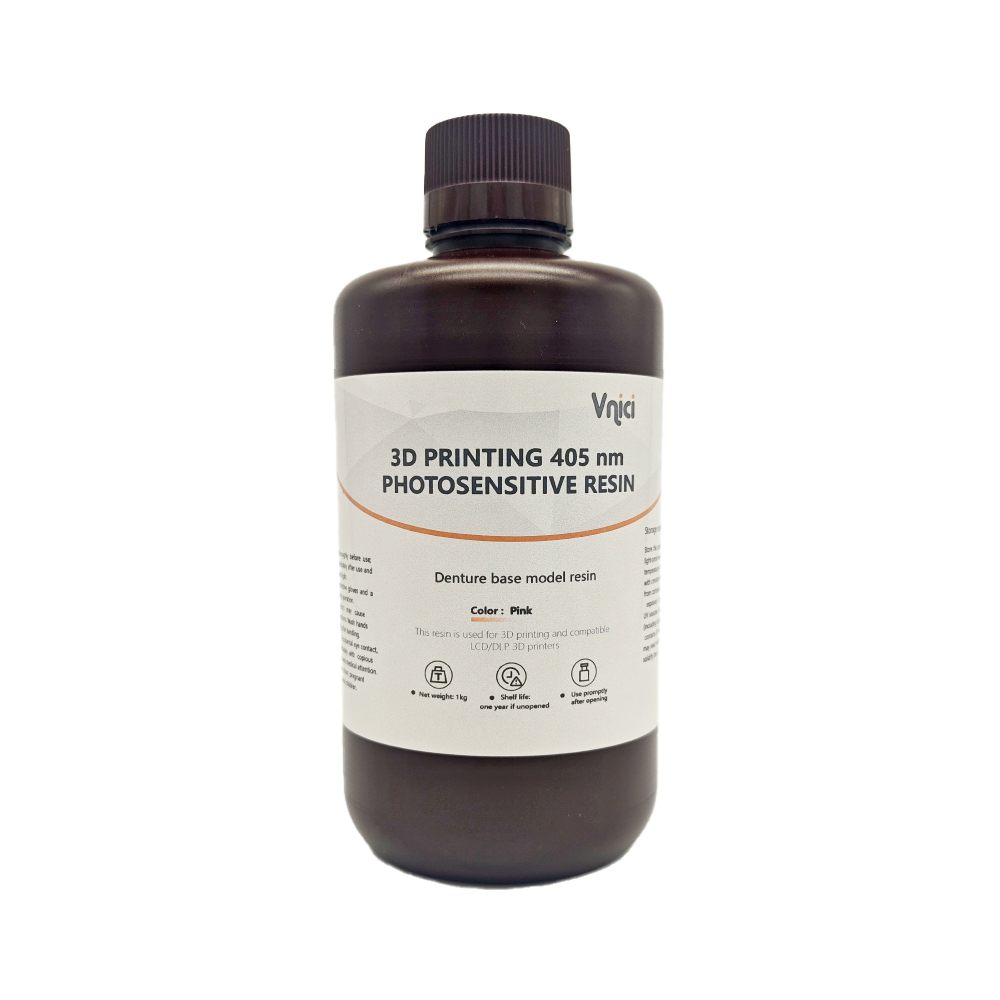

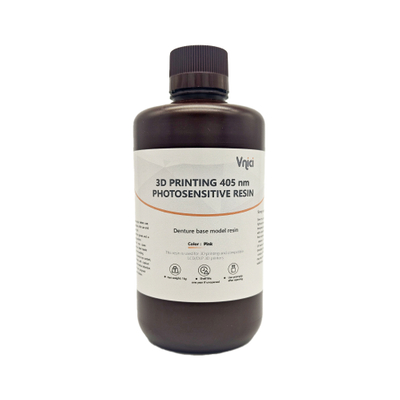

Denture Base Photosensitive Resin (405nm UV) for 3D Printers

Price resin can be customized color, specific please consult customer service
The outer packaging will vary depending on the batch and will not be used as a reason for refund.
Regarding signing for receipt: In order to protect your rights and interests, it is recommended that you check the outer package of the package when you receive the package. If you find any damage or deformation, contact customer service as soon as possible. If you have signed for receipt or someone else has signed for receipt, It is regarded as the outer package of the product, and the quantity and content of the product are correct.
  • High adaptability
    High adaptability

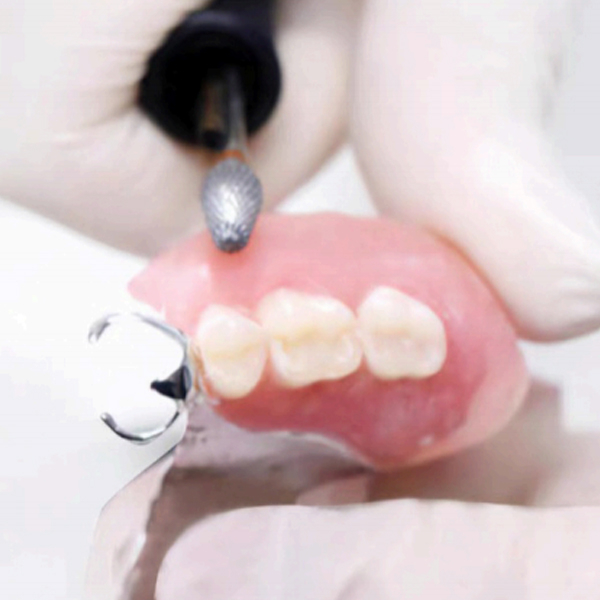

  • Wear resistance
    Wear resistance
  • high precision
    High precision
  • temperature resistance
    High temperature resistance
  • Finished surface is smooth
    Smooth surface
  • Small shrinkage
    Small shrinkage
  • High hardness
    High hardness of finished product
  • High cost performance
    High cost performance

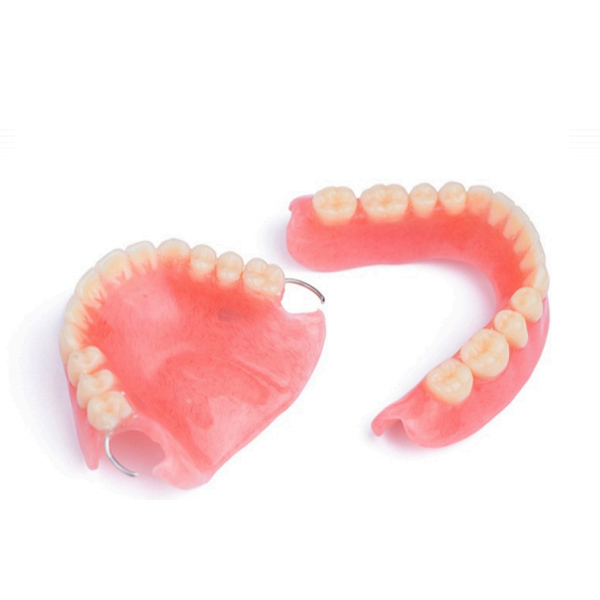

Key Features of 3D Printing Denture Base Photosensitive Resin (405nm UV) | WR-DB

Applicable to CLD/DLP 3D Printers with Denture Base Photosensitive Resin (405nm UV) | WR-DB

Material Parameters of 3D Printing Denture Base Photosensitive Resin (405nm UV) | WR-DB

Parameter Value
Maximum force (KGF) 108.7±10%
Tensile strength (MPa) 25.62±10%
Deformation at maximum force point (mm) 9.99±10%
Yield point elongation (%) 5.50±10%
Elongation at break (%) 17.65±10%
Maximum bending strength (MPa) 25.48±10%
Flexural modulus of elasticity (MPa) 693.51±10%
Shore hardness (D) 80-85
Impact strength (j/m) 118.46±10%
Tensile modulus (MPa) 320.80+10%
Temperature 23±2°C
Relative humidity 50%RH±5%RH
Test Spline Standard ASTM
Post-curing conditions Put the test strip in water and cure the front and back sides for 1 minute under the 405 band ultraviolet light of 200 mw/cm.

405nm Denture Base Photosensitive Resin Recommended Printing parameters

Series Denture Base Resin
Model WR-DB
Color Pink
Recommended Bottom Expose Time (Light Intensity 3500~4500μw/cm²) 20~30S
Recommended Expose time (Light Intensity 3500~4500μw/cm²) 3~6S
Bottom Lift Distance 6mm
Lifting Distance 6mm
Bottom Lift Speed 60mm/min
Lift Speed 80mm/min
Retract Speed 150mm/min
Absorption Band 385~410nm

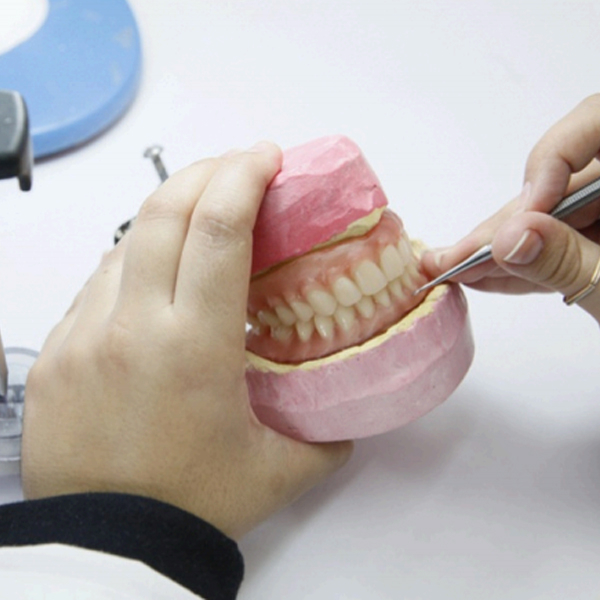

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

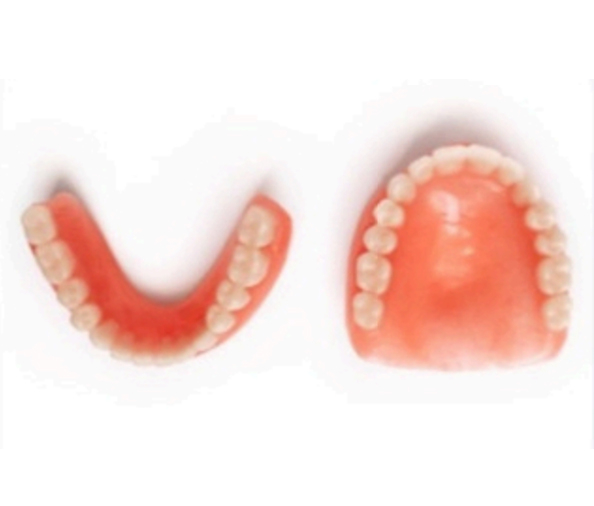

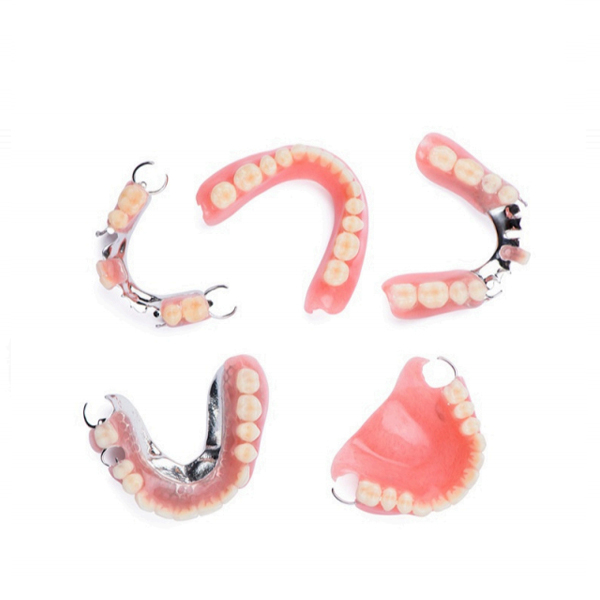

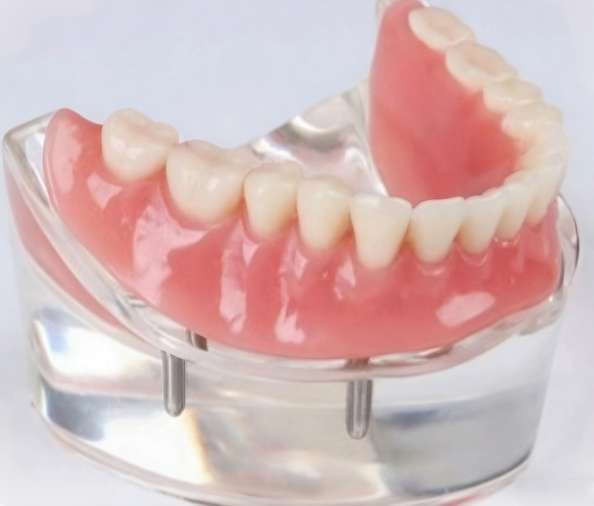

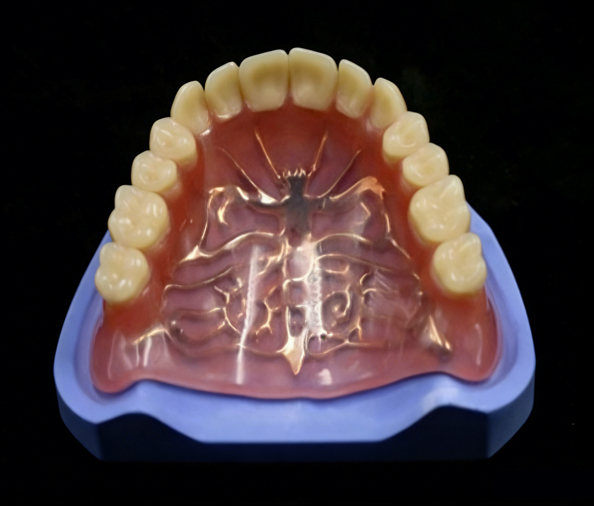

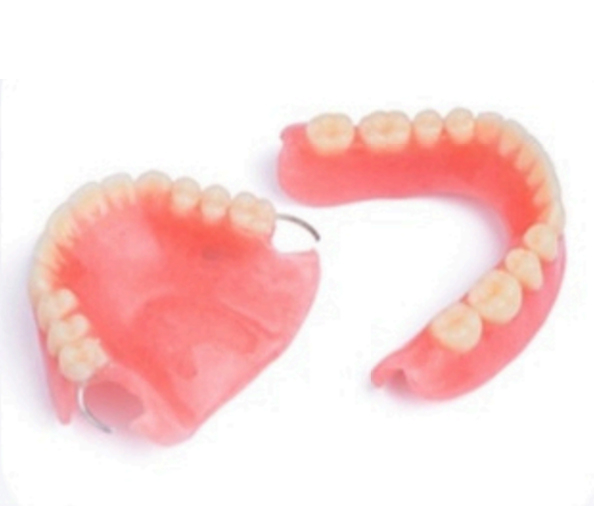

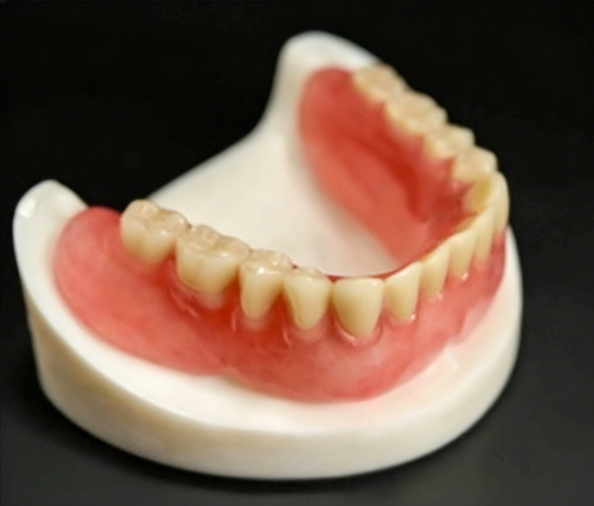

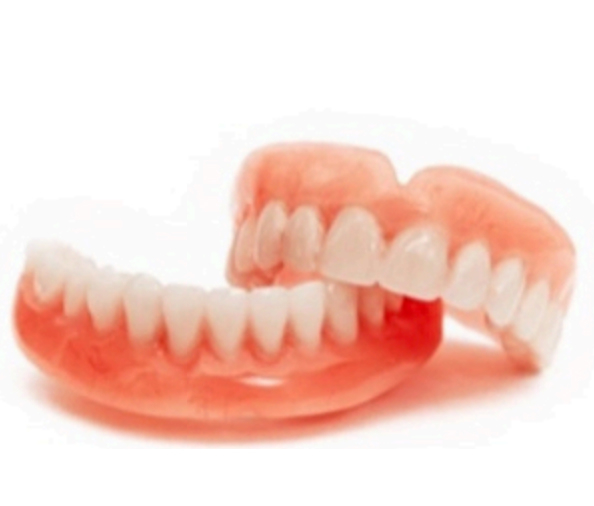

Model Display of 3D Printing Denture Base Photosensitive Resin (405nm UV) | WR-DB

Material Use Instructions

Post-treatment and cleaning safety precautions Correct storage method
  1. Clean the model with absolute ethyl alcohol or isopropyl alcohol by ultrasonic shaker, and do not scrub the model with high frequency vibration or force to avoid damage to the surface details of the model;
  2. Remove the free surface cleaning liquid with air gun or hair dryer;
  3. Remove most of the supporting materials before post-curing, and carry out detailed support removal and surface modification after post-curing;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
  1. This product is a one-time use, can not be reused;
  2. Only use under good ventilation, please pay attention to air circulation when using, and take protective measures;
  3. If you accidentally contact your eyes, please wash them with water immediately. If you still feel unwell after cleaning, please seek medical attention immediately.
  4. If you accidentally come into contact with clothes, please replace them immediately, and wash the skin and clothes with soap and water immediately;
  5. Do not contact the resin with food, such as accidentally swallowed, do not induce vomiting to maintain a rest state, timely medical treatment.
  6. The disposal of waste shall be in accordance with the requirements of local environmental regulations.

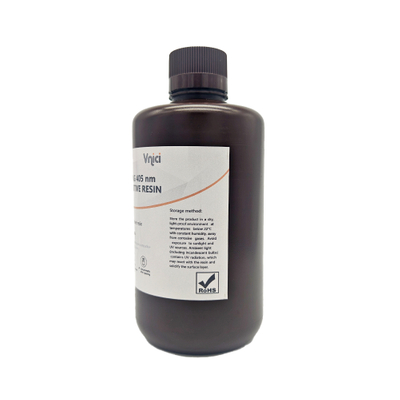

Please store the product in a cool place below 25 degrees and avoid exposure to sunlight. Generally, visible light may cause resin polymerization and gelation. Can not be placed in the sun, humidity, corrosive gas place.
