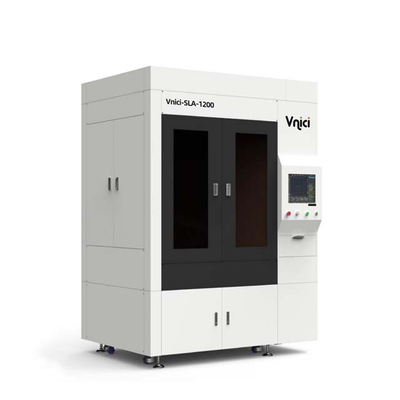

SLA Industrial 3D Printer 1200

Dual Galvanometers·Dual Lasers·High -end Configuration

Home » 3D Printers » SLA 3D Printers » SLA-1200

VNICI 1200

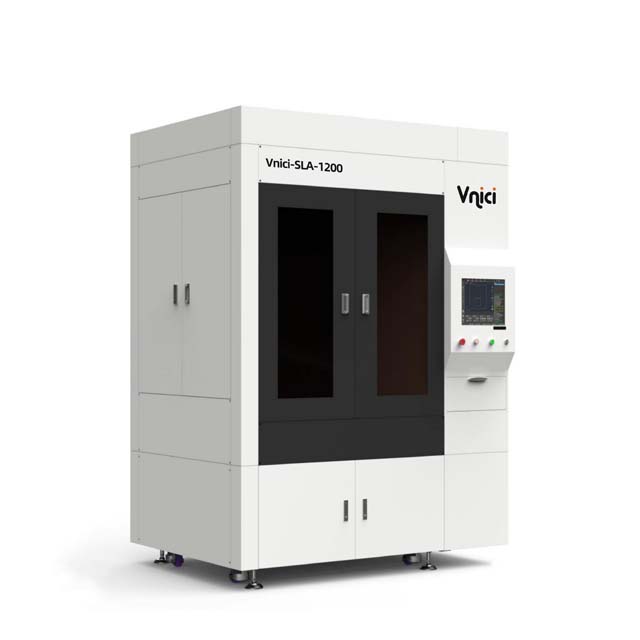

SLA Industrial 3D Printer 1200

SLA Industrial 3D Printer 1200 is a high-end large-format stereolithography system designed for industrial-grade precision and high-efficiency production. Featuring dual galvanometers and dual independently controlled lasers, the SLA-1200 significantly reduces scanning time while improving edge forming speed, ensuring stable and accurate results even in large batch printing.
With a maximum forming size of 1200 × 600 × 500 mm, intelligent coating technology, and variable laser spot control down to 0.06 mm, it delivers exceptional surface quality, fine details, and reliable consistency. Compatible with a wide range of engineering and functional resins, the SLA-1200 is an ideal solution for demanding applications across automotive, aerospace, medical, dental, and industrial manufacturing sectors.

Request A Quick Quote

Technical Specifications of SLA Industrial 3D Printer 1200

One - click Startup

High - precision
Sensors

Dual Galvanometers & Dual Lasers

Full - process
Intelligent Coating

Laser Online Inspection

One - click
Intelligent Printing

Key Features of SLA Industrial 3D Printer 1200

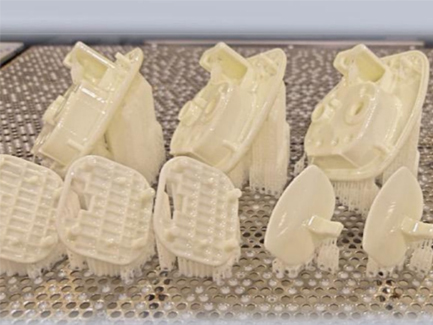

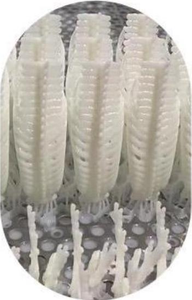

Micro-contact Support Smooth Surface And
Easy To Remove

One-press falling -Removal efficiency increased by 5 times
Nano-level contact points -Support traces invisible
Factory-evel surface -Grinding process saved

SLA Laser Technology

The spot diameter can be freely switched within
the range of 0.06-0.2mm to achieve a variable
spot mode.It greatly improves the printing efficiency and meets the requirements of high efficiency.

Dual Galvanometers & Dual Lasers

Dual lasers are independently controlled,and the scanning time of the working area division is reduced by 50%.
The galvanometer blind area compensation technology increases the edge forming speed by 80%.

Breakthrough Advancements In Print Quality

High-precision liquid level sensors and precision machining calibration are suitable for batch printing.They support multi-part duplicate and one -click intelligent automatic typesetting,which can quickly improve printing efficiency.

Large Dimensions Meets Your Production Needs

1200*600*500mm,A Larger Printing Space;Maximum Forming Size1200*600*500mm.

Negative Pressure Adsorption PrecisionScraping

High precision,with built-in liquid level detection
to ensure the measurement and control of printing stability.

Compatible With Multiple Materials
To Meet Your Different Needs

It supports a variety of performance consumables
to meet the needs of different materials and the needs of customers in various industries for material particularity.

Contact Our Support Team

Technical Specifications of SLA Industrial 3D Printer 1200

Model	Vnici-SLA-1200	Laser Power	5W@50KHZ
Forming Dimensions	1200600500mm	Scanning System	Galvanometer
Equipment	198015602400	Coating	Intelligent Vacuum
Dimensions	mm	System	Adsorption
Net Weight	1300KG	Coating Thickness Accuracy	0.03-0.1mm Rapid0.1-0.25mm
Resin Volume	2200KG	Motor	High-precision Servo Motor
Forming Speed	≤400 G/H	Repeat Positioning Accuracy	±0.01mm
Maximum Part Weight	80KG	Reference Platform	Marble
Scanning	Variable Point	Operating	Win7 Or Above
Method	Scanning	System
Resin	Ambient
Heating	Temperature Hot Air Heating	Control
Method	(Optional)	Software	Vnici V2.0
Scanning	Maximum		STL/SLC Format
Speed	12M/S	File Format
Auxiliary Storage Water Tank	Included	Network Type	Ethernet/Wireless Network
Resin Material Type	355nm	Power Supply	110-220V,50-60HZ
Laser Type	Diode-Pumped Solid-State Laser Nd:YVO₄	Ambient Temperature	24-28℃/35-45
Spot Diameter	0.06-0.2mm	Printing Accuracy	0.001MM
Forming Accuracy	±0.1mm(Length≤100mm),±0.1%XL (Length≥100mm)

Start A Project With Us

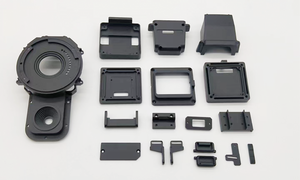

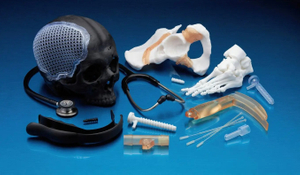

Applications of SLA Industrial 3D Printer 1200

Send Us Your Inquiry Today

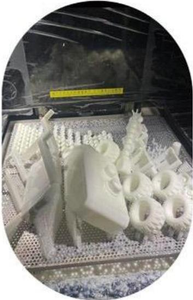

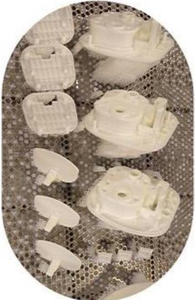

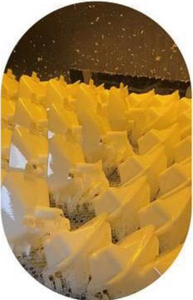

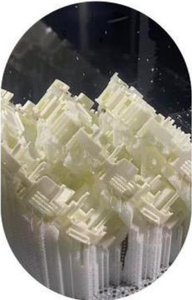

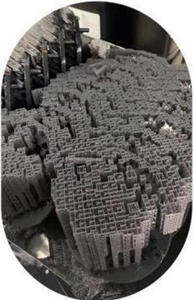

Sample Gallery of SLA Industrial 3D Printer 1200
