3D Printing Crown Casting Resin (405nm UV) | WR-CC

Beautifully Formed  |  Wide Compatibility

Fine Texture | Low Shrinkage

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Crown Casting Resin for 3D Printing
1
1
2
3

VNICI MATERIALS

Crown Casting Resin (405nm UV) | WR-CC for 3D Printers

Beautifully Formed  |  Wide Compatibility | Fine Texture | Low Shrinkage
Crown Casting Resin (WR-CC) is a 405 nm UV-curable dental resin for cast crowns, denture frameworks, and dental casting. Compatible with LCD/DLP 3D printers, it offers high precision, smooth surfaces, stable printing, and low skin irritation.

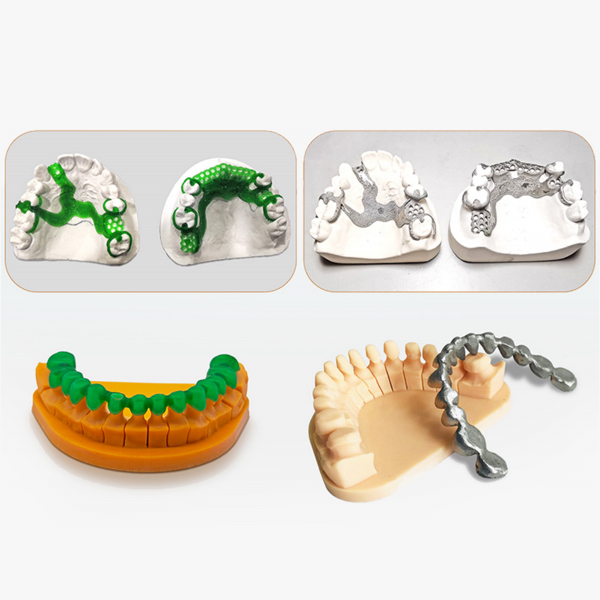

  • No ash residue
    No ash residue
  • Low shrinkage
    Low shrinkage

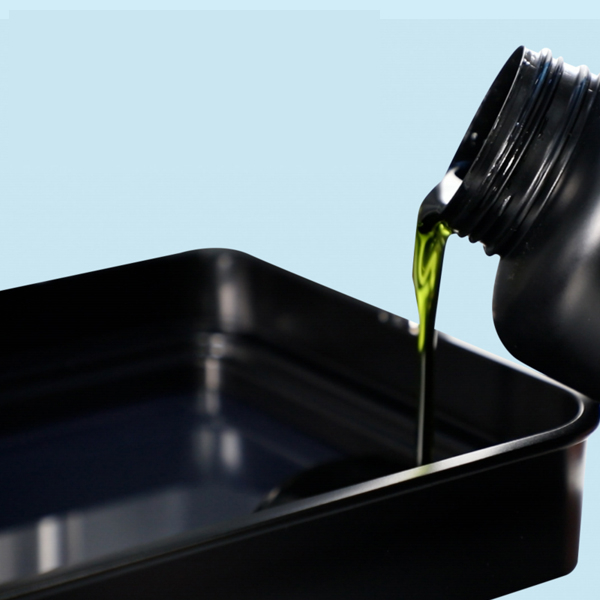

  • good liquidity
    Good liquidity
  • cost-effective
    Cost-effective
  • Smooth finished surface
    Smooth finished surface
  • Short curing time
    Short curing time
  • high precision
    High precision

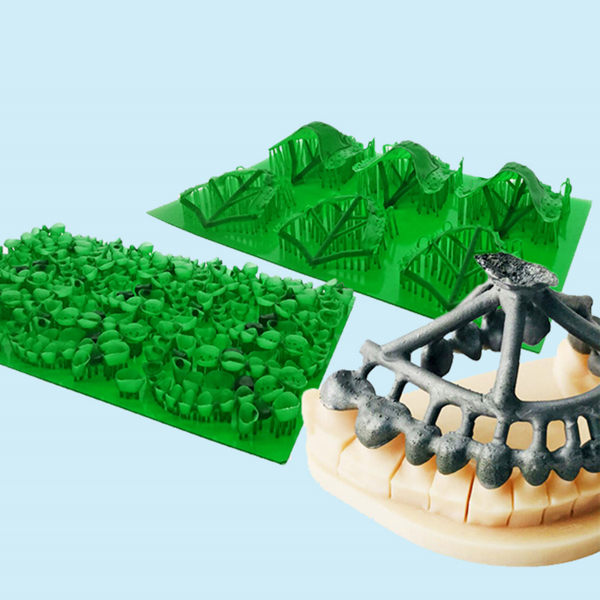

  • high adaptability
    High hardness

Key Features of 3D Printing Crown Casting Resin (405nm UV) | WR-CC

Applicable to CLD/DLP 3D Printers with Crown Casting Resin (405nm UV) | WR-CC

Material Parameters of 3D Printing Crown Casting Resin (405nm UV) | WR-CC

Property Value
Flexural Modulus 811.088 MPa ±10%
Elongation at Break 8.853% ±10%
Flexural Strength 39.816 MPa ±10%
Hardness (Shore D) 85–88 D ±10%
Notched Impact Strength 133.97 J/m ±10%
Yield Point Elongation 6.228% ±10%
Maximum Pulling Force 1272 N ±10%
Density 1.05–1.25 g/cm³
Tensile Modulus 433.669 MPa ±10%
Viscosity 50–170 mPa·s
Tensile Strength 30.599 MPa ±10%
Test Chamber Temperature 23°C ±2°C
Humidity in Test Room 50% RH ±5% RH
Test Standard ASTM
Post-curing:The test sample is post-cured for 2 minutes at 200 mW/cm² (405 nm) in water.

Printing Parameters of 405 nm Crown Casting Resin

Series Dental Crown Casting Resin
Model WR-CC
Color Green
Recommended Bottom Expose Time
(Light Intensity 3500~4500μw/cm²)		 30~50S
Recommended Expose time
(Light Intensity 3500~4500μw/cm²)		 3~5S
Bottom Lift Distance 6mm
Lifting Distance 6mm
Bottom Lift Speed 60mm/min
Lift Speed 80mm/min
Retract Speed 150mm/min
Absorption Band 385~410nm

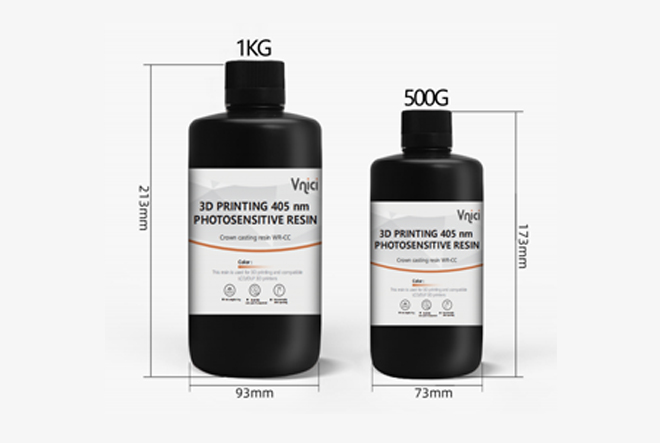

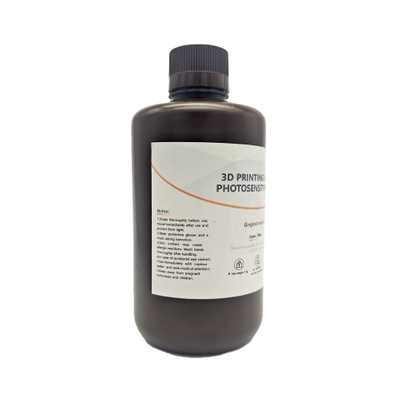

Wrap of 3D Printing Crown Casting Resin (405nm UV) | WR-CC

No inner plug, easy to open and close
Thickened bottle should not be sunken
Opaque Black Complete Blackout

Note: The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.
warp of Crown Casting Resin

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

Model Display of 3D Printing Crown Casting Resin (405nm UV) | WR-CC

Instructions for Use of Materials

Aftertreatment and Cleaning   |   Safety Precautions   |   Correct Storage Method
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the face-free cleaning solution;
  3. Before post-curing, remove most of the support material, and after post-curing, remove the details of the support and modify the surface treatment;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
  1. This product is for one-time use and cannot be reused;
  2. Use only under good ventilation, please pay attention to air circulation and take protective measures when using;
  3. If you accidentally touch your eyes, please wash them with water immediately. If you still feel unwell after washing, please seek medical attention immediately;
  4. If you accidentally touch the clothes, please change them immediately, and wash the skin and clothes with soap and water immediately;
  5. Do not put the resin in contact with food, if swallowed accidentally, do not induce vomiting, keep resting, seek medical advice in time;
  6. Disposal of wastes shall be disposed of in accordance with the requirements of local environmental regulations.
Please store the product in a cool place below 25 degrees and avoid exposure to sunlight. Generally, visible light may cause resin polymerization and gelation. Can not be placed in the sun, humidity, corrosive gas place.
