Jewelry High Wax Casting Resin (405nm UV) for 3D Printers

High Printing | No ash residue easy to mold | Suitable for various metal material casting

Jewelry High Wax Casting Resin is a premium 3D printing resin engineered for precision jewelry casting. With a high wax content of 60–70%, it delivers clean burnout performance with no ash residue, ensuring exceptional casting success rates. Compatible with LCD/DLP printers, this resin offers excellent fluidity, low shrinkage, and high dimensional accuracy—perfect for producing intricate designs with smooth surface finishes. Suitable for a wide range of metal casting applications, it helps streamline workflows while maintaining consistent, high-quality results.

Request A Quick Quote

High precision
Good liquidity
Finished surface is smooth
Low shrinkage
Suitable for many metals
NO ash residue

Key Features of 3D Printing with Jewelry High Wax Casting Resin (405nm UV) | WR-JH

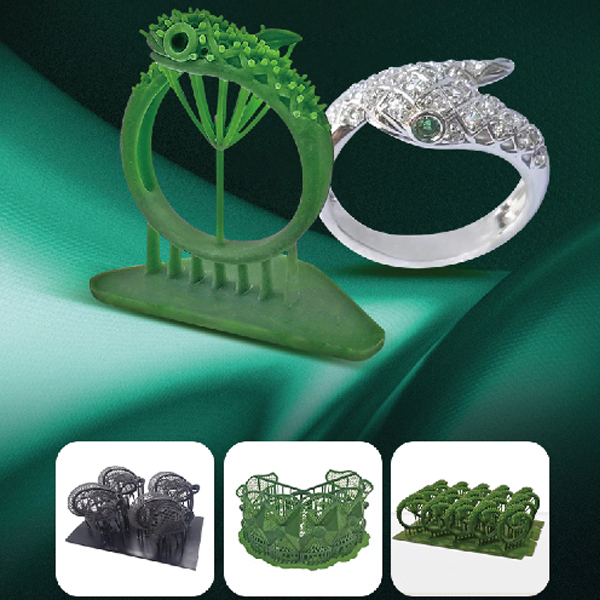

Wide range of applications

Suitable for jewelry industry, mold casting, teaching and scientific research, toy design, handicraft design, industrial parts, various jewelry and casting model applications, etc.

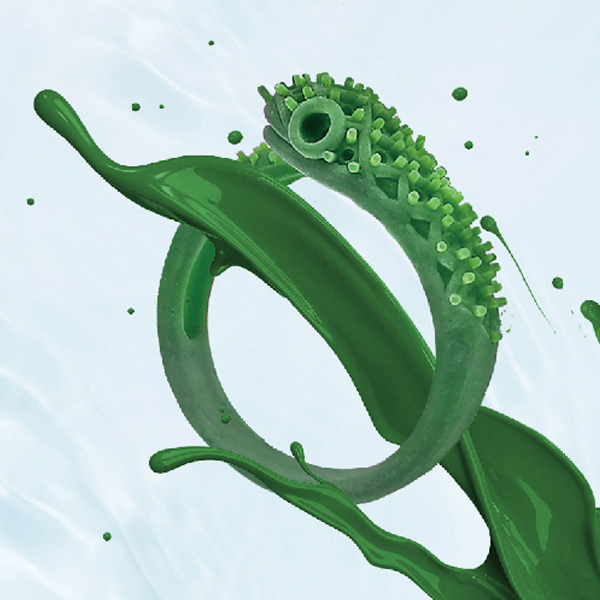

Excellent combustion performance small expansion and less residue

Self-developed special formula, low coefficient of thermal expansion, good burnout performance, no ash residue, easy to mold.

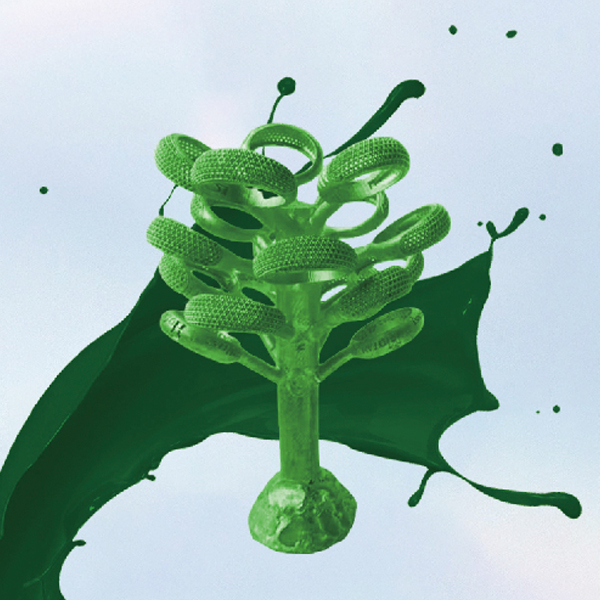

Suitable for a variety of metals

Casting mixes are designed to cast parts in bronze, copper, tin or iron using standard vacuum investment casting methods. You can use it to cast gold, platinum, silver and many other metals.

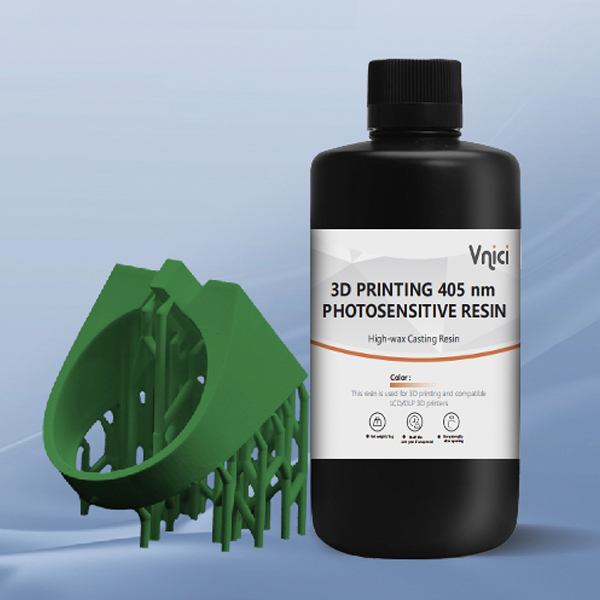

Easy operation and good compatibility

Compatible with most 405nm wavelength LCD/DLP printers.

Contact Our Support Team

Applicable to CLD/DLP 3D Printers with Jewelry High Wax Casting Resin (405nm UV) | WR-JH

Product Parameters of 3D Printing Jewelry High Wax Casting Resin (405nm UV) | WR-JH

Maximum force (KGF)	89.2±10%
Tensile strength (MPa)	21.02±10%
Deformation at the point of maximum force (mm)	12.02±10%
Elongation at yield point (%)	7.69±10%
Elongation at break (%)	21.25±10%
Maximum flexural strength (MPa)	16.50±10%
Flexural modulus of elasticity (MPa)	425.80±10%
Hardness (shore D)	60~70
Impact strength (j/m)	86.7±10%
Tensile modulus (MPa)	209.35±10%

Get The Latest Price Today

Printing Parameters of 405 nm Jewelry High Wax Casting Resin

Series	High Wax Casting Resin
Model	WR-JH
Color	Dark Green/Yellow/Purple
Recommended Bottom Expose Time(Light Intensity 3500~4500μw/cm²)	40-50S
Recommended Expose time(Light Intensity 3500~4500μw/cm²)	8-10S
Bottom Lift Distance	6mm
Lifting Distance	6mm
Bottom Lift Speed	60mm/min
Lift Speed	80mm/min
Retract Speed	150mm/min
Absorption Band	385~410nm

Start A Project With Us

Digital Jewelry Process of 405 nm Jewelry High Wax Casting Resin

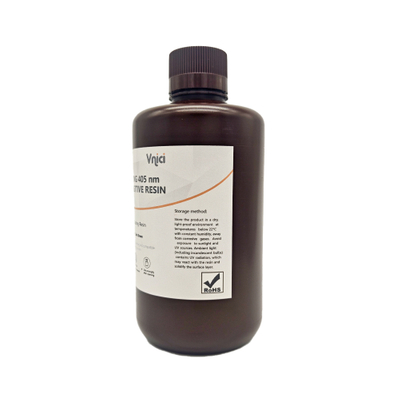

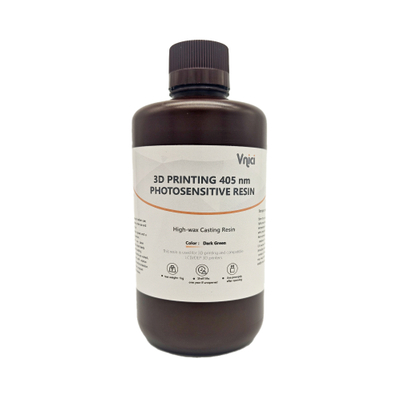

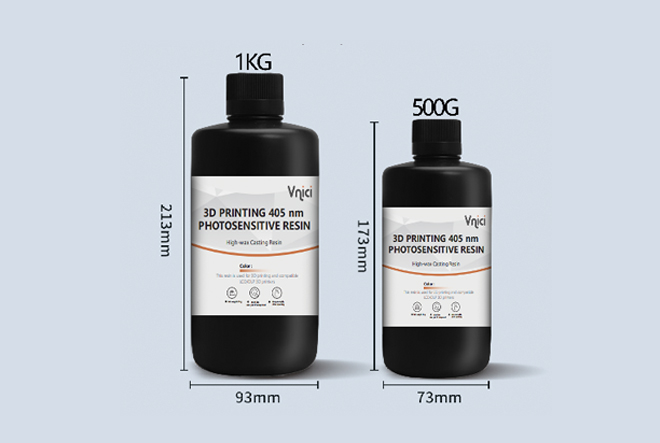

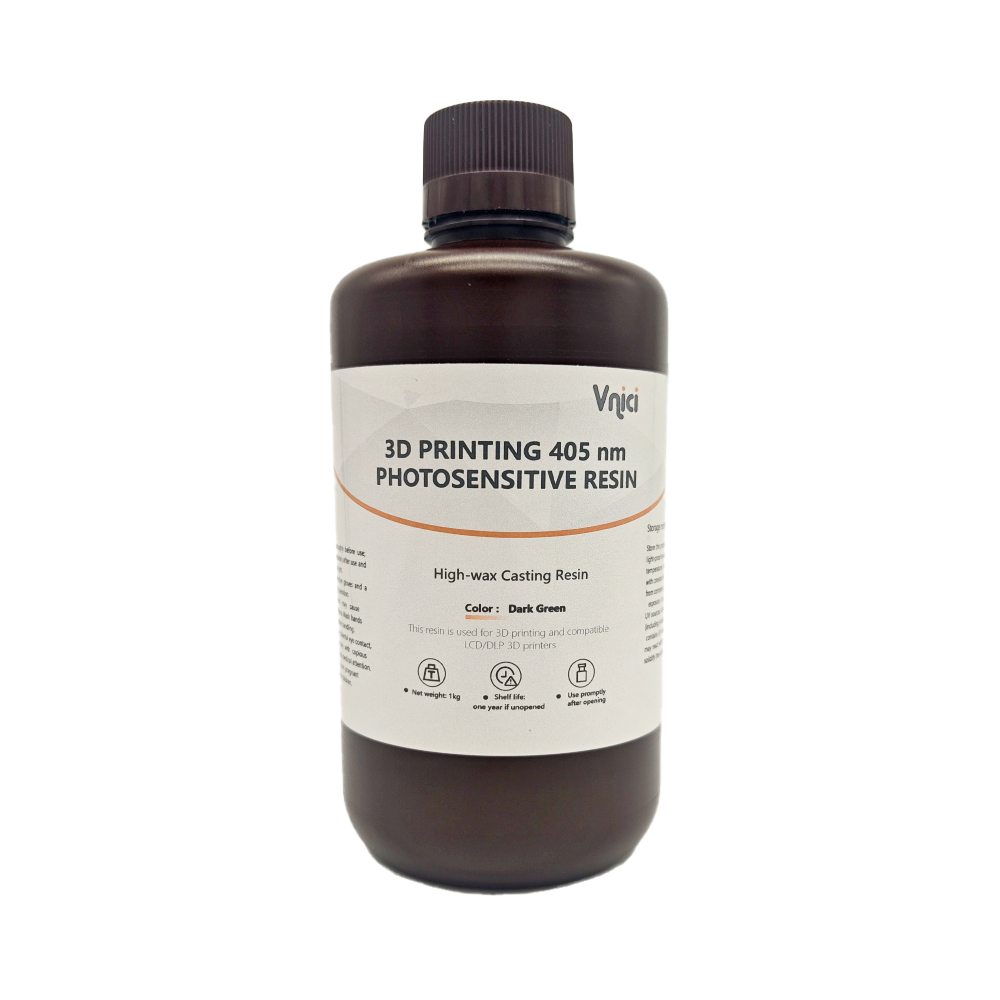

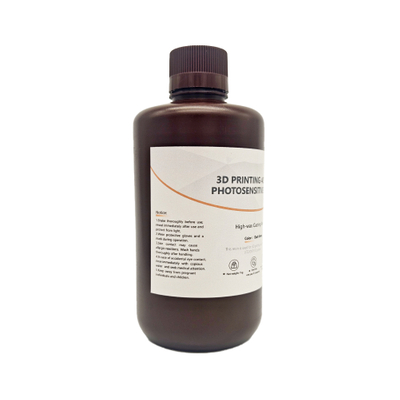

Wrap of 3D Printing Jewelry High Wax Casting Resin (405nm UV) | WR-JH

No inner plug, easy to open and close |Thickened bottle, not dented | Opaque black,completely blackout

Note: The packaging is for reference only and may vary slightl from batch to batch

Get Technical Support

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology

1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology

1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

Start an Order With Us

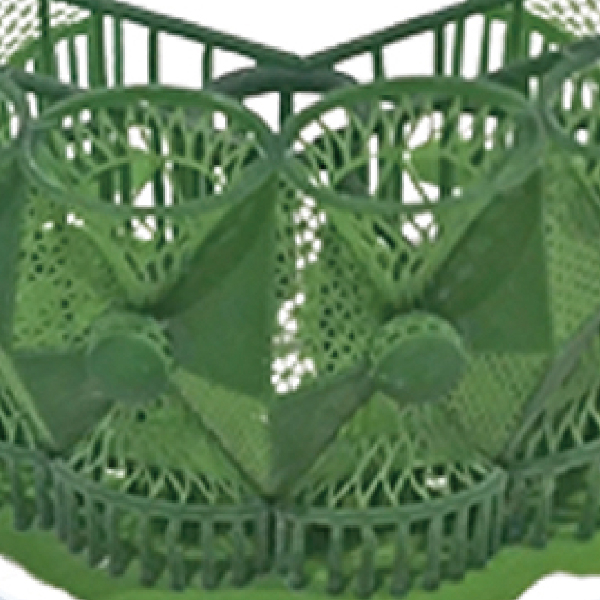

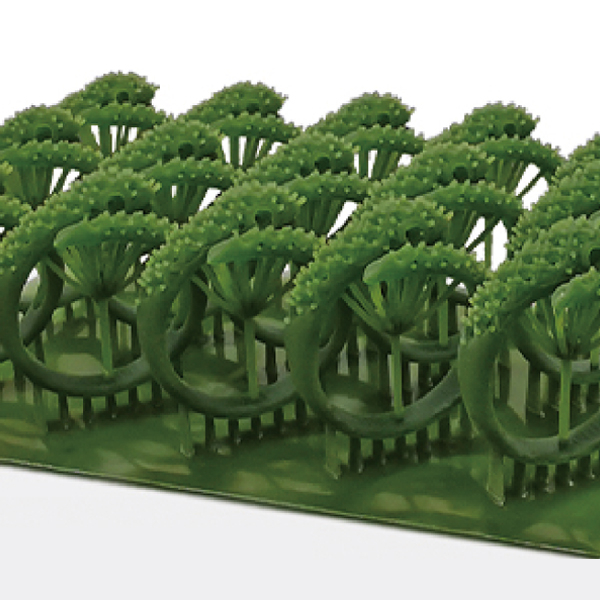

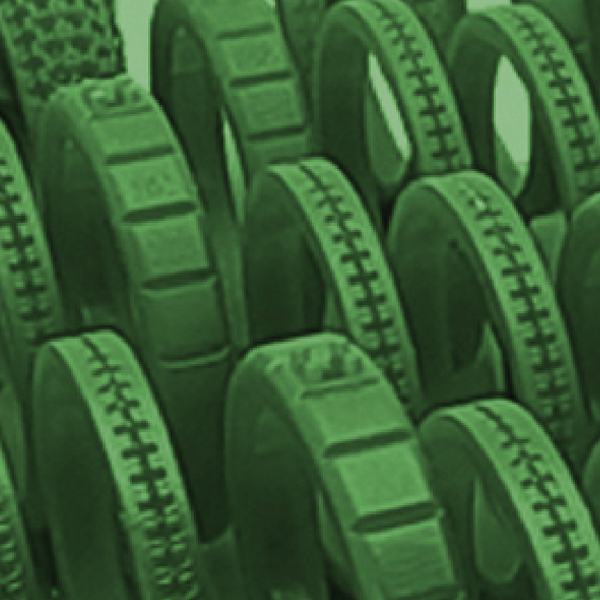

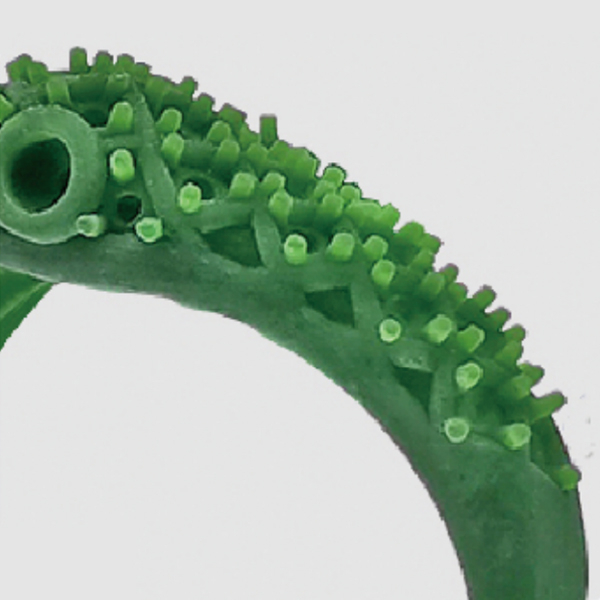

Model Display of 3D Printing Jewelry High Wax Casting Resin (405nm UV) | WR-JH

Send Us Your Inquiry Today

Precautions

Precautions for use and storage plan

Safety Precautions

Please shake it evenly before using it, seal it in time after use, and keep it away from light
Please wear protective equipment such as gloves and masks when using
Wash hands thoroughly after operation
Skin contact may cause allergies, if irritation or rash occurs, please seek medical attention in time
If it gets into the eyes accidentally, please wash it off with plenty of water immediately and go to the doctor
Do not let pregnant women and children touch this product
Please dispose of this product container at an approved waste treatment plan

Post-Processing And Cleaning

Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
Use an air gun or hair dryer to remove the surface cleaning fluid;
Remove most of the supports before post-curing, and remove the details of supports and modify the surface after post-curing;
Adjust the corresponding post-curing time according to the selected post-curing.

Storage Method

Please store the product in a dry and ventilated place without corrosive gas.Can not be placed in the sun, damp places.
