3D Printing Plant-based ABS Resin (405nm UV) | WE-PB

Special for LCD/CLP 3D printing

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Plant-based ABS Photosensitive Resin for 3D Printing
1
1
2
3

VNICI MATERIALS

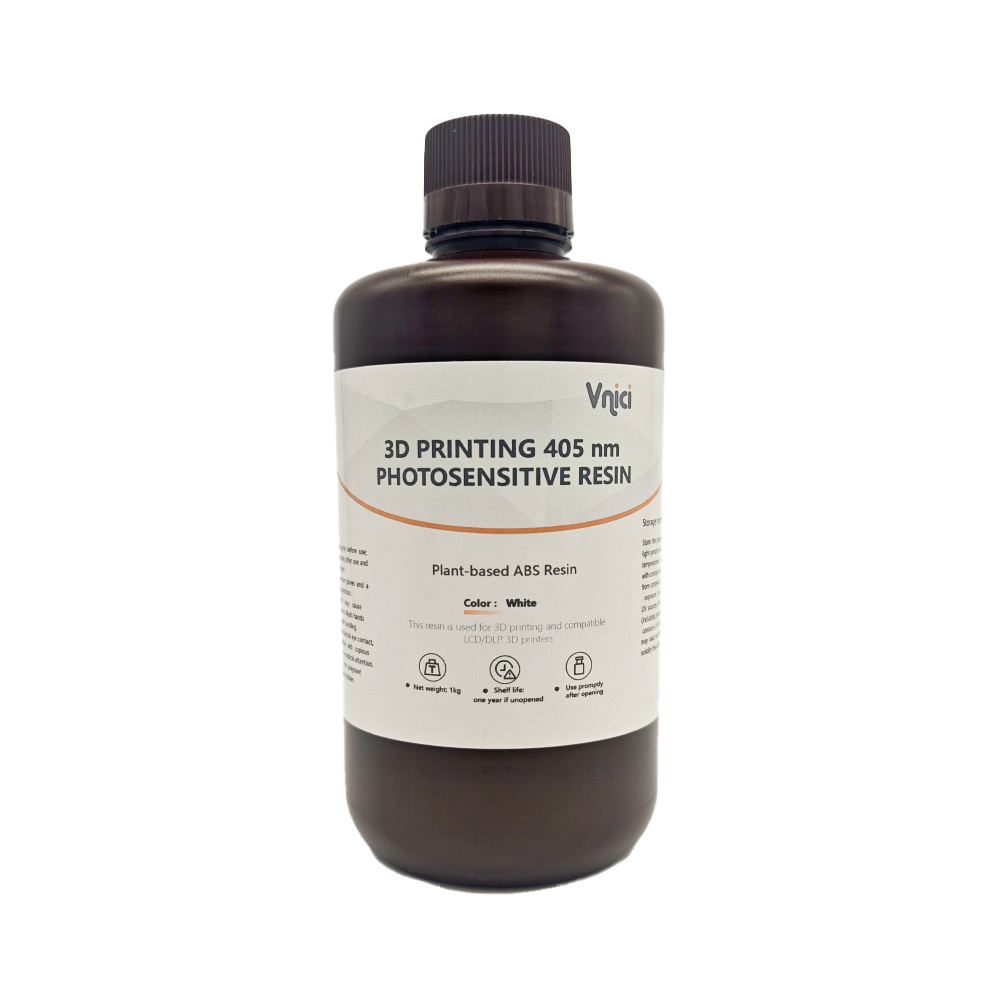

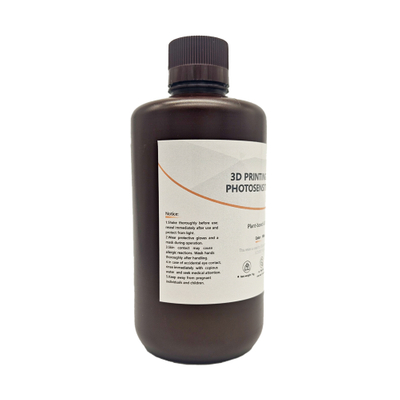

Plant-based ABS Photosensitive Resin for 3D Printers

Special for LCD/CLP 3D printing
plant-based resin, derived from soybeans, is eco-friendly, low-odor, BPA/VOC-free. It boasts high toughness, hardness, impact resistance, precise molding, pure color, and supports drilling/tapping, ideal for industrial parts, models, and figures.
  • Low odor
    Low odor
  • Green
    Green

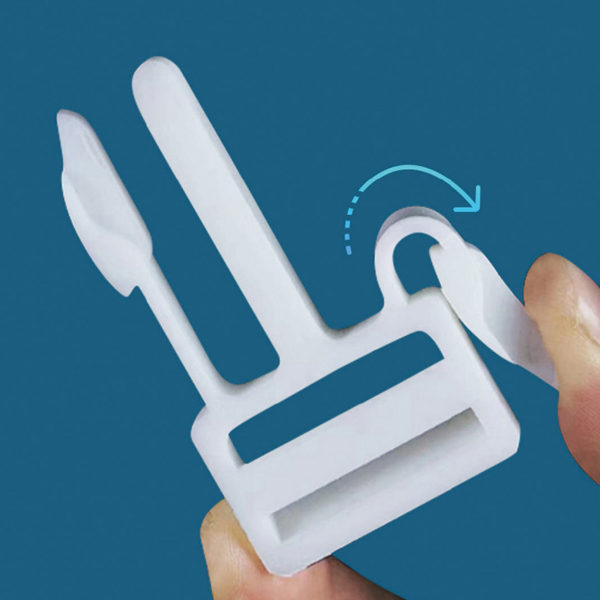

  • Good toughness
    Good toughness
  • Anti-impact
    Anti-impact
  • High hardness
    High hardness

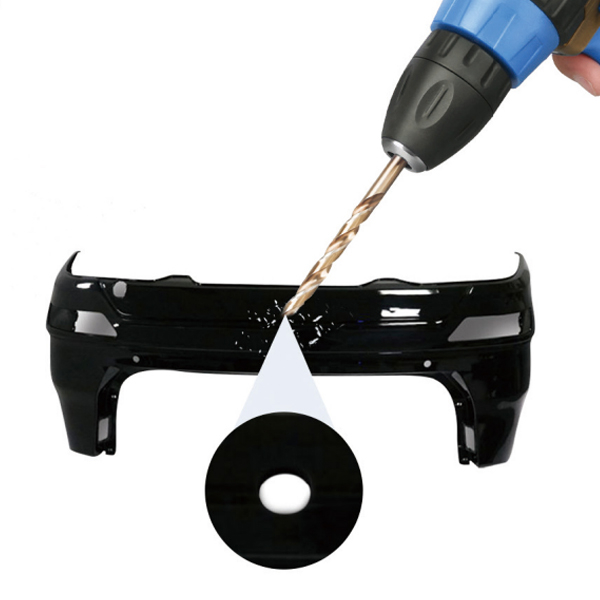

  • Can be drilled and tapped
    Can be drilled and tapped

Key Features of 3D Printing with Plant-based ABS Resin (405nm UV) | WE-PB

Applicable to CLD/DLP 3D Printers with Plant-based ABS Resin (405nm UV) | WE-PB

Mechanical Properties of ABS-like Plant-based Resin

Maximum force (KGF) 116.5±10%
Tensile strength (MPa) 27.46±10%
Deformation at the point of maximum force (mm) 12.33±10%
Elongation at yield point (%) 5.57±10%
Elongation at break (%) 21.8±10%
Maximum bending strength (MPa) 20.27±10%
Flexural modulus of elasticity (MPa) 531.27±10%
Hardness (Shore D) 78~86
Impact strength (J/m) 58±10%
Tensile modulus (MPa) 328.5±10%

Color of 405 nm Plant-based ABS Resin

Including mainstream colors in the market, the molding color is pure, and the coloring effect in the later stage is good.
Rigid 8K Photosensitive Resin color
Tips: Due to different lighting or display settings, the product has different degrees of color difference, the final color please refer to the actual product.

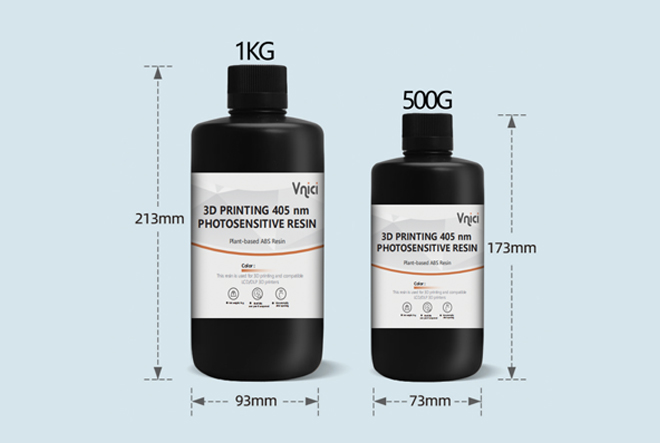

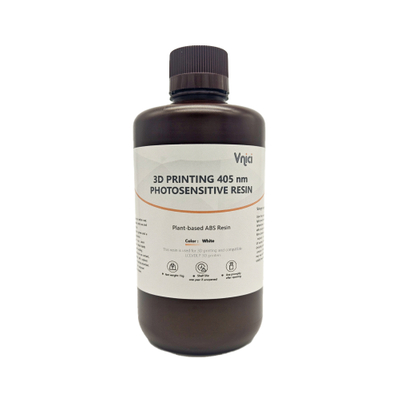

Wrap of 3D Printing Plant-based ABS Resin (405nm UV) | WE-PB

Note:The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.
warp of Plant-based ABS Resin WE-PB

Low Odor of Plant-Based Resin Properties

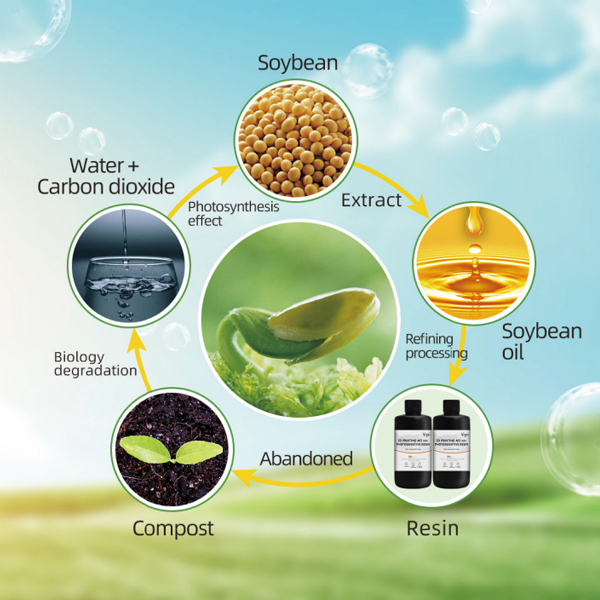

The plant-based resin is extracted from soybeans, does not contain BPA, does not volatilize VOCs, and has no irritating odor

Ordinary Rigid Resin


Resin odor
Pungent odor
Raw material
Chemical raw materials
Clean odor
The pungent smell of alcohol mixed with resin
Wavelength
405nm
whether
No Biodegradable

Plant-Based Resin Properties


  Resin odor
low odor
  Raw material
Plant extracts
  Clean odor
Alcohol smell
  Wavelength
355nm-410nm
  whether
Biodegradable

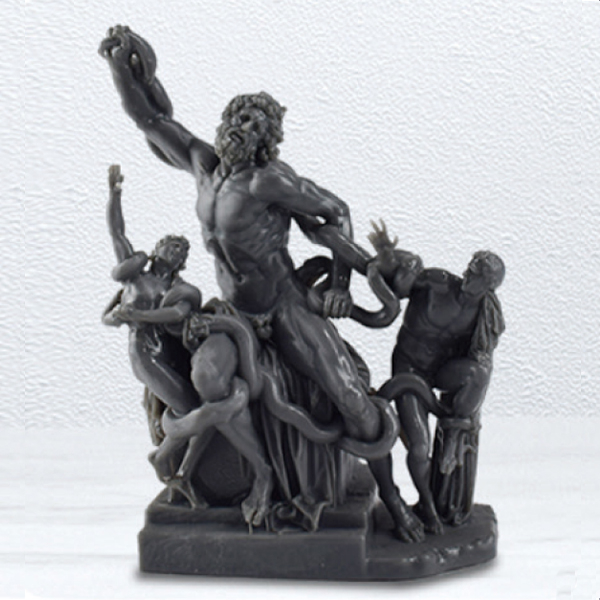

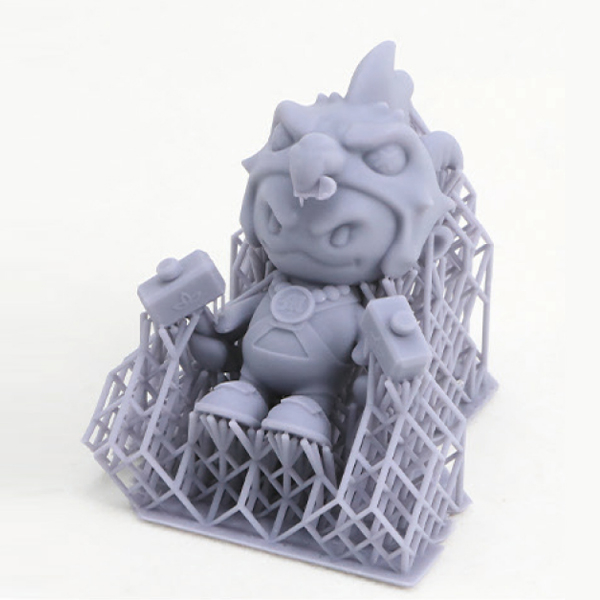

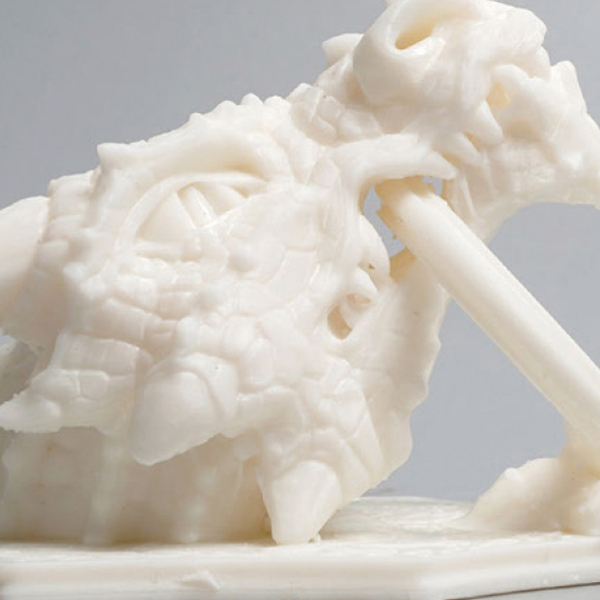

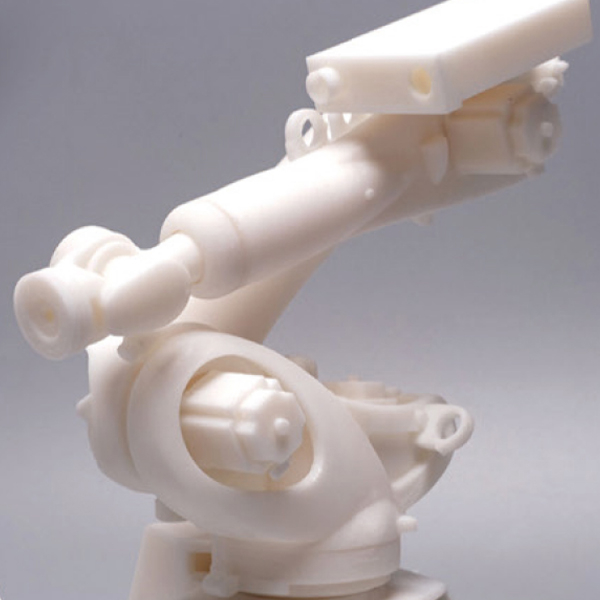

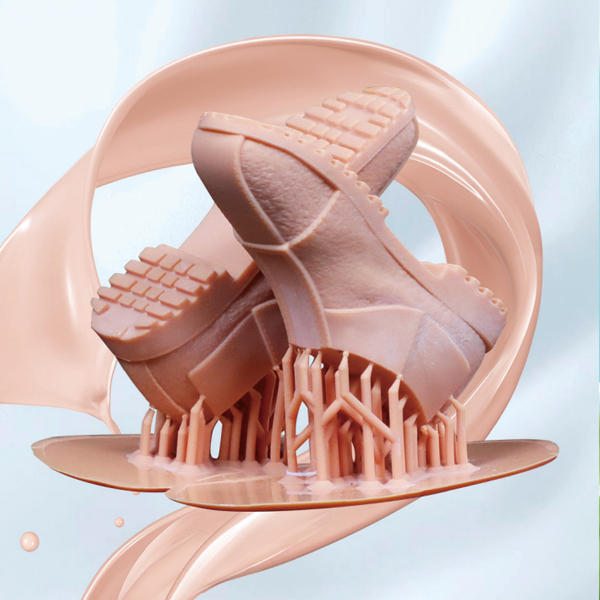

Model Display of 3D Printing Plant-based ABS Resin (405nm UV) | WE-PB

Application Industry/Field:Industrial parts, structural parts models,animation figures, fixtures, glasses, etc.

Precautions

Precautions for use and storage.
  1. Please shake it evenly before using it, seal it in time after use, and keep it away from light
  2. Please wear protective equipment such as gloves and masks when using
  3. Wash hands thoroughly after operation
  4. Skin contact may cause allergies, if irritation or rash occurs, please seek medical attention in time
  5. If it gets into the eyes accidentally, please wash it off with plenty of water immediately and go to the doctor
  6. Do not let pregnant women and children touch this product
  7. Please dispose of this product container at an approved waste treatment plant
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the surface cleaning fluid;
  3. Remove most of the supports before post-curing, and remove the details of supports and modify the surface after post-curing;
  4. Adjust the corresponding post-curing time according to the selected post-curing.

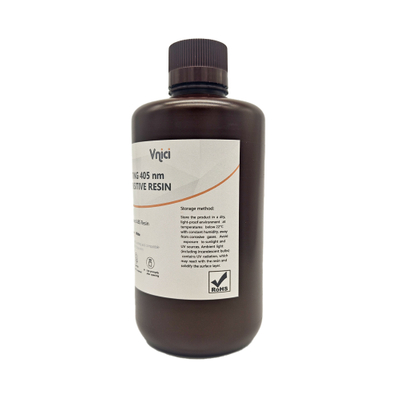

Please store the product in a dry and ventilated place without corrosive gas.Can not be placed in the sun, damp places.
