Restoration Model Resin (405nm UV) | WR-RM for 3D Printers

Repair Model  |  Ultra-low Shrinkage | Low Odor and Non-toxic | Anti-scratch
A low-irritation, hypoallergenic 3D UV dental resin designed for precise model fabrication. It delivers stable curing, high accuracy, and smooth surface finishes.
Suitable for dental tooth models, implant restoration, and various dental and medical applications.
Model: WR-RM
  • Biocompatibility
    Low skin irritation
  • hypoallergenic skin
    Hypoallergenic skin

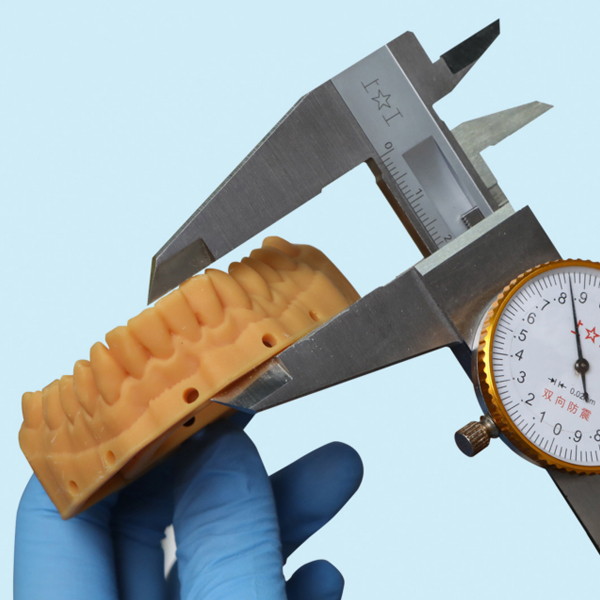

  • low shrinkage
    Low shrinkage
  • temperature resistance
    High hardness
  • high adaptability
    High hardness
  • cost-effective
    Cost-effective

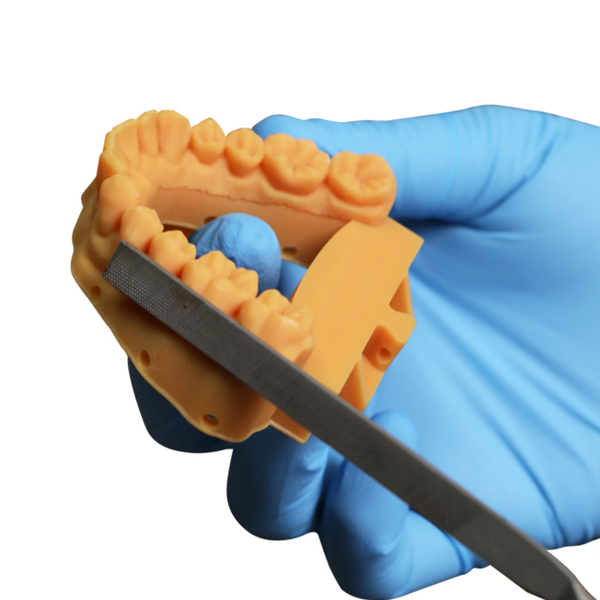

  • scratch-resistant surface
    Scratch-resistant surface
  • Short curing time
    Short curing time
  • high precision
    High precision
  • bright colors
    Bright colors

Key Features of 3D Printing Restoration Model Resin (405nm UV) | WR-RM

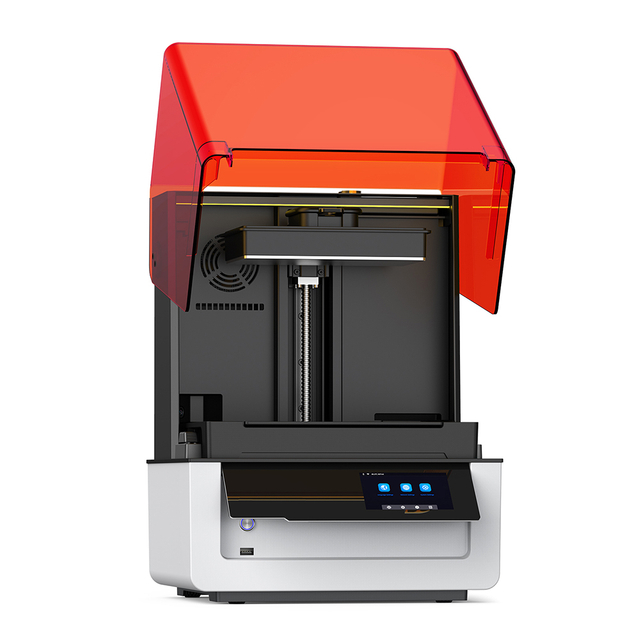

Applicable to CLD/DLP 3D Printers with Restoration Model Resin (405nm UV) | WR-RM

Material Parameters of 3D Printing Restoration Model Resin (405nm UV) | WR-RM

Flexural modulus 1162.23 MPa ±10%
Elongation at break 12.89% ±10%
Bending strength 52.48 MPa ±10%
Hardness (Shore D) 85–88 D
Density 1.05–1.28 g/cm³
Notched impact strength 144 j/m ±10%
Maximum pulling force 2473 N ±10%
Viscosity 150–300 mPa·s
Tensile strength 52.7 MPa ±10%
Tensile modulus 397.96 MPa ±10%
Test chamber temperature 23°C ±2°C
Humidity in test room 50% RH ±5% RH
Test standard ASTM
Post-curing:The test paper is post-cured for 2 minutes with 200 mW/cm² 405 nm in water

Printing Parameters of 405nm Restoration Model Resin

Series Restoration Model Resin
Model WR-RM
Color Light Gray / Apricot
Recommended Bottom Exposure Time
(3500–4500 μW/cm²)		 20–30 s
Recommended Exposure Time
(3500–4500 μW/cm²)		 2.5–4.5 s
Bottom Lift Distance 6 mm
Lifting Distance 6 mm
Bottom Lift Speed 60 mm/min
Lift Speed 80 mm/min
Retract Speed 150 mm/min
Absorption Band 385–410 nm

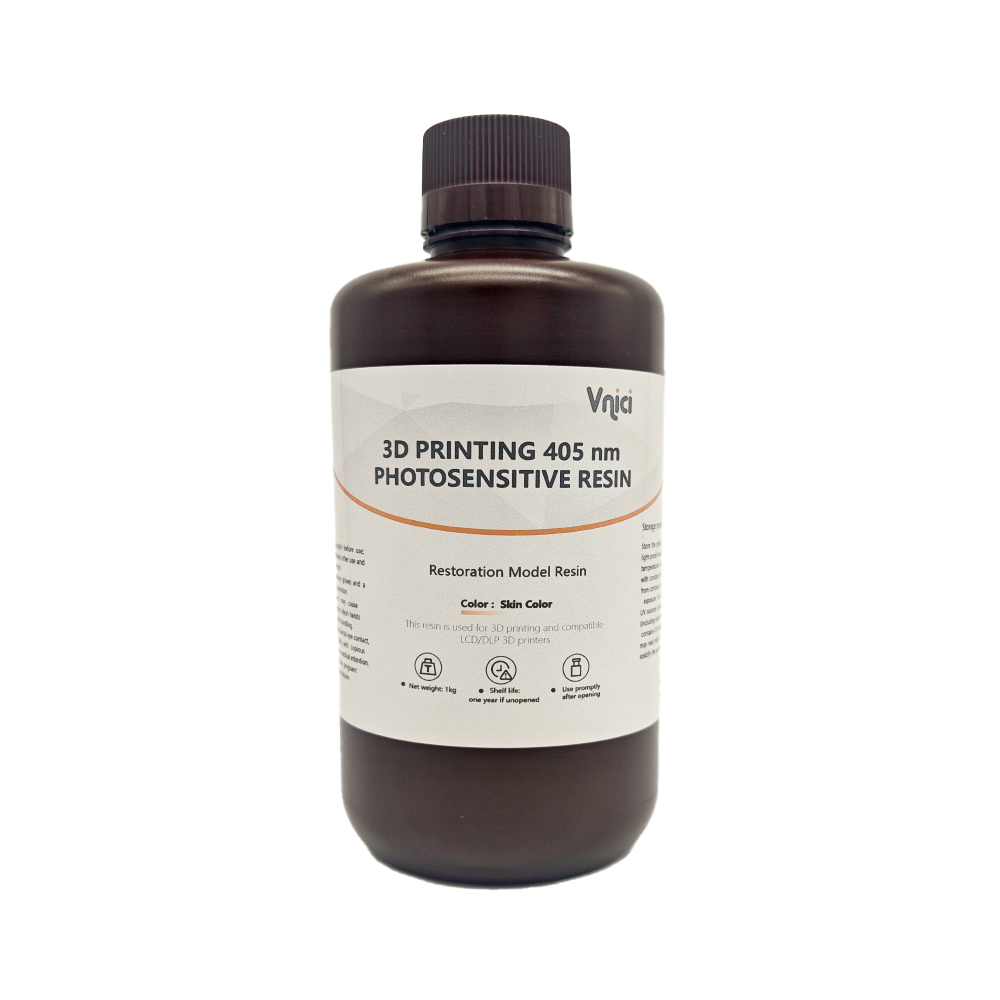

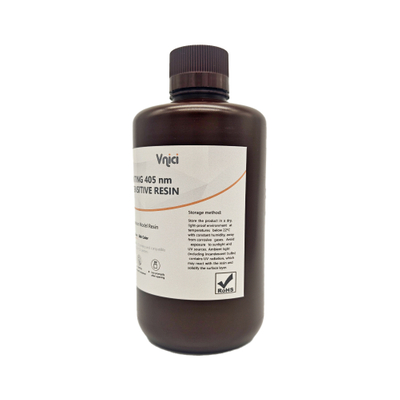

Wrap of 3D Printing Restoration Model Resin (405nm UV) | WR-RM

No inner plug, easy to open and close
Thickened bottle should not be sunken
Opaque Black Complete Blackout

Note: The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.

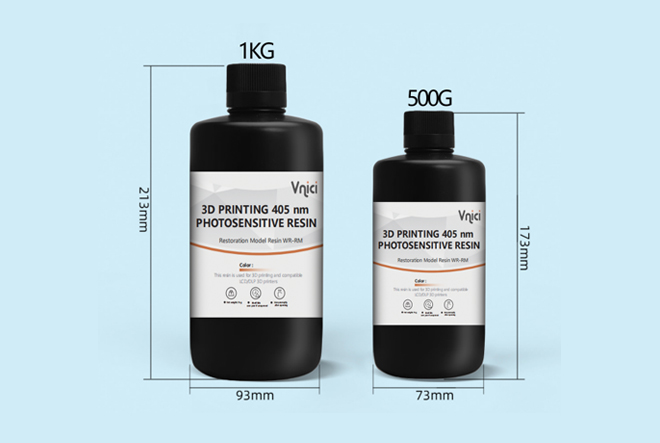

Wrap of 3D Printing Restoration Model Resin 405nm

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

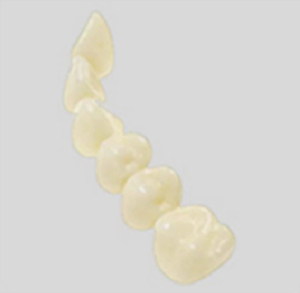

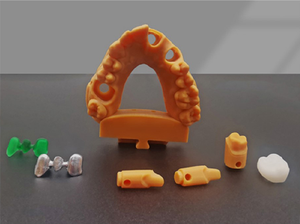

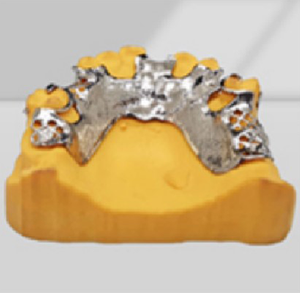

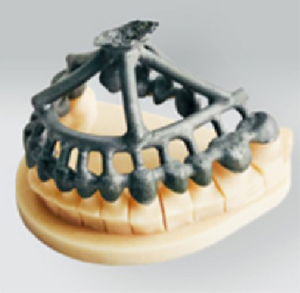

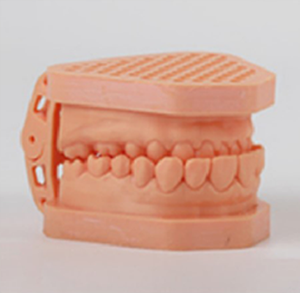

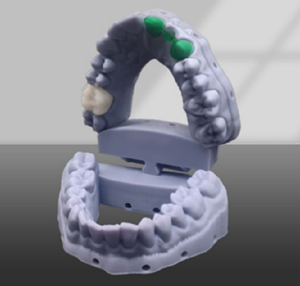

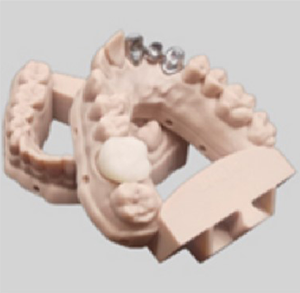

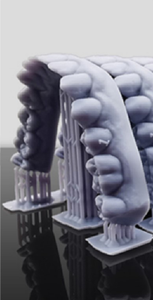

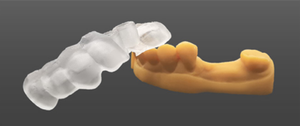

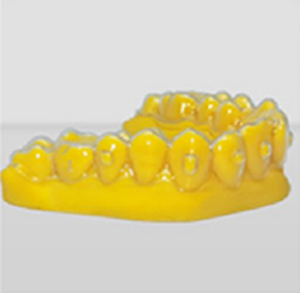

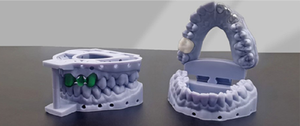

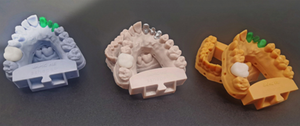

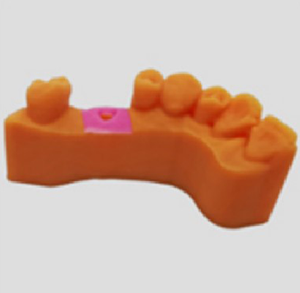

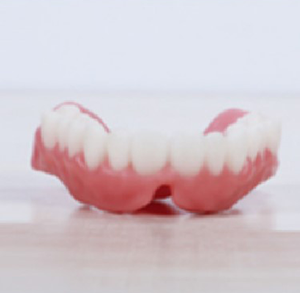

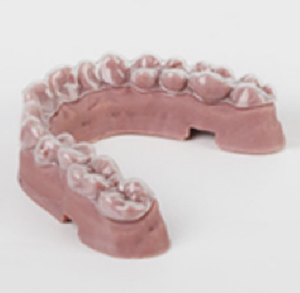

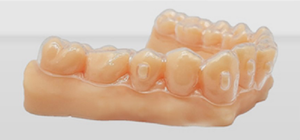

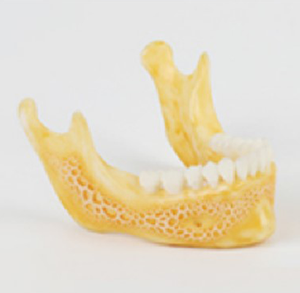

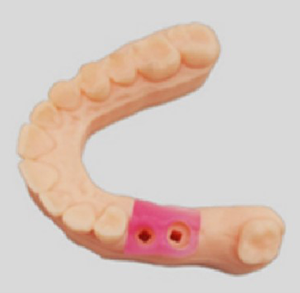

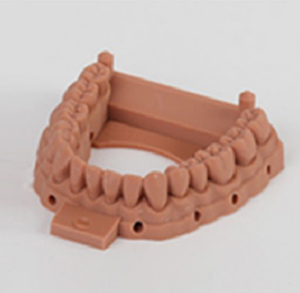

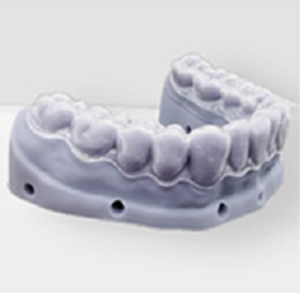

Model Display of 3D Printing Restoration Model Resin (405nm UV) | WR-RM

Instructions for Use of Materials

Aftertreatment and Cleaning   |   Safety Precautions   |   Correct Storage Method
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the face-free cleaning solution;
  3. Before post-curing, remove most of the support material, and after post-curing, remove the details of the support and modify the surface treatment;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
  1. This product is for one-time use and cannot be reused;
  2. Use only under good ventilation, please pay attention to air circulation and take protective measures when using;
  3. If you accidentally touch your eyes, please wash them with water immediately. If you still feel unwell after washing, please seek medical attention immediately;
  4. If you accidentally touch the clothes, please change them immediately, and wash the skin and clothes with soap and water immediately;
  5. Do not put the resin in contact with food, if swallowed accidentally, do not induce vomiting, keep resting, seek medical advice in time;
  6. Disposal of wastes shall be disposed of in accordance with the requirements of local environmental regulations.
Please store the product in a cool place below 25 degrees and avoid exposure to sunlight. Generally, visible light may cause resin polymerization and gelation. Can not be placed in the sun, humidity, corrosive gas place.
