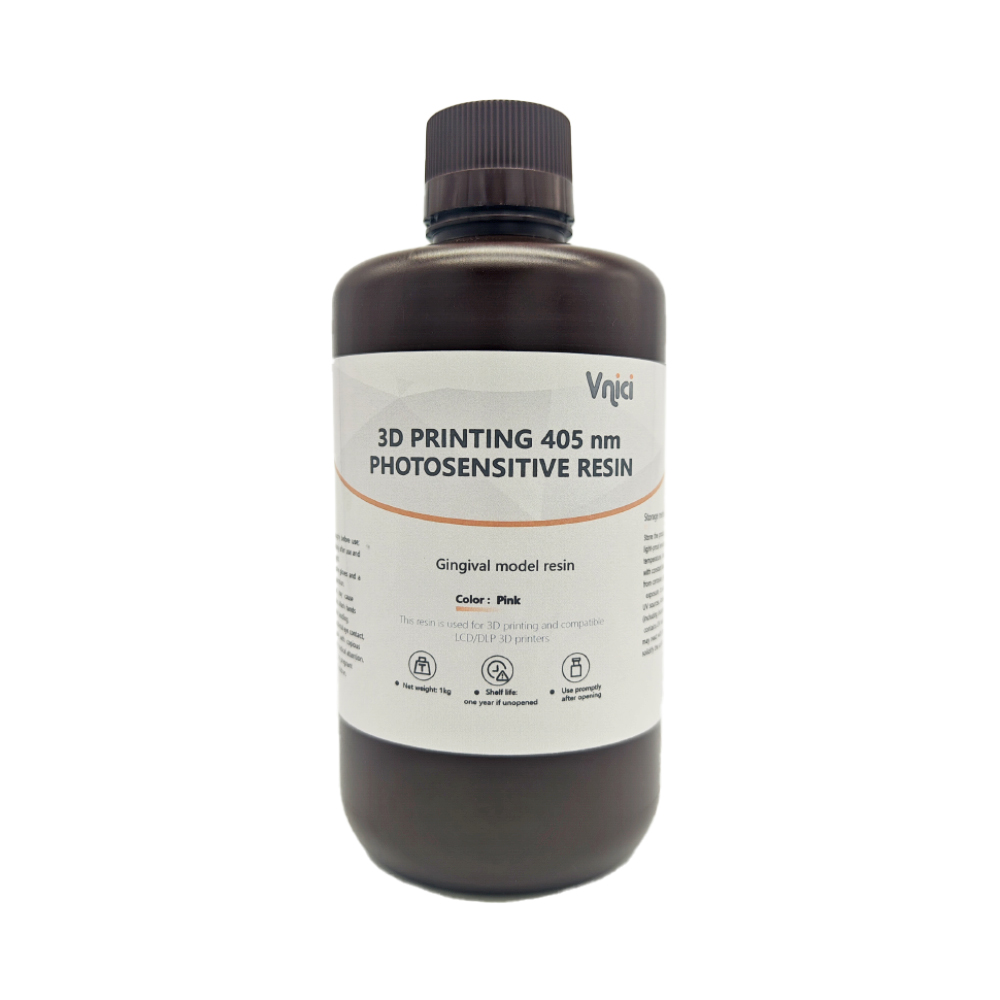

Gingival Model Resin (405nm UV) | WR-GM for 3D Printers

High Dimensional Stability  |  Easy to Trim & Fit  |  Natural Gum Color  |  Flexible Material

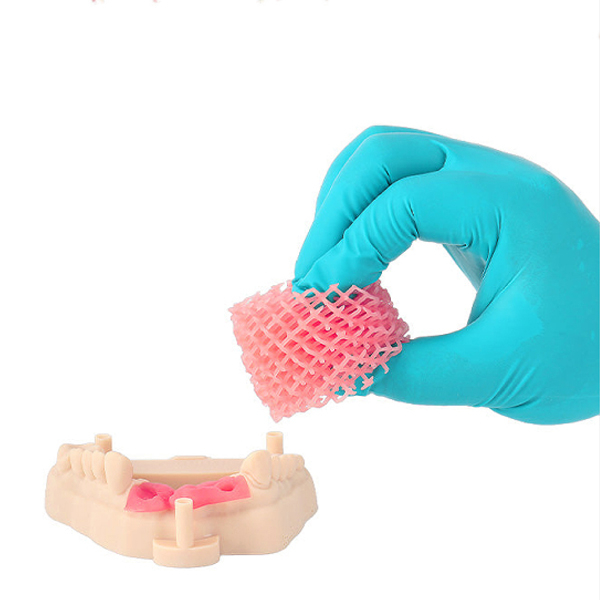

Gingival Model Resin is a flexible resin for printing soft gum masks for model prints. It has high dimensional stability. The gingival impression can be easily trimmed for an optimal fit of the implant model. It is a natural gum color.
  • low shrinkage
    Low shrinkage
  • high flexibility
    Flexibility
  • High flexibility
    High flexibility
  • high precision
    High precision
  • temperature resistance
    High temperature resistance
  • good liquidity
    Good liquidity
  • Soft resin
    Soft resin
  • Silicone free
    Silicone free
  • Tear resistance
    Tear resistance
  • Soft resin
    Soft resin

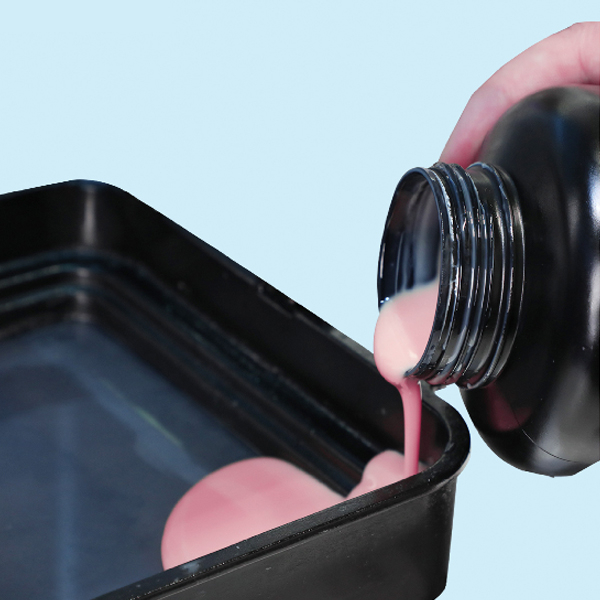

Key Features of 3D Printing Gingival Model Resin (405nm UV) | WR-GM

Applicable to CLD/DLP 3D Printers with Gingival Model Resin (405nm UV) | WR-GM

Material Parameters of 3D Printing Gingival Model Resin (405nm UV) | WR-GM

Maximum tension 55.2 N ± 10%
Elongation at break 110.28% ± 10%
Tensile modulus 1.32 MPa ± 10%
Hardness (Shore A) 5-60A
Tensile strength 1.33 MPa ± 10%
Viscosity 350-550 MPa·s
Density 1.05-1.25 g/cm³
Absorption wavelength 355-410nm
Test room temperature 23 °C ± 2 °C
Test room humidity 50% RH ± 5% RH
Test paper test standard ASTM
Post-curing 200 mw/cm² for test strip in water, Cure for 2 minutes after 405 nm

Printing Parameters of 405 nm Gingival Model Resin

Series Gingival Resin
Model WR-GM
Color Pink
Recommended Bottom Expose Time (Light Intensity 3500~4500μw/cm²) 20~30S
Recommended Expose time (Light Intensity 3500~4500μw/cm²) 4~8S
Bottom Lift Distance 6mm
Lifting Distance 6mm
Bottom Lift Speed 60mm/min
Lift Speed 80mm/min
Retract Speed 150mm/min
Absorption Band 385~410nm

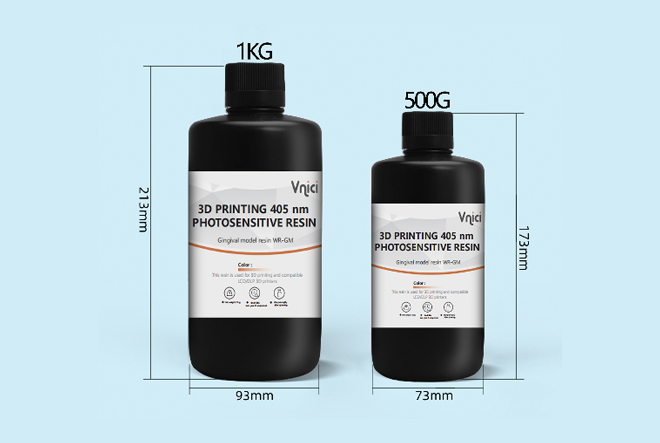

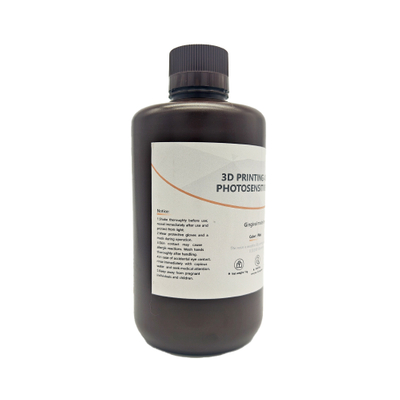

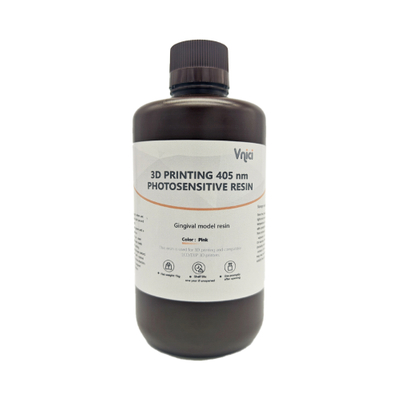

Wrap of 3D Printing Gingival Model Resin (405nm UV) | WR-GM

No inner plug, easy to open and close
Thickened bottle should not be sunken
Opaque Black Complete Blackout

Note: The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.
Wrap of 405nm Gingival Resin

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

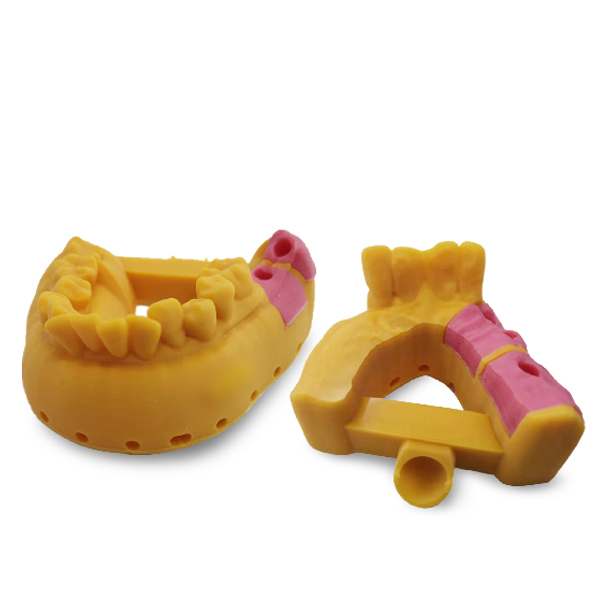

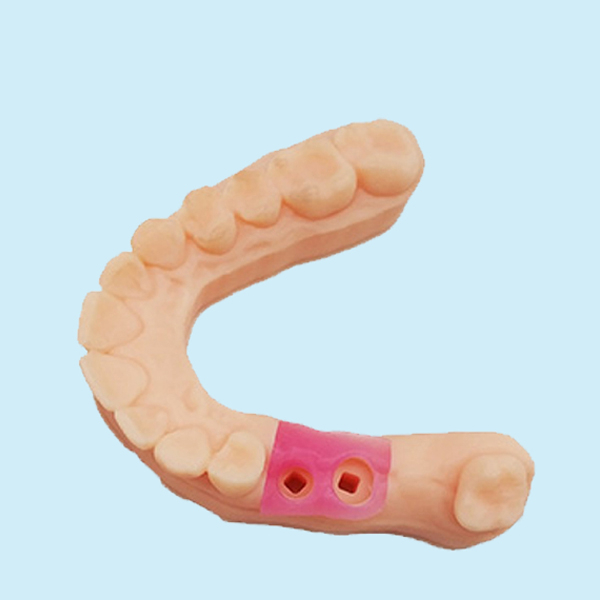

Model Display of 3D Printing Gingival Model Resin (405nm UV) | WR-GM

Instructions for Use of Materials

Aftertreatment and Cleaning   |   Safety Precautions   |   Correct Storage Method
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the face-free cleaning solution;
  3. Before post-curing, remove most of the support material, and after post-curing, remove the details of the support and modify the surface treatment;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
  1. This product is for one-time use and cannot be reused;
  2. Use only under good ventilation, please pay attention to air circulation and take protective measures when using;
  3. If you accidentally touch your eyes, please wash them with water immediately. If you still feel unwell after washing, please seek medical attention immediately;
  4. If you accidentally touch the clothes, please change them immediately, and wash the skin and clothes with soap and water immediately;
  5. Do not put the resin in contact with food, if swallowed accidentally, do not induce vomiting, keep resting, seek medical advice in time;
  6. Disposal of wastes shall be disposed of in accordance with the requirements of local environmental regulations.
Please store the product in a cool place below 25 degrees and avoid exposure to sunlight. Generally, visible light may cause resin polymerization and gelation. Can not be placed in the sun, humidity, corrosive gas place.
