Jewelry Direct Cast Resin (405nm UV) | WR-WT for 3D Printers

High Wax Content | High Precision | Strong Castability
This 405nm high-performance jewelry direct cast resin boasts over 70% wax content, excellent liquidity, and clean burnout with zero ash or residue. It delivers high precision, dimensional stability, strong castability, and a crack-resistant finish, with a delicate surface requiring no polishing. Fully compatible with most 405nm LCD/DLP printers, it achieves finished-product-level casting effects, perfect for diamond rings, pendants, coins, and thick-walled jewelry. With reliable mechanical strength and easy post-processing, it’s the ideal choice for professional jewelry production.
  • high precision
    High precision
  • good liquidity
    Good liquidity
  • Burn clean
    Burn clean
  • Stable and non-cracking
    Stable and non-cracking

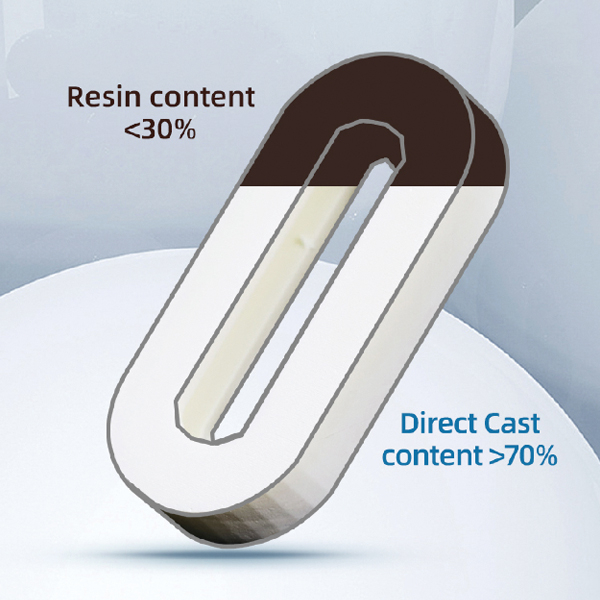

  • High wax content
    High wax content
  • Good dimensional stability
    Good dimensional stability
  • Excellent casting properties
    Excellent casting properties
  • NO ash and no residue
    NO ash and no residue

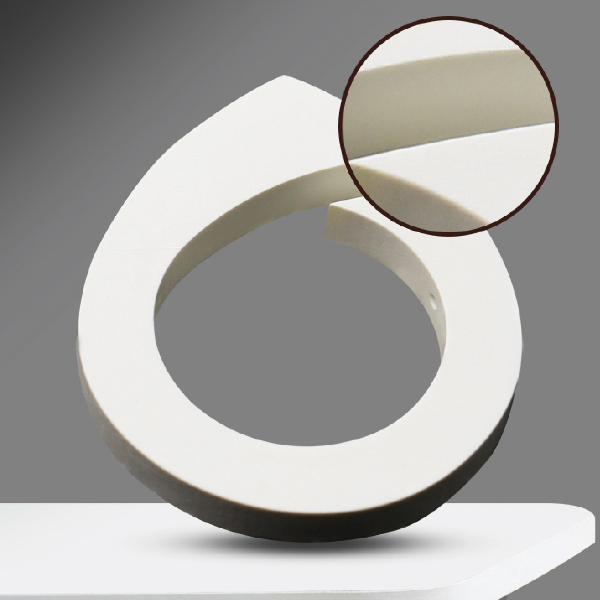

Key Features of 3D Printing with Jewelry Direct Cast Resin (405nm UV) | WR-WT

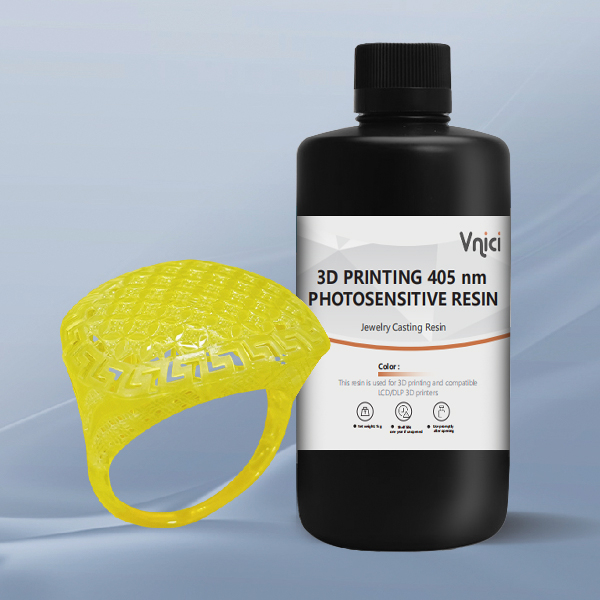

Applicable to CLD/DLP 3D Printers with Jewelry Direct Cast Resin (405nm UV) | WR-WT

Product Parameters of 3D Printing Jewelry Direct Cast Resin (405nm UV) | WR-WT

Maximum force (KGF) 24.7±10%
Tensile strength (MPa) 5.82±10%
Deformation at the point of maximum force (mm) 7.30±10%
Elongation at yield point (%) 8.80±10%
Elongation at break (%) 13.06±10%
Maximum flexural strength (MPa) 4.34±10%
Flexural modulus of elasticity (MPa) 161.15±10%
Hardness (shore D) 50~60
Impact strength (j/m) 37.5±10%
Tensile modulus (MPa) 46.73±10%

Printing Parameters of 405 nm Jewelry Direct Cast Resin

Series White Wax Casting Resin
Model WR-WT
Color Golden
Recommended Bottom Expose Time(Light Intensity 3500~4500μw/cm²) 40~50S
Recommended Expose time(Light Intensity 3500~4500μw/cm²) 8~12S
Bottom Lift Distance 6mm
Lifting Distance 6mm
Bottom Lift Speed 60mm/min
Lift Speed 80mm/min
Retract Speed 150mm/min
Absorption Band 385~410nm

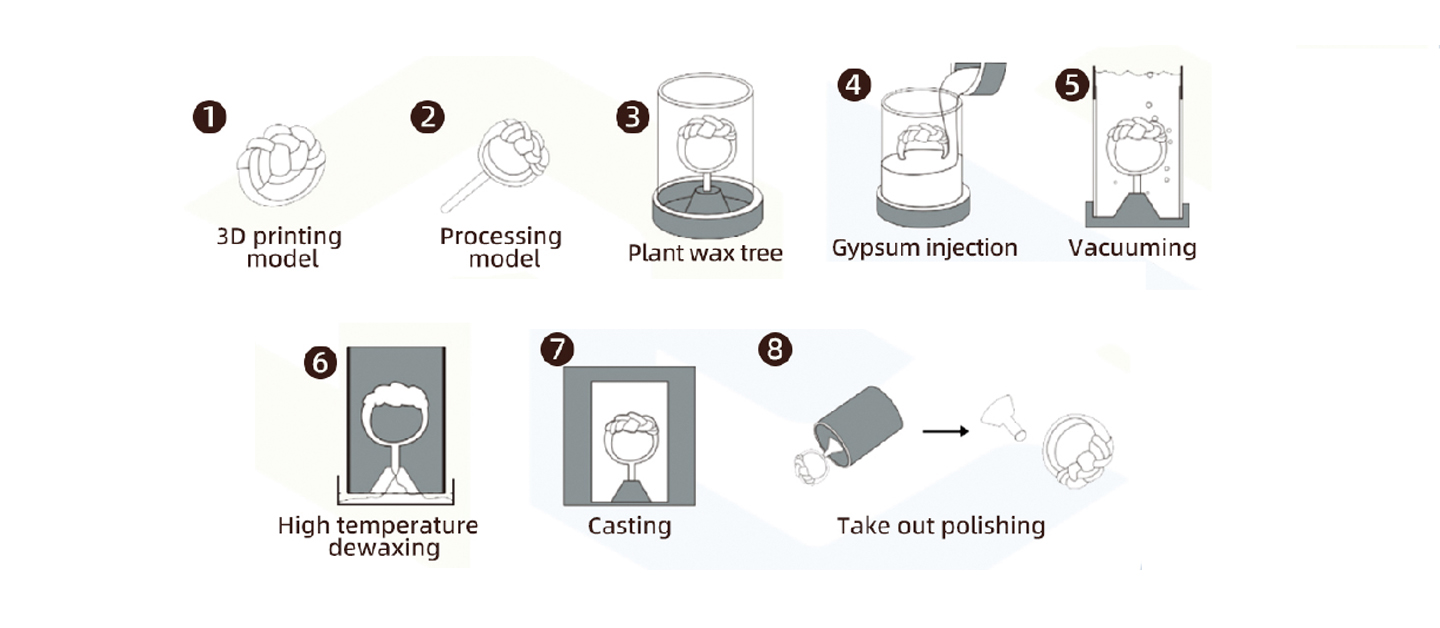

Digital Jewelry Process of 405 nm Jewelry Direct Cast Resin

Digital Jewelry Process

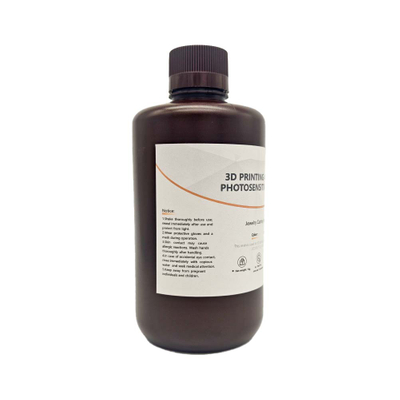

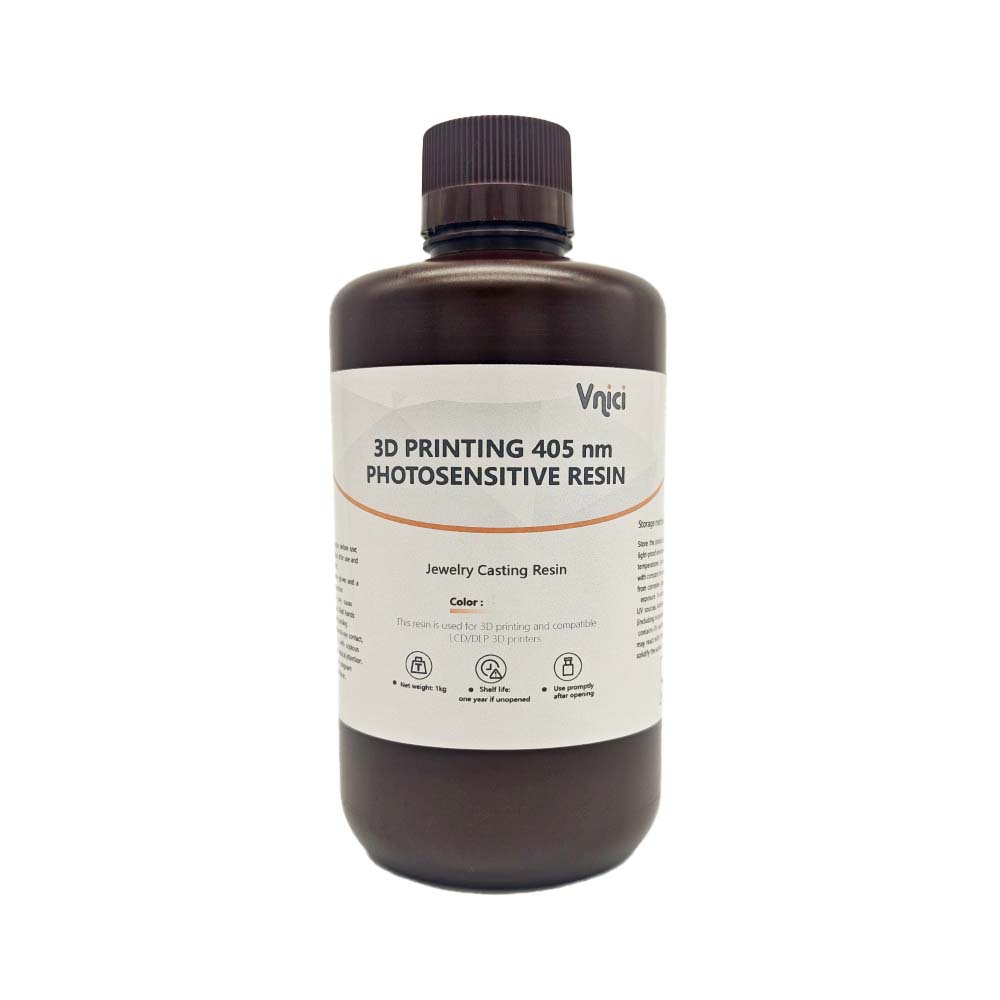

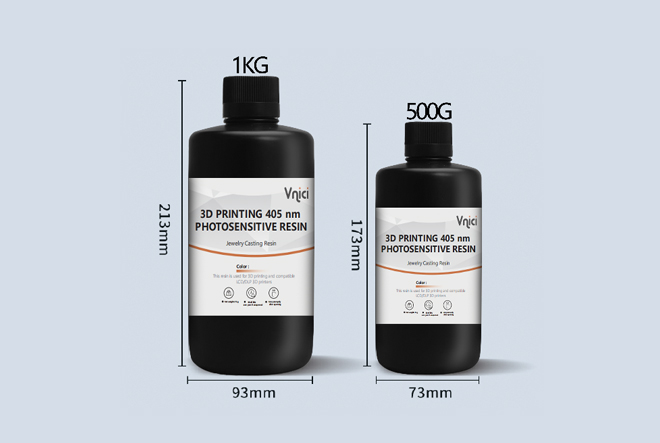

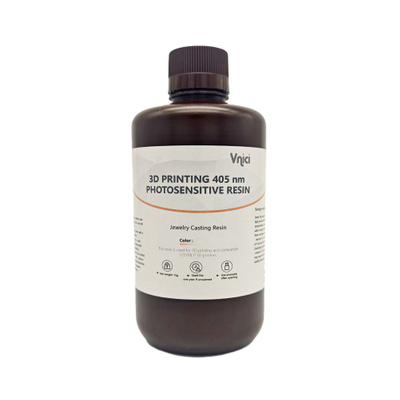

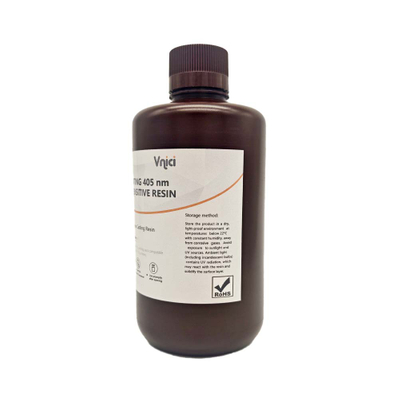

Wrap of 3D Printing Jewelry Direct Cast Resin (405nm UV) | WR-WT

No inner plug, easy to open and close |Thickened bottle, not dented | Opaque black,completely blackout

Note: The packaging is for reference only and may vary slightl from batch to batch
warp of Jewelry Direct Cast Resin

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology


1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology


1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

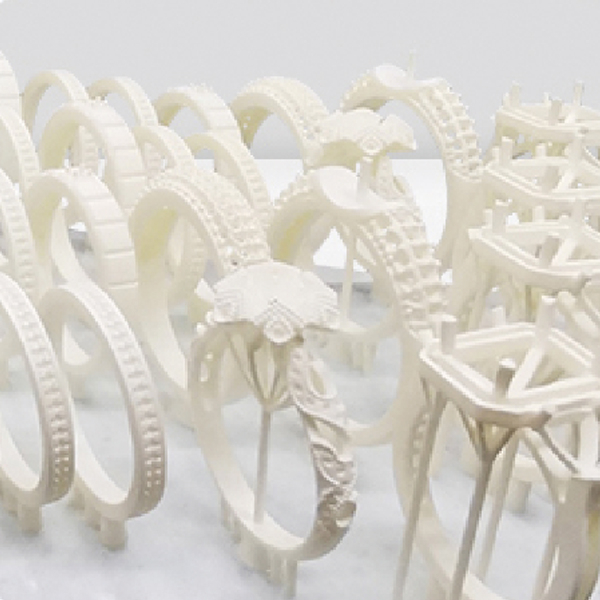

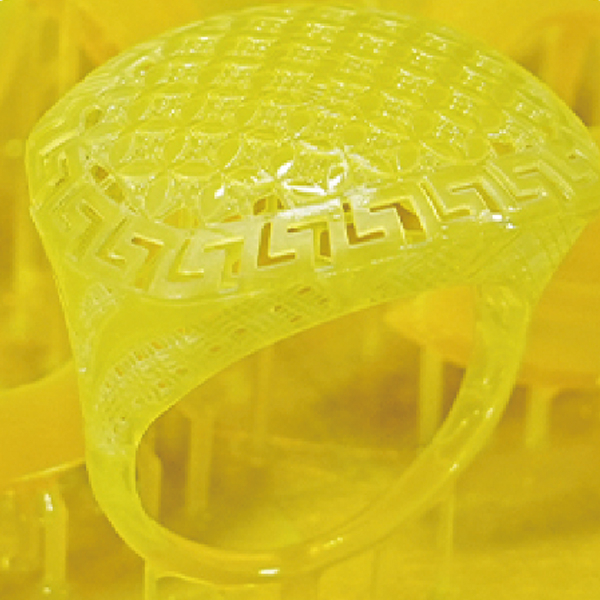

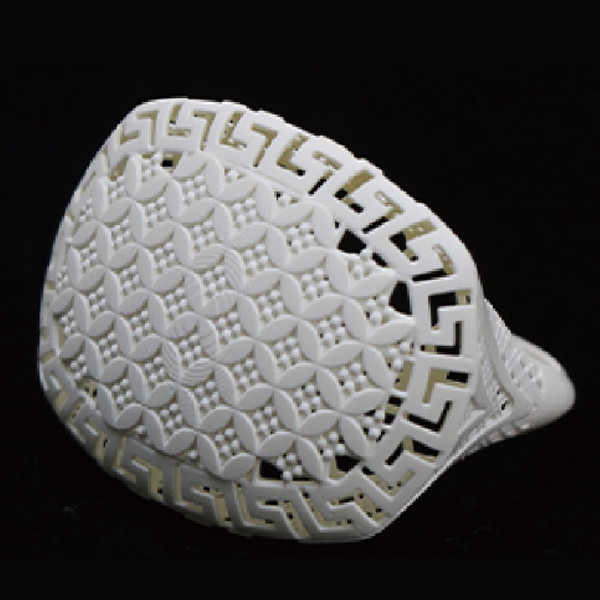

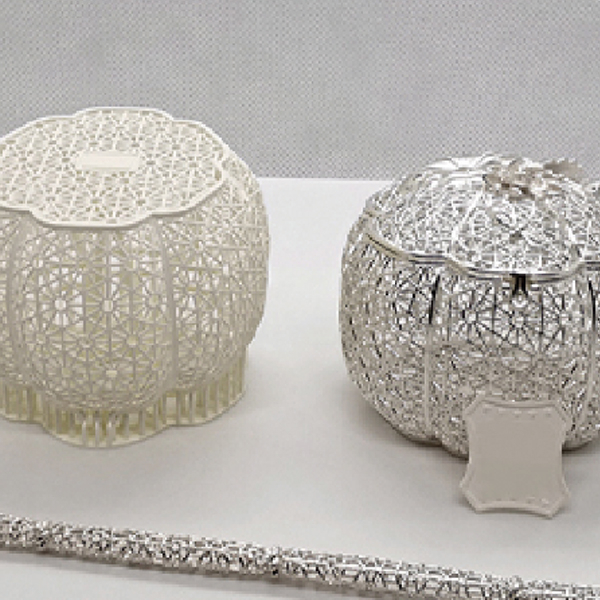

Model Display of 3D Printing Jewelry Direct Cast Resin (405nm UV) | WR-WT

Precautions

Precautions for use and storage plan
  1. Please shake it evenly before using it, seal it in time after use, and keep it away from light
  2. Please wear protective equipment such as gloves and masks when using
  3. Wash hands thoroughly after operation
  4. Skin contact may cause allergies, if irritation or rash occurs, please seek medical attention in time
  5. If it gets into the eyes accidentally, please wash it off with plenty of water immediately and go to the doctor
  6. Do not let pregnant women and children touch this product
  7. Please dispose of this product container at an approved waste treatment plan
  1. Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
  2. Use an air gun or hair dryer to remove the surface cleaning fluid;
  3. Remove most of the supports before post-curing, and remove the details of supports and modify the surface after post-curing;
  4. Adjust the corresponding post-curing time according to the selected post-curing.
Please store the product in a dry and ventilated place without corrosive gas.Can not be placed in the sun, damp places.
