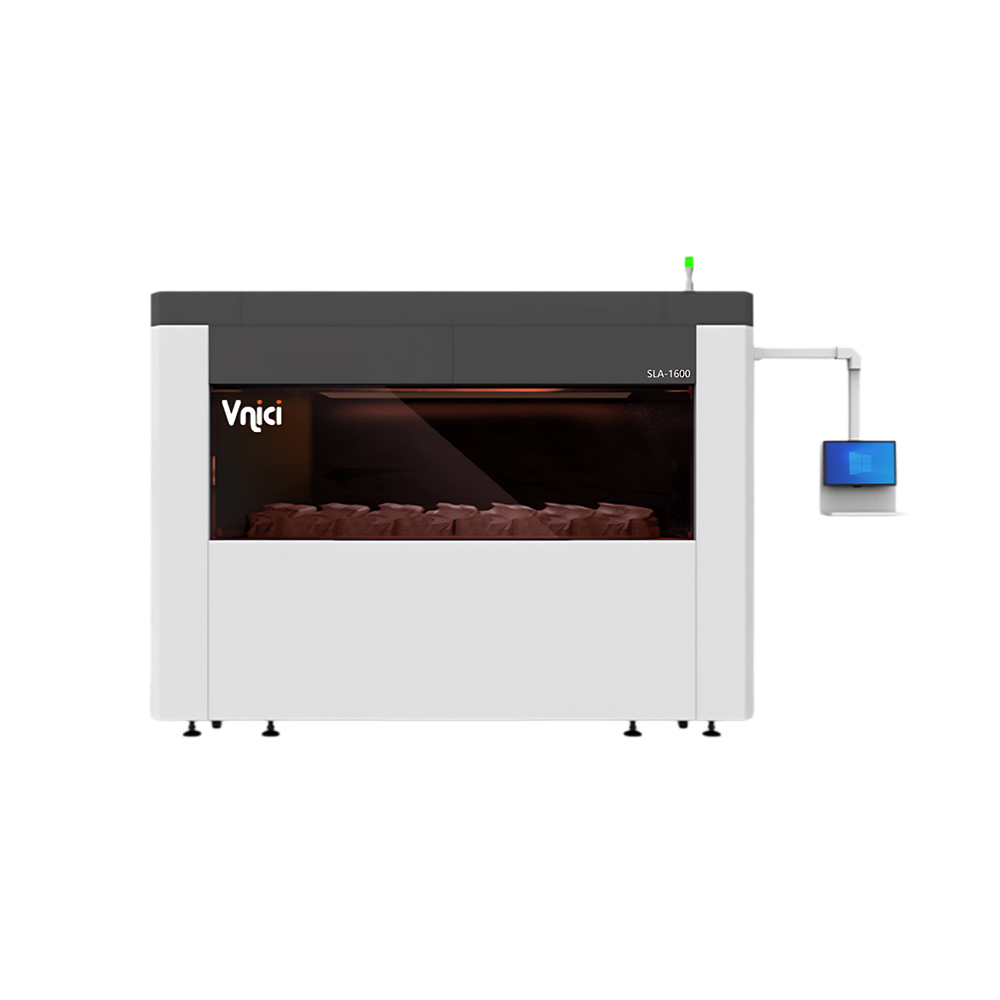

SLA Industrial 3D Printer 1600
Dual Laser & Dual Galvanometer System
VNICI 1600
| Laser Type | Diode-Pumped Solid-state Laser | Forming Material | Photosensitive Resin |
| Wavelength | 355nm | Build Dimensions | 1600(X)*800(Y)*600(Z)mm |
| Power | Minimum Power To Liquid Surface ≥300mw | Resin Heating Method | Hot Air Heating (Optional) |
| Coating Method | Intelligent Vacuum Adsorption | Control Software | Vibration Motion Control Software |
| Normal Layer Thickness | 0.1mm | Machine Tool Software Interface | 3D Design Software, STL File Format |
| Rapid Layer Thickness | 0.15mm | Operation System | Win 10 Or Above |
| Precision Layer Thickness | 0.05mm | Network | Ethernet , TCP/IP |
| Characteristic Layer Thickness | 0.05mm-0 .15mm Selectable | Power Supply | 110 - 240VAC 50/60Hz Single Phase, 10A |
| Spot (Diameter@1/e2) | 0.06-0.8mm Variable Spot | Rated Power Consumption | 2.4KVA |
| Scanning System | Dual Lasers&Dual Galvanometers | Ambient Temperature | 20-26℃ |
| Maximum Scanning Speed Of Parts | 15.0m/s | Relative Humidity | Below 40%, No Frost Formation |
| Vertical Resolution | 0.005mm | Equipment Dimensions | 280(W)*180(D)*220(H)cm (Excluding Display Stand) |
| Repeat Positioning Accuracy | ±0.01mm | Net Weight | 3000kg |
| Initial Resin Tank Volume | 1200kg |
|
|
