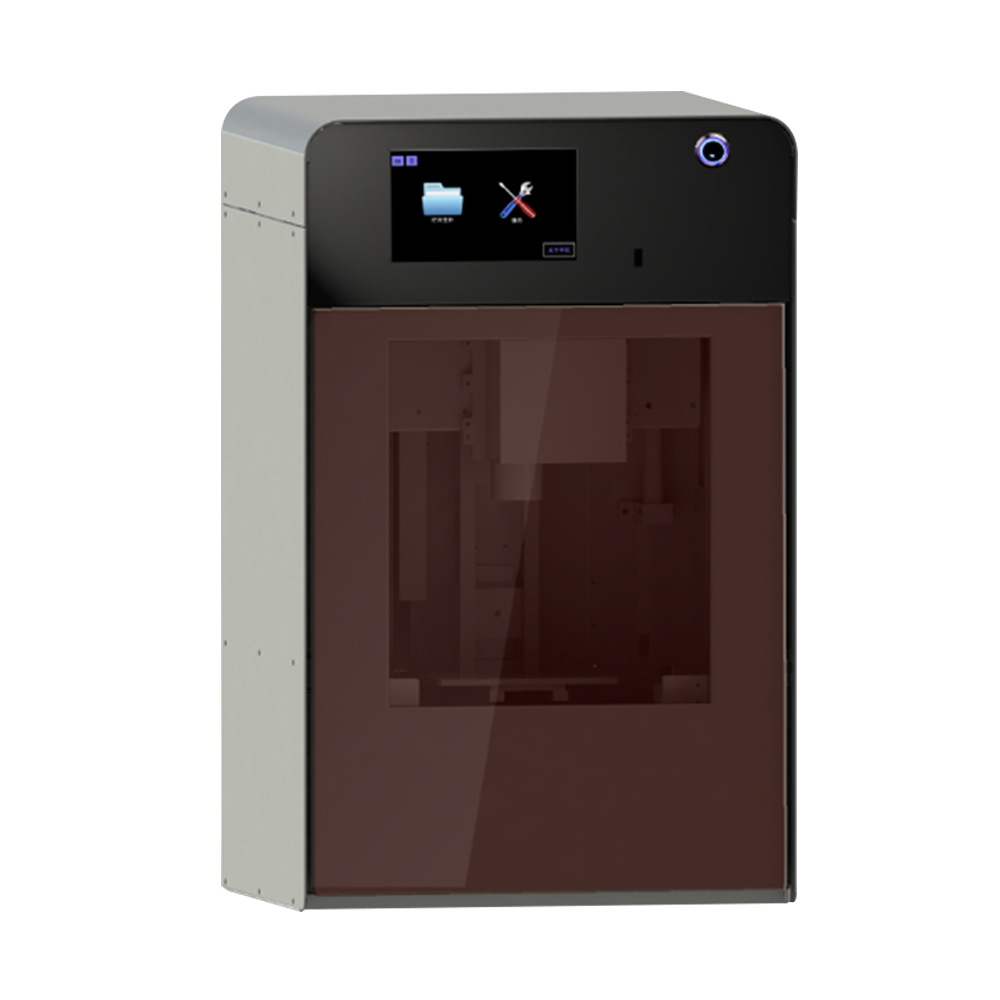

DLP 3D Printer MD

DLP 3D Printer MD is an open-architecture DLP printer specifically engineered for material research and development, offering high flexibility, precision, and ease of use.


DLP 3D Printer MD is an open-architecture DLP printer designed for material research and development, offering high precision, flexibility, and easy operation. It features a high-resolution 405 nm optical engine (385 nm optional) with DLP technology and a resolution of 1920 × 1080.
The printer supports touchscreen control and USB offline printing, eliminating the need for a computer. Powered by self-developed slicing software with an expiration lock function, it operates at only 50 W, enabling long-term continuous use without cooling downtime. All printing parameters are open and adjustable, and the system comes with a 1-year warranty.

Advantages of DLP 3D Printer MD

1
Software-Based Resin Lock
2
Timed Lock & Offline Unlock
3
Direct SLC & Multi-Software Support
4
5-Inch Touchscreen
5
USB Offline & Remote Printing
6
High-Precision Z-Axis
7
Proprietary Slicing Software
8
Smart Auto-Support System

Feature of DLP 3D Printer MD

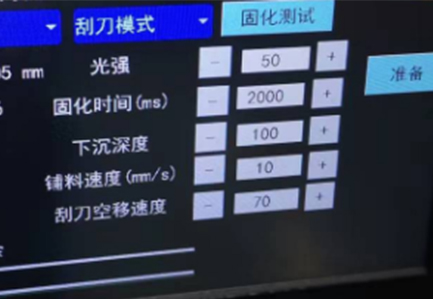

Real-Time Adjustable Print Parameters
Real-Time Adjustable Print Parameters

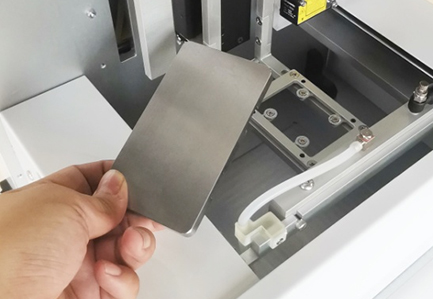

Disassemblable Magnetic Platform

Disassemblable Magnetic Platform

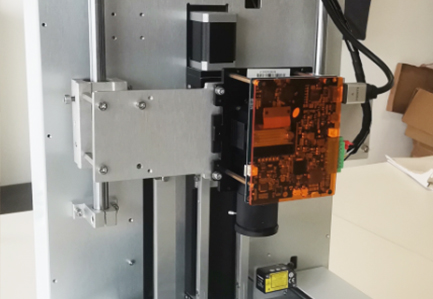

Adjust Print Size And Resolution

Adjust Print Size And Resolution

Technical Specifications of DLP 3D Printer MD

Item

Specification

Model

Prism MD

Technology

Texas Instruments DLP Technology

Resolution

1920 × 1080

Supported Formats

Pr3 / SLC

Light Source Wavelength

405 nm / 385 nm (Optional)

Build Size

96 × 54 × 100 mm / 144 × 81 × 100 mm / 65 × 35 × 80 mm (Customizable)

Pixel Size

50 μm / 75 μm / 35 μm (Customizable)

Layer Thickness

0.01 – 0.2 mm (Z-axis repeat positioning accuracy: 0.01 mm)

Build Platform

Magnetic, detachable build platform

Recoating System

Blade recoating (vacuum adsorption / vertically movable, optional)

Resin Vat Capacity

1 L (printing height 10 mm) / 5 L (printing height 100 mm)

Light Source Type

Imported light source

Power Supply

DC 12V / 6A

Machine Dimensions

350 × 300 × 750 mm

Weight

Net weight: 10 kg; Gross weight: 33 kg (including packaging)

Printing Mode

Supports offline printing via USB

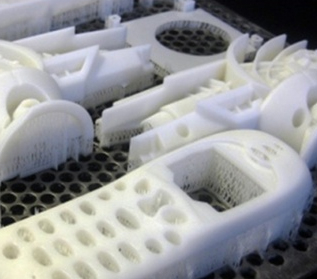

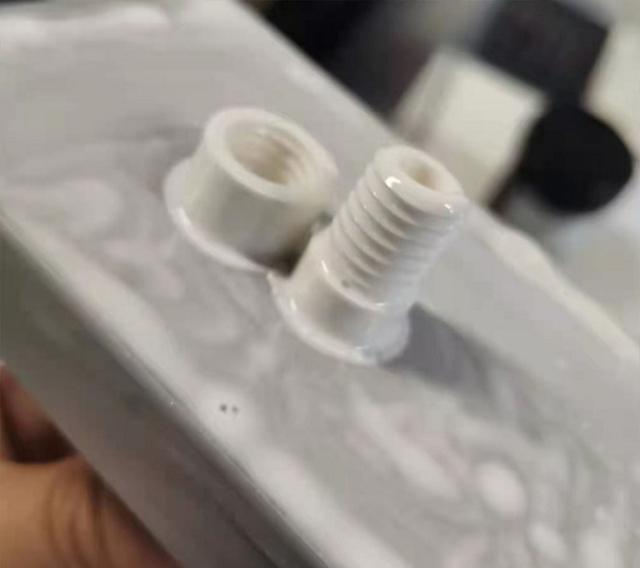

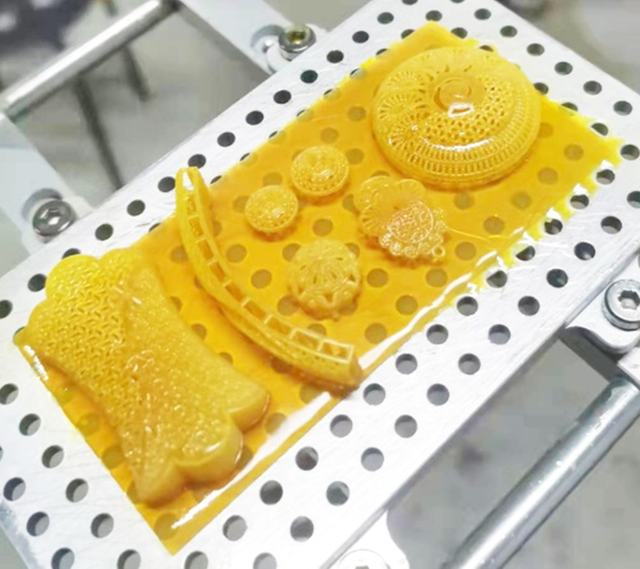

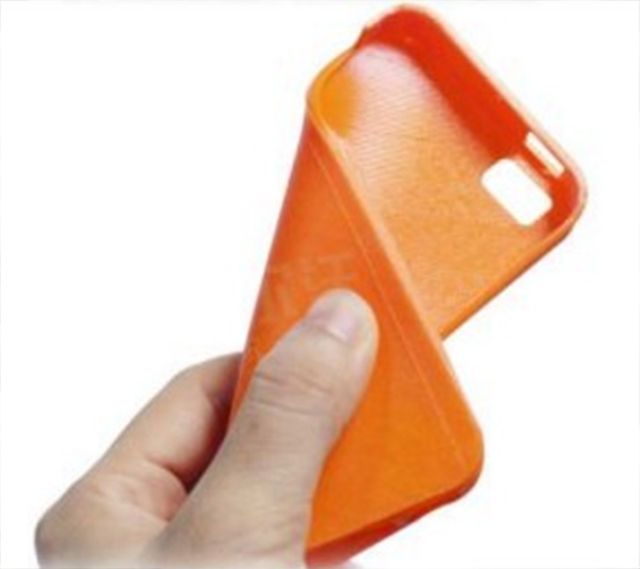

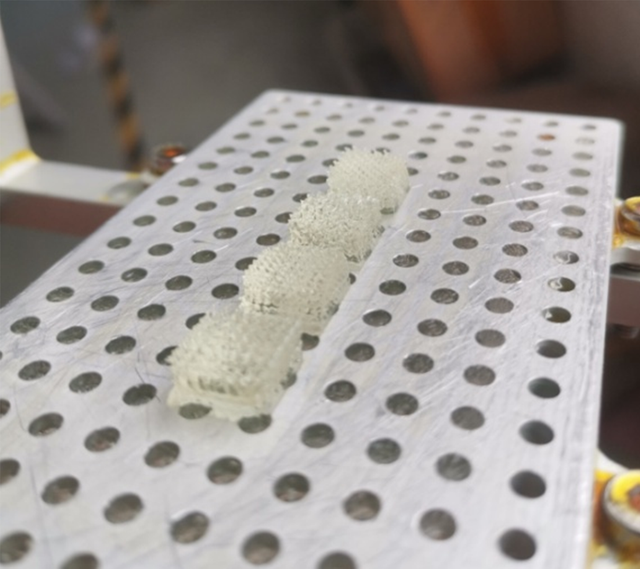

Applications of DLP 3D Printer MD

Why Choose VNICI As Your Ultrahigh Speed 3D Printer Supplier?

Core-Technology


Core Technology


Our Strong R&D team cooperates with one of China Top University which is Shanghai Jiao Tong University. Our Technical adviser Mr. Wuyi is the leader of Institute of Special Materials, Shanghai Jiao Tong University. Our technical director Mr. Li Junchao is a doctoral supervisor at Chongqing University. They have a great achievement in the additive industry, both materials and machine. Rely on such a powerful R&D team, our resin polymers are up-to-date and our machine are state-of-art.
Industrial-Solutions


Industrial Solutions


We are focus on industrial application and provide complete solutions to customers. Our SLA 3d printers are for rapid prototyping, shoe industry, automotive industry, statue industry and so on. Our LCD and DLP 3d printers are for dental industry, jewelry industry, shoe industry and so on. On the other hand, we develop these advanced industrial resin polymers.


Good-after-sales-service


Good after-sales service


Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our aftersales engineers are experienced and good at installation of machine, printing and testing. They can easily help our customers to find the issue and solve it. They work with production department closely to enhance our products quality.
Fast-Delivery


Fast Delivery


We have almost all resin in stock and deliver within a week. We also often have some small 3d printers and machine in processing which can be delivered in two weeks. If you need something urgent, please don’t hesitate to tell us, we will meet your requirements.
