3D Printing Temporary Crown Resin (405nm UV) | WR-TC

Beautifully Formed | Fine Texture | Wide Compatibility

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Photopolymer Resin for 3D Printing

VNICI MATERIALS

Temporary Crown Resin (405nm UV) | WR-TC for 3D Printers

Beautifully Formed | Fine Texture | Wide Compatibility

It is a low skin irritation and hypoallergenic UV curable 3D printing resin.This resin is used for 3D printing and compatible LCD/DLP 3D printers.

Suitable for mass-produced products such as temporary crowns, invisible models, trial models for various dental and medical applications.

Request A Quick Quote

Biocompatibility
Good liquidity
Low shrinkage
High hardness
High adaptability
Cost-effective
High flexibility
Finished surface is smooth
High precision
Short curing time

Key Features of3D Printing Temporary Crown Resin (405nm UV) | WR-TC

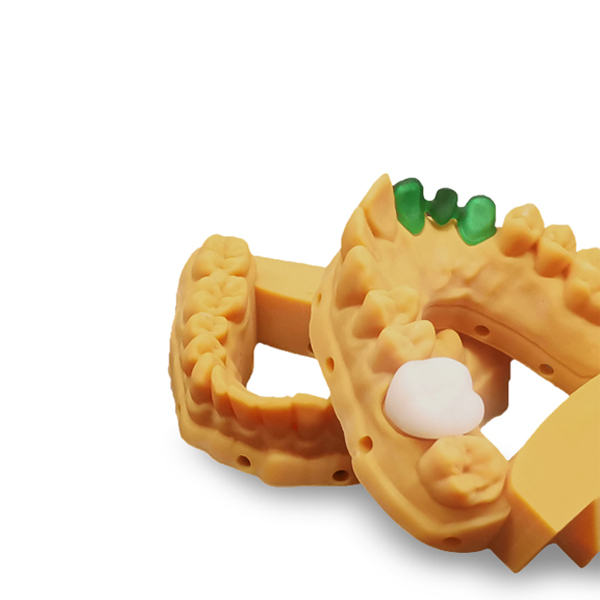

Low shrinkage rate

Can accurately print out the required size of the crown

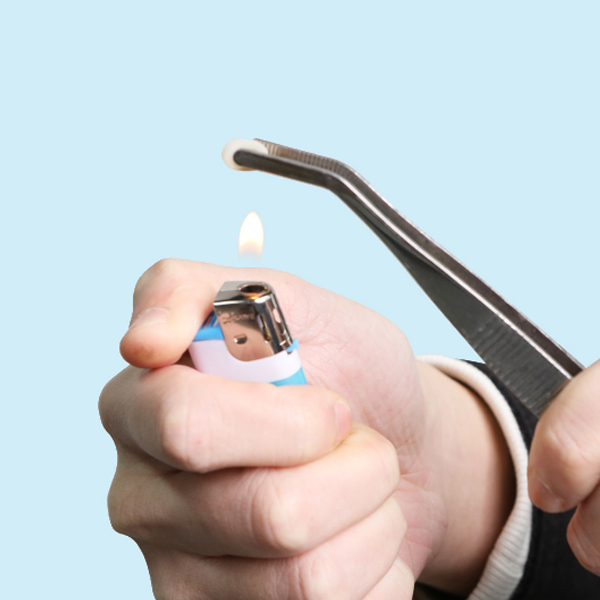

Temperature resistance

Can withstand high temperature of 100 °C

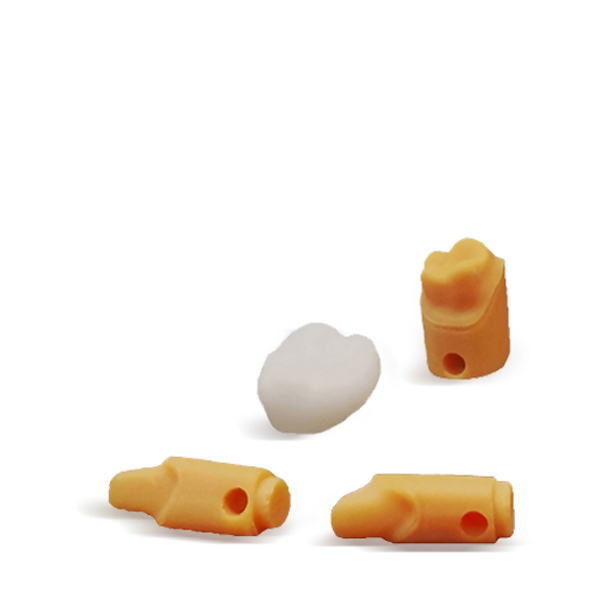

Corrosion resistance

The pH value of the oral cavity is between 6.6≈7.1.The temporary crown should adapt to this acidic environment and cannot be decomposed when used for a short time.

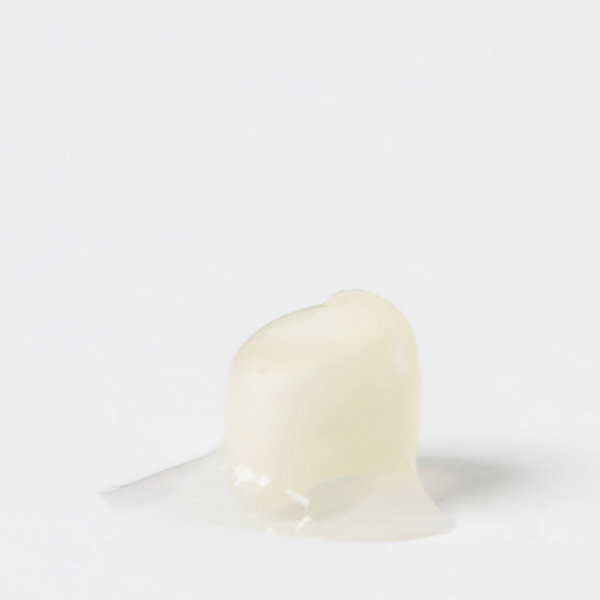

Low water absorption

Optimized formula, tested many times, and soaked the finished product in clean water for 7 days, the physical properties and surface smoothness are still intact.

Contact Our Support Team

Applicable to CLD/DLP 3D Printers with Temporary Crown Resin (405nm UV) | WR-TC

Material Parameters of 3D Printing Temporary Crown Resin (405nm UV) | WR-TC

1. Maximum force (KGF)	127.30±10%
2. Tensile strength (MPa)	30.00±10%
3. Deformation at the maximum force point (mm)	3.65±10%
4. Yield point elongation (%)	6.36±10%
5. Elongation at break (%)	6.45±10%
6. Maximum Flexural strength (MPa)	30.98±10%
7. Flexural modulus (MPa)	927.13±10%
8. Shore hardness (D)	80~90
9. Impact strength, notched Izod, (j/m)	32±10%
10. Tensile modulus (MPa)	490.91±10%

Get The Latest Price Today

405nm Temporary Dental Model Resin

Series	Temporary Dental Model Resin
Model	WR-TC
Color	A1/A2/A3/B1/BLEACH
Recommended Bottom Expose Time (Light Intensity 3500~4500μw/cm²)	20~30s
Recommended Expose time (Light Intensity 3500~4500μw/cm²)	3~6s
Bottom Lift Distance	6mm
Lifting Distance	6mm
Bottom Lift Speed	60mm/min
Lift Speed	80mm/min
Retract Speed	150mm/min
Absorption Band	385~410nm

Start A Project With Us

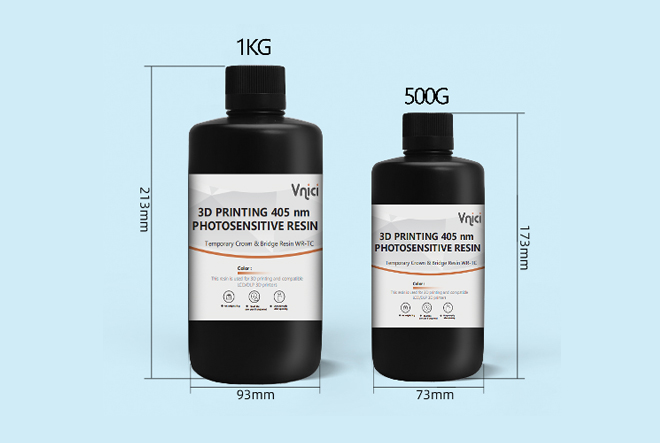

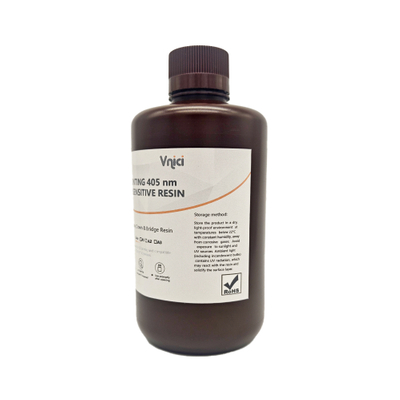

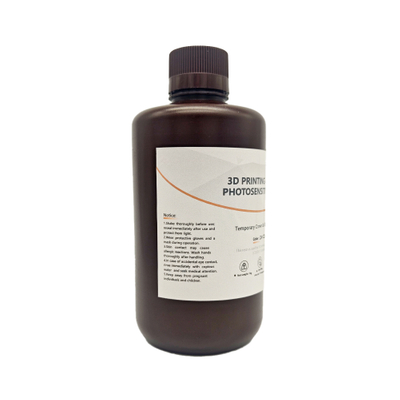

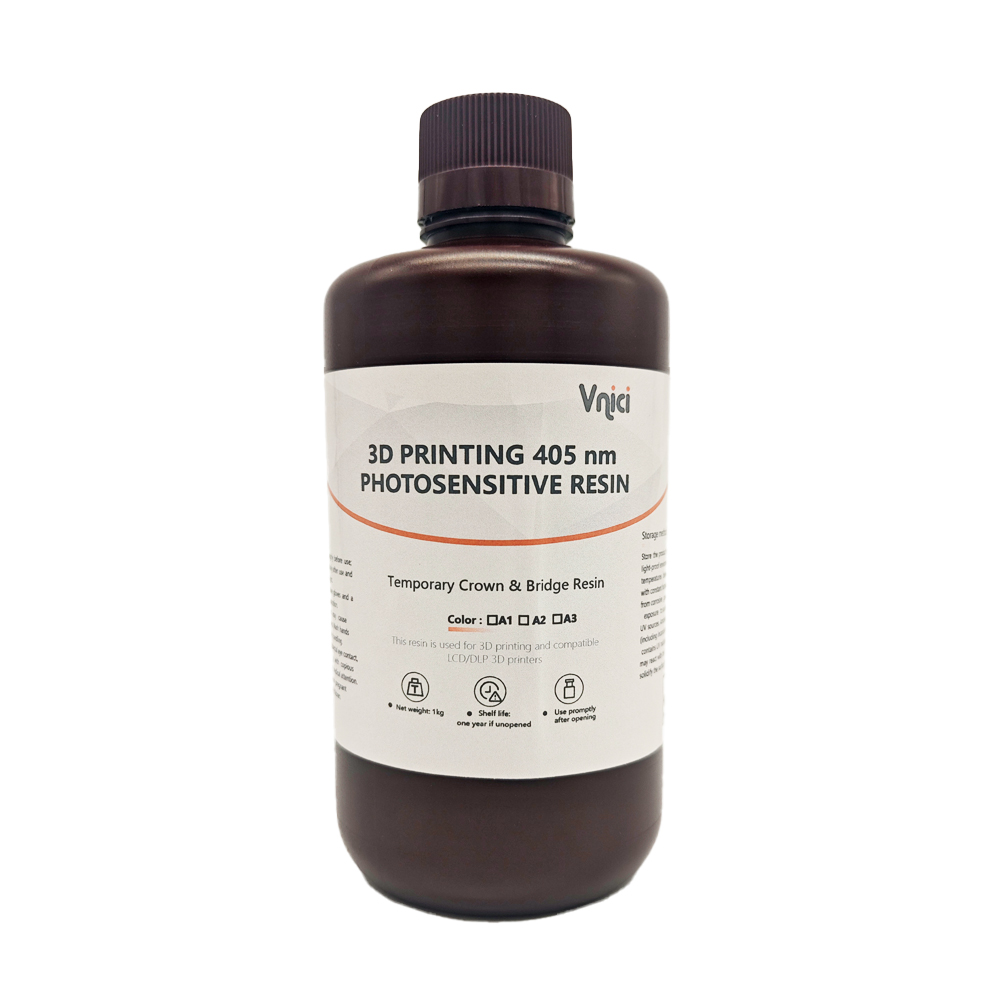

Wrap of 3D Printing Temporary Crown Resin (405nm UV) | WR-TC

No inner plug, easy to open and close
Thickened bottle should not be sunken
Opaque Black Complete Blackout

Note: The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.

Get Technical Support

Advantages of Digital Dentistry Applications

High precision, high production efficiency and low cost

Traditional Production Process Removal Processing Technology

1.Dust waste and noise pollution
2.There are many processes and the cost is high
3.Long time period and low production efficiency
4.Rely on technicians to operate
5.Personalization is difficult
6.The accuracy is not high, affected by complex shapes

3D Printing Process Additive Manufacturing Technology

1.Safe and environmentally friendly, easy to operate
2.Simple process and low cost
3.Short time period and high production efficiency
4.Digital manufacturing shortens the growth cycle of technicians
5.Can realize fast and small batch customization
6.High precision, not affected by complex shapes

Start an Order With Us

Model Display of 3D Printing Temporary Crown Resin (405nm UV) | WR-TC

Instructions for Use of Materials

Aftertreatment and Cleaning | Safety Precautions | Correct Storage Method

Post-processing And Cleaning

Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
Use an air gun or hair dryer to remove the face-free cleaning solution;
Before post-curing, remove most of the support material, and after post-curing, remove the details of the support and modify the surface treatment;
Adjust the corresponding post-curing time according to the selected post-curing.

Safety Precautions

This product is for one-time use and cannot be reused;
Use only under good ventilation, please pay attention to air circulation and take protective measures when using;
If you accidentally touch your eyes, please wash them with water immediately. If you still feel unwell after washing, please seek medical attention immediately;
If you accidentally touch the clothes, please change them immediately, and wash the skin and clothes with soap and water immediately;
Do not put the resin in contact with food, if swallowed accidentally, do not induce vomiting, keep resting, seek medical advice in time;
Disposal of wastes shall be disposed of in accordance with the requirements of local environmental regulations.

Correct Storage Method

Please store the product in a cool place below 25 degrees and avoid exposure to sunlight. Generally, visible light may cause resin polymerization and gelation. Can not be placed in the sun, humidity, corrosive gas place.

Contact Us Now

Temporary Crown Resin (405nm UV) | WR-TC for 3D Printers

Key Features of3D Printing Temporary Crown Resin (405nm UV) | WR-TC

Low shrinkage rate

Temperature resistance

Corrosion resistance

Low water absorption

Applicable to CLD/DLP 3D Printers with Temporary Crown Resin (405nm UV) | WR-TC

02-LCD-A

AI-01

D1

D300

MD

RayForm-400D

RayForm-400

PM

L5

L16
