3D Printing Flexible Photosensitive Resin (405nm UV) | WE-FL

Special for LCD/CLP 3D printing

Home » Materials » 405nm Resin for DLP/LCD » 405 nm Flexible Photosensitive Resin for 3D Printing

VNICI MATERIALS

Flexible Photosensitive Resin (405nm UV) WE-FL for 3D Printers

Special for LCD/CLP 3D printing

Flexible Photosensitive Resin delivers 100-150% elongation at break, excellent tear resistance, rubber-like softness and high elasticity. Ideal for printing soft, bendable parts like phone cases, medical models, toys and more.

Request A Quick Quote

Softness
Tear resistance
Rubber-like
High toughness
High elasticity and high softness
High elasticity

Key Features of 3D Printing with Flexible Photosensitive Resin WE-FL

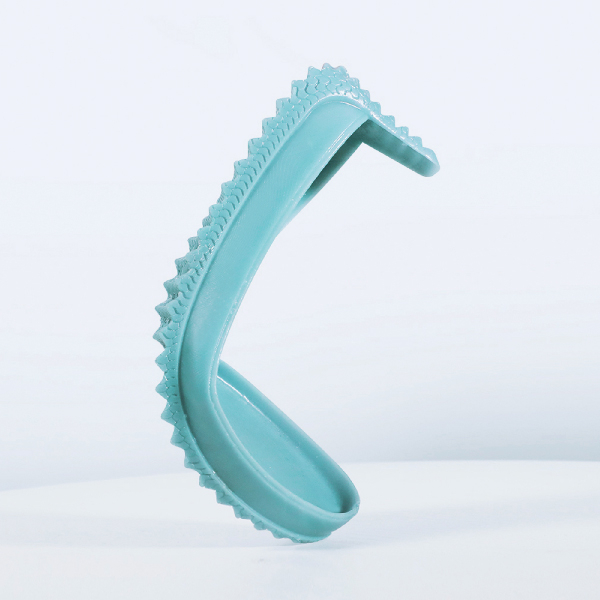

Application Industry/Field

Make soft objects, such as animation models, watch straps, mobile phone cases, medical models, medical equipment, toys, shoe models, and aerospace teaching models, etc.

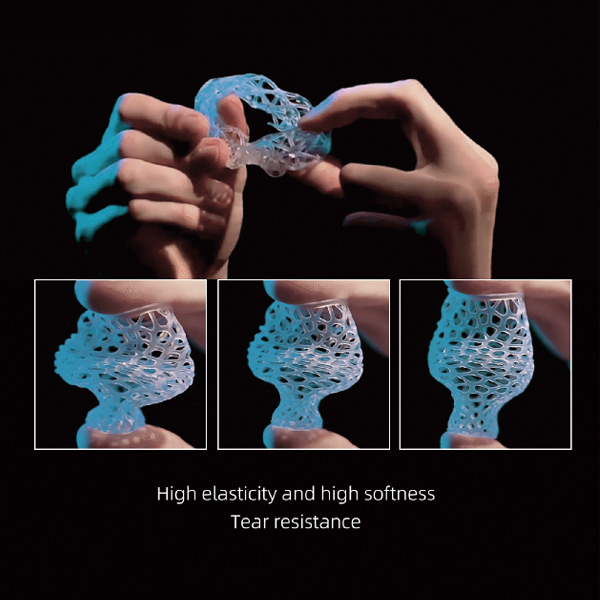

High elasticity and good flexibility

Good resilience, used to print parts that can be bent, stretched, compressed, and can be recycled without tearing. It can be used for printing parts that require elasticity, such as mobile phone cases, medical models, medical devices, toys, shoe molds, and aerospace.

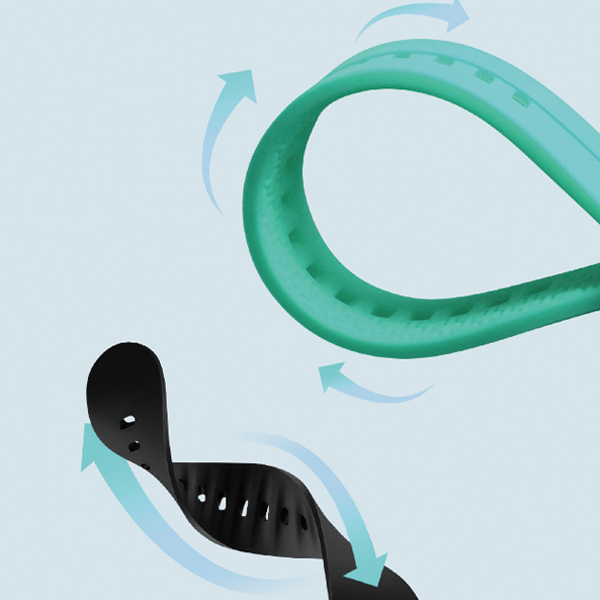

Softness

The physical properties are similar to rubber, and the printed parts can be folded in half many times without breaking.For printing things that need to be soft.

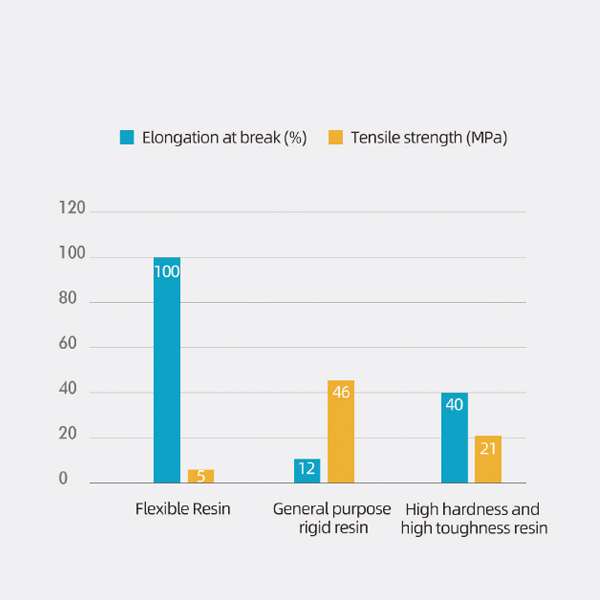

Elongation at break 100-150%Good tear resistance

The printed parts can be folded in half many times without breaking. They have good tear resistance, are not easy to crack, can be bent, have excellent bending resistance, and are stable and easy to stretch.

Contact Our Support Team

Applicable to CLD/DLP 3D Printers with Flexible Photosensitive Resin WE-FL

Mechanical Properties of Flexible Photosensitive Resin

Maximum force (KGF)	6.72±10%
Tensile strength (MPa)	1.58±10%
Deformation at the point of maximum force (mm)	41.70±10%
Elongation at yield point (%)	31.85±10%
Elongation at break (%)	75.27±10%
Hardness (Shore A)	76~82
Tensile modulus (MPa)	2.28±10%

Get The Latest Price Today

Recommended Printing Parameters of 405nm Flexible Photosensitive Resin WE-FL

Series	Flexible Resin
Model	WE-FL
Color	Black / White / Grey / Transparent / Aqua Blue / Flesh
Recommended Bottom Expose Time (Light Intensity 3500~4500μw/cm²)	20~30S
Recommended Expose Time (Light Intensity 3500~4500 μw/cm²)	2.5~4.5S
Bottom Lift Distance	6mm
Lifting Distance	6mm
Bottom Lift Speed	60 mm/min
Lift Speed	80 mm/min
Retract Speed	150 mm/min
Absorption Band	385~410 nm

Start an Order With Us

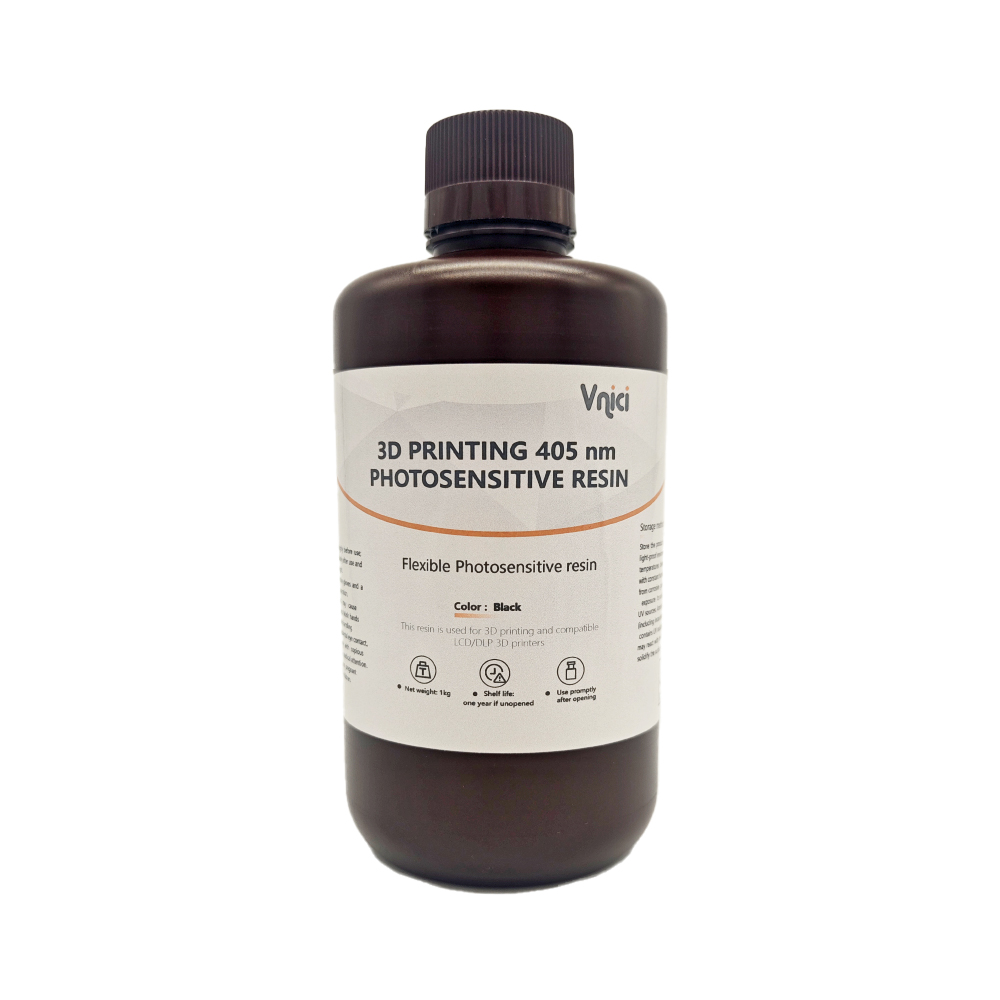

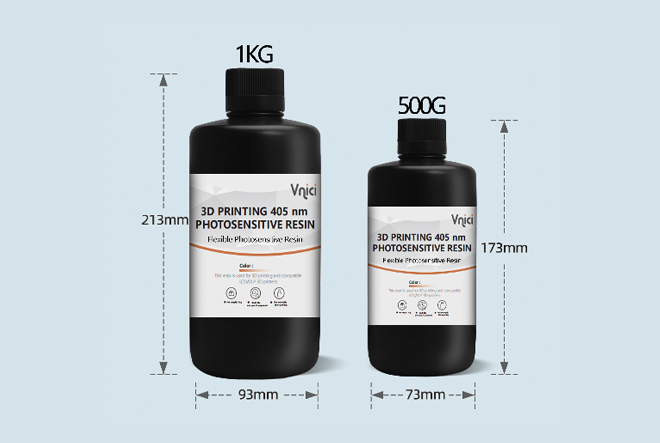

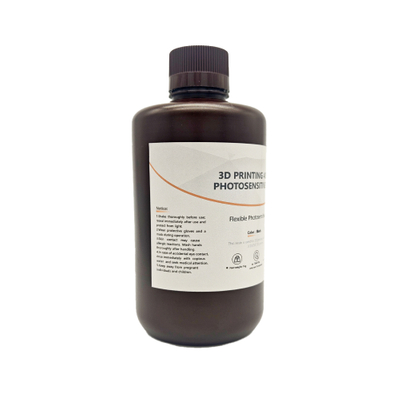

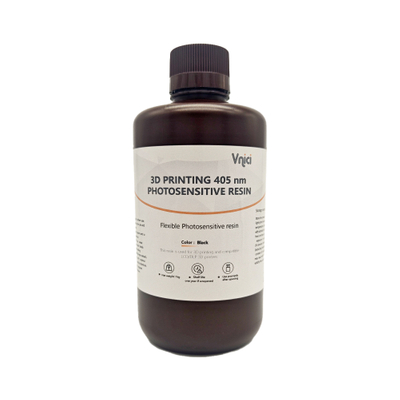

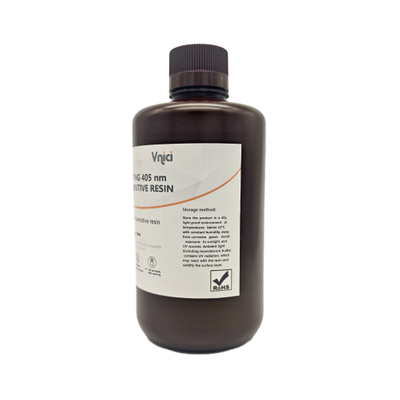

Wrap of 3D Printing Flexible Photosensitive Resin (405 nm UV) WE-FL

Note:The packaging is for reference only, there may be differences in different batches, the actual product shall prevail.

Get Technical Support

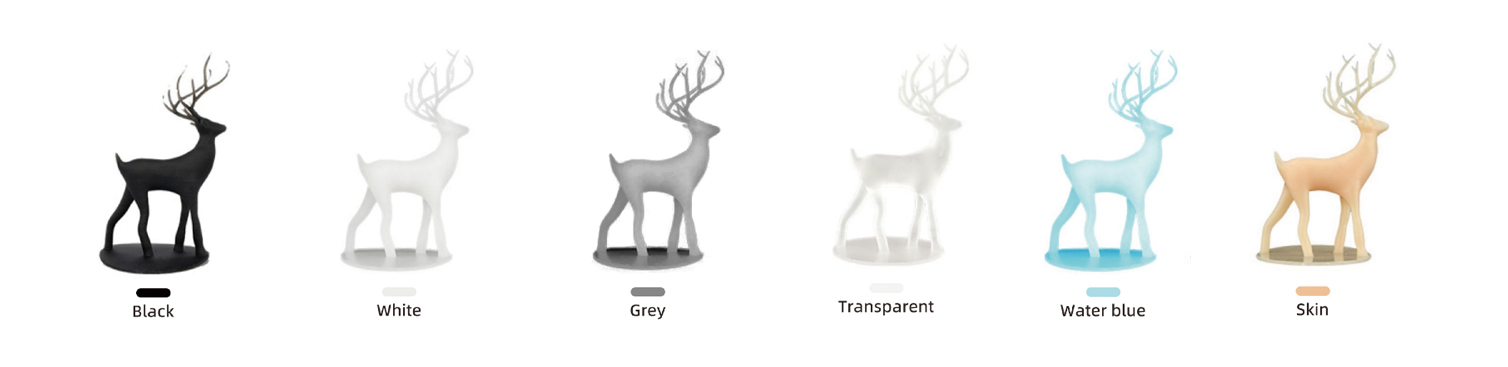

Color of 405 nm Flexible Photosensitive Resin

Including mainstream colors in the market, the molding color is pure, and the coloring effect in the later stage is good.
6 colors are available: black/white/grey/transparent/water blue/skin

Tips: Due to different lighting or display settings, the product has different degrees of color difference, the final color please refer to the actual product.

Start A Project With Us

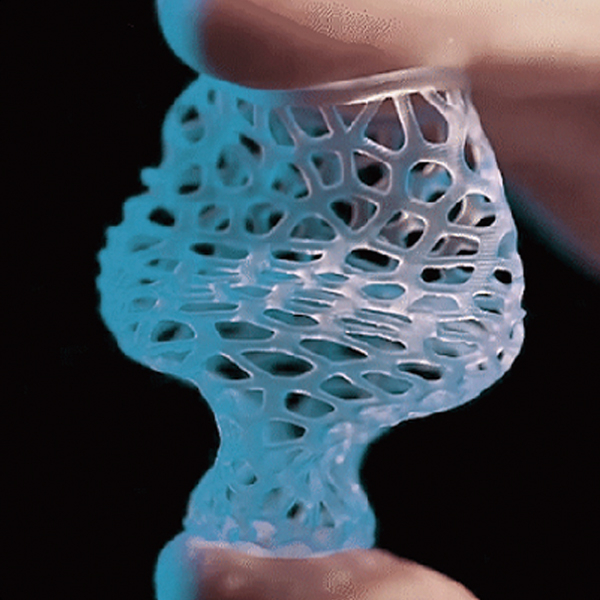

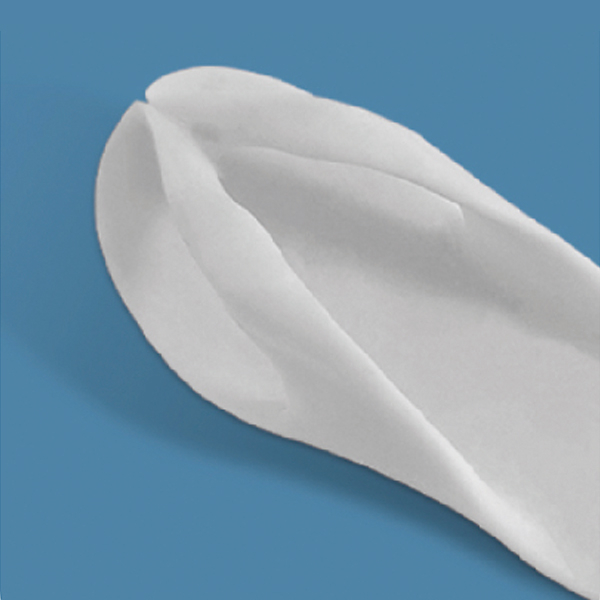

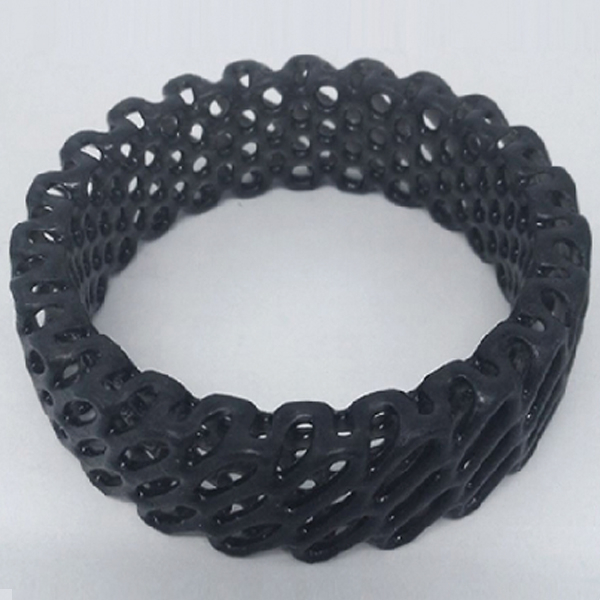

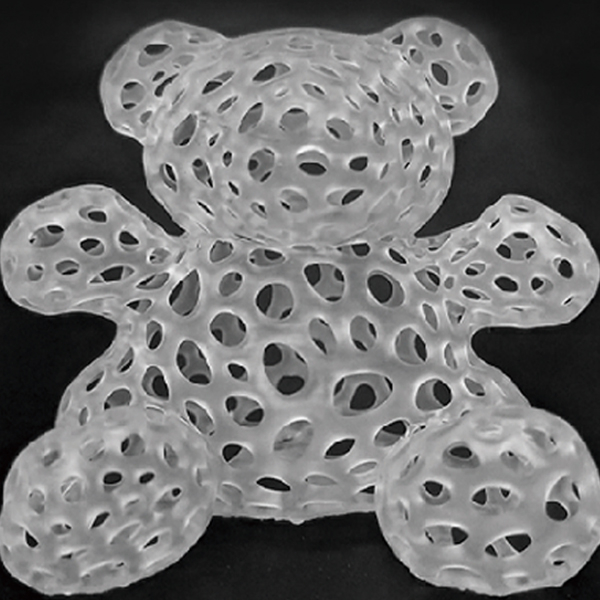

Model Display of 3D Printing Flexible Photosensitive Resin WE-FL

For example, making soft objects, such as animation models, watch straps, mobile phone cases, medical models, medical equipment, toys, shoe models, and aerospace teaching models.

Send Us Your Inquiry Today

Precautions

Precautions for use and storage.

Safety Precautions

Please shake it evenly before using it, seal it in time after use, and keep it away from light
Please wear protective equipment such as gloves and masks when using
Wash hands thoroughly after operation
Skin contact may cause allergies, if irritation or rash occurs, please seek medical attention in time
If it gets into the eyes accidentally, please wash it off with plenty of water immediately and go to the doctor
Do not let pregnant women and children touch this product
Please dispose of this product container at an approved waste treatment plant

Post-Processing And Cleaning

Use absolute ethanol or isopropanol to clean the model with an ultrasonic oscillator. Do not use high-frequency vibration or brush the model vigorously to avoid damage to the surface details of the model;
Use an air gun or hair dryer to remove the surface cleaning fluid;
Remove most of the supports before post-curing, and remove the details of supports and modify the surface after post-curing;
Adjust the corresponding post-curing time according to the selected post-curing.

Storage Method

Please store the product in a dry and ventilated place without corrosive gas.Can not be placed in the sun, damp places.
