High-Precision Jewelry Casting Starts Here

VNICI 02-LCD-A Desktop LCD 3D Printer

Struggling with inconsistent wax patterns, lost details, or outsourcing delays?
The VNICI 02-LCD-A is engineered to deliver ultra-fine, casting-ready jewelry models—right from your desktop.

Designed for professional jewelers and jewelry workshops, it combines 16K ultra-high resolution, stable light output, and jewelry-grade casting resin compatibility to ensure every detail survives the casting process.

Why Jewelers Choose the VNICI 02-LCD-A

16K Ultra-High Resolution for Micro Jewelry Details

The 02-LCD-A features a 15120 × 6230 (16K) LCD screen with a pixel size as small as 14 × 19 μm, enabling exceptional XY accuracy.

What this means for jewelry casting:

• Crisp prongs and stone seats

• Clear engraving and sharp edges

• Minimal polishing before burnout

More detail in resin = better results in metal.

92%+ Light Uniformity for Consistent Prints

Uneven exposure leads to warped or failed jewelry patterns.
The 02-LCD-A uses a 405 nm matrix light source with over 92% uniformity, ensuring consistent curing across the entire build platform.

Benefits for your workshop:

• Fewer print failures

• Reliable batch consistency

• Higher casting success rate

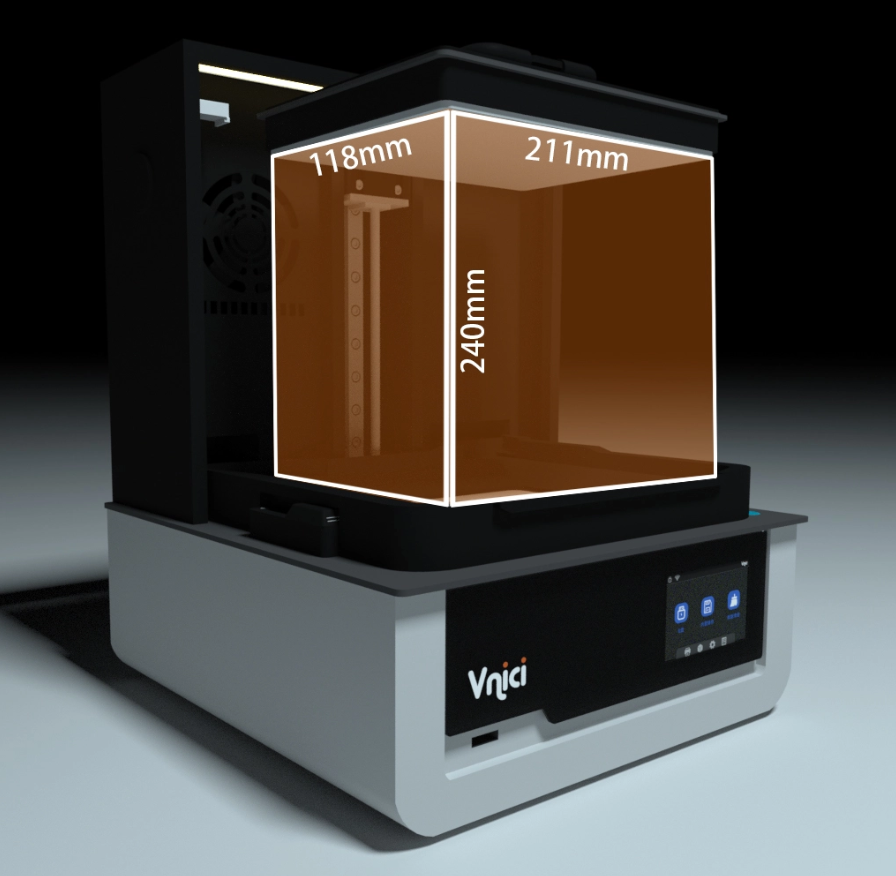

Optimized Build Volume for Jewelry Production

With a build size of 211 × 118 × 240 mm, the 02-LCD-A supports:

• Multiple rings or pendants per print

• Efficient small-batch production

• Daily studio-level output without outsourcing

Perfect for custom jewelry studios and small manufacturers.

️ Automatic Temperature Control (25–30°C)

Resin performance depends heavily on temperature.
The built-in automatic heating system keeps the resin environment stable between 25–30°C, improving print reliability—especially in colder conditions.

Result:

• Stable layer bonding

• Reduced deformation

• Consistent casting patterns

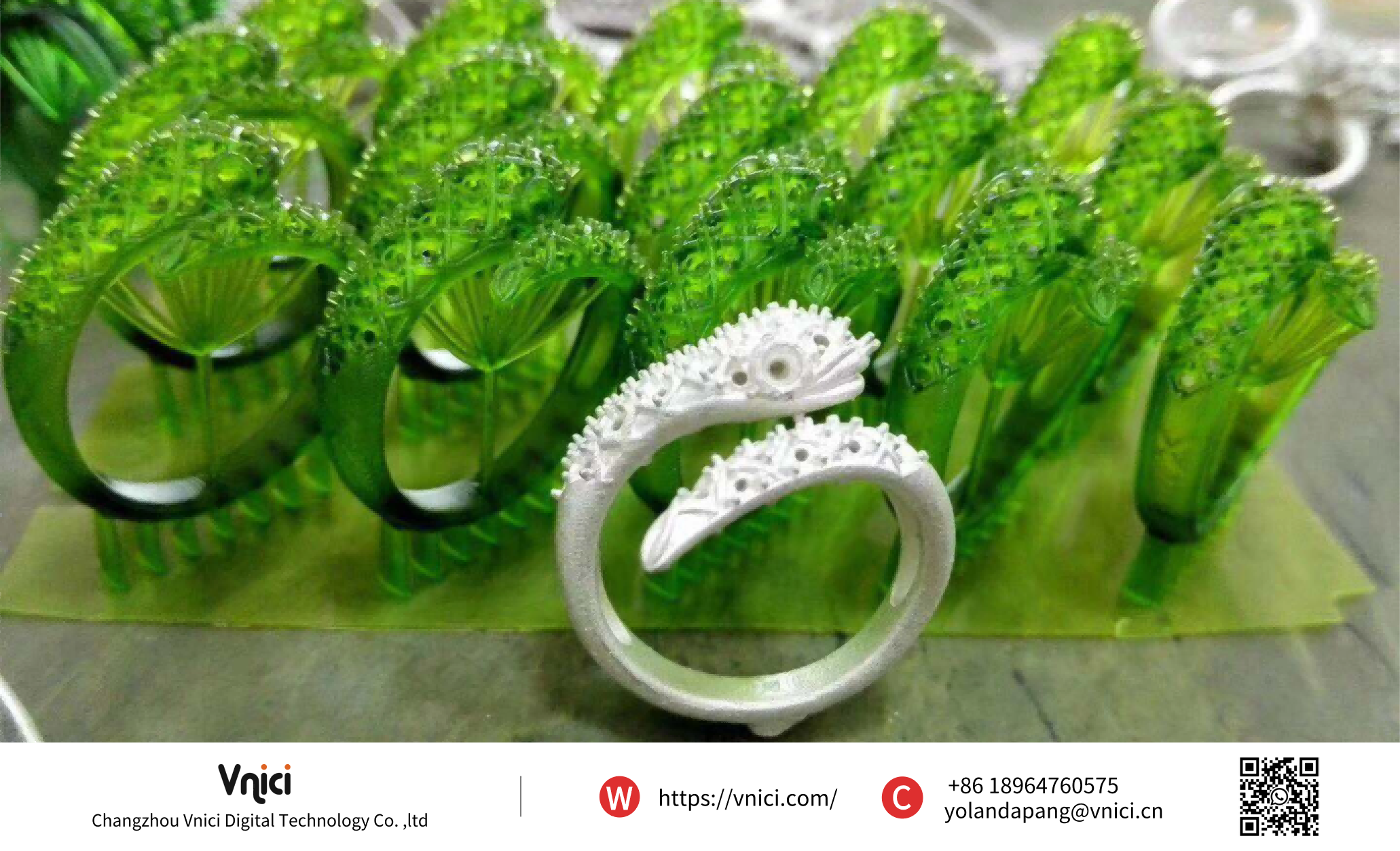

Jewelry Casting Resin — Fully Compatible

The VNICI 02-LCD-A is optimized for VNICI jewelry casting resin, designed for lost-wax (lost-resin) workflows.

Why Jewelers Trust This Resin

• Clean burnout with low ash residue

• Excellent detail retention

• Reliable printing behavior

The dark green resin color improves visual contrast, making it easier to inspect fine details before casting—helping reduce costly mistakes.

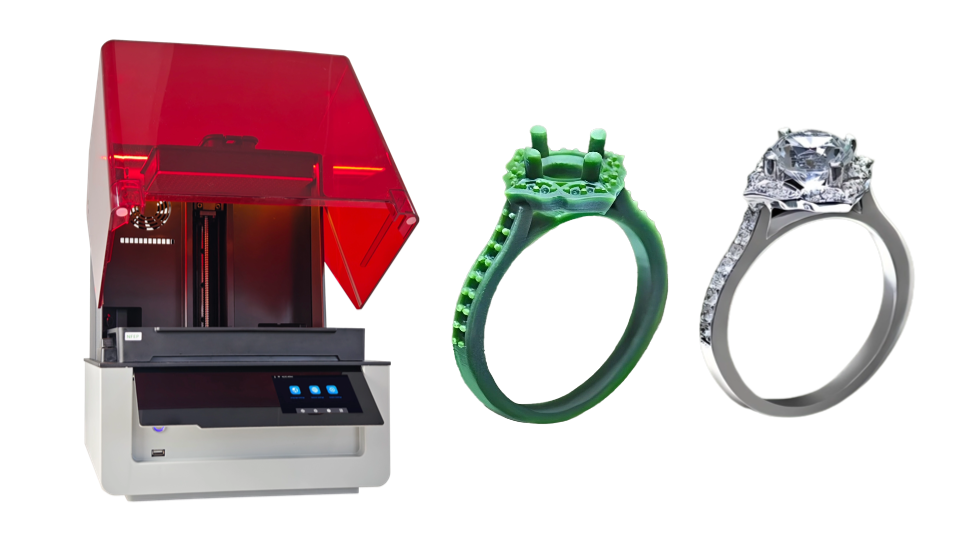

From CAD Design to Metal Jewelry — Faster & In-House

Traditional workflow

• Hand carving or outsourced wax

• Long lead times

• Inconsistent quality

With VNICI 02-LCD-A

1. Design digitally

2. Print casting-ready resin model

3. Clean burnout

4. Cast precious metal

5. Finish & polish

✔ Faster turnaround
✔ Better consistency
✔ Lower long-term cost

Technical Highlights at a Glance

• LCD Resolution: 15120 × 6230 (16K)

• Pixel Size: 14 × 19 μm

• Build Volume: 211 × 118 × 240 mm

• Light Source: 405 nm matrix light engine

• Light Uniformity: ≥92%

• Temperature Control: Automatic, 25–30°C

• Printing Tolerance: ±0.1 mm (≤100 mm length)

Built to meet professional jewelry casting requirements.

Who Is This Printer For?

✔ Jewelry designers
✔ Custom jewelry studios
✔ Small-batch jewelry manufacturers
✔ Jewelry prototyping services
✔ Lost-wax casting workshops

If fine detail and reliable casting matter to your business, the 02-LCD-A is built for you.

Why Buy from VNICI?

• Professional LCD 3D printer manufacturer

• Hardware and resin engineered to work together

• Proven experience in precision resin printing

• Global support for professional users

VNICI focuses on real manufacturing performance, not just specifications.

Ready to Upgrade Your Jewelry Casting Workflow?

Bring precision, speed, and consistency in-house with the VNICI 02-LCD-A.

Request a Quote
