When people think about SLA 3D printing, they often associate it with high precision, smooth surfaces, and detailed prototypes. However, one important question remains:
How strong are SLA 3D printed parts?
Can SLA parts be used only for visual prototypes, or can they also become functional components for real-world applications?
The answer depends on three key factors:
The type of SLA resin used
The printing and post-processing process
The requirements of the final application
With the development of engineering-grade photopolymer materials, modern SLA 3D printed parts are no longer limited to appearance models. They are increasingly used for functional prototypes, low-volume production, medical devices, automotive components, and industrial applications.

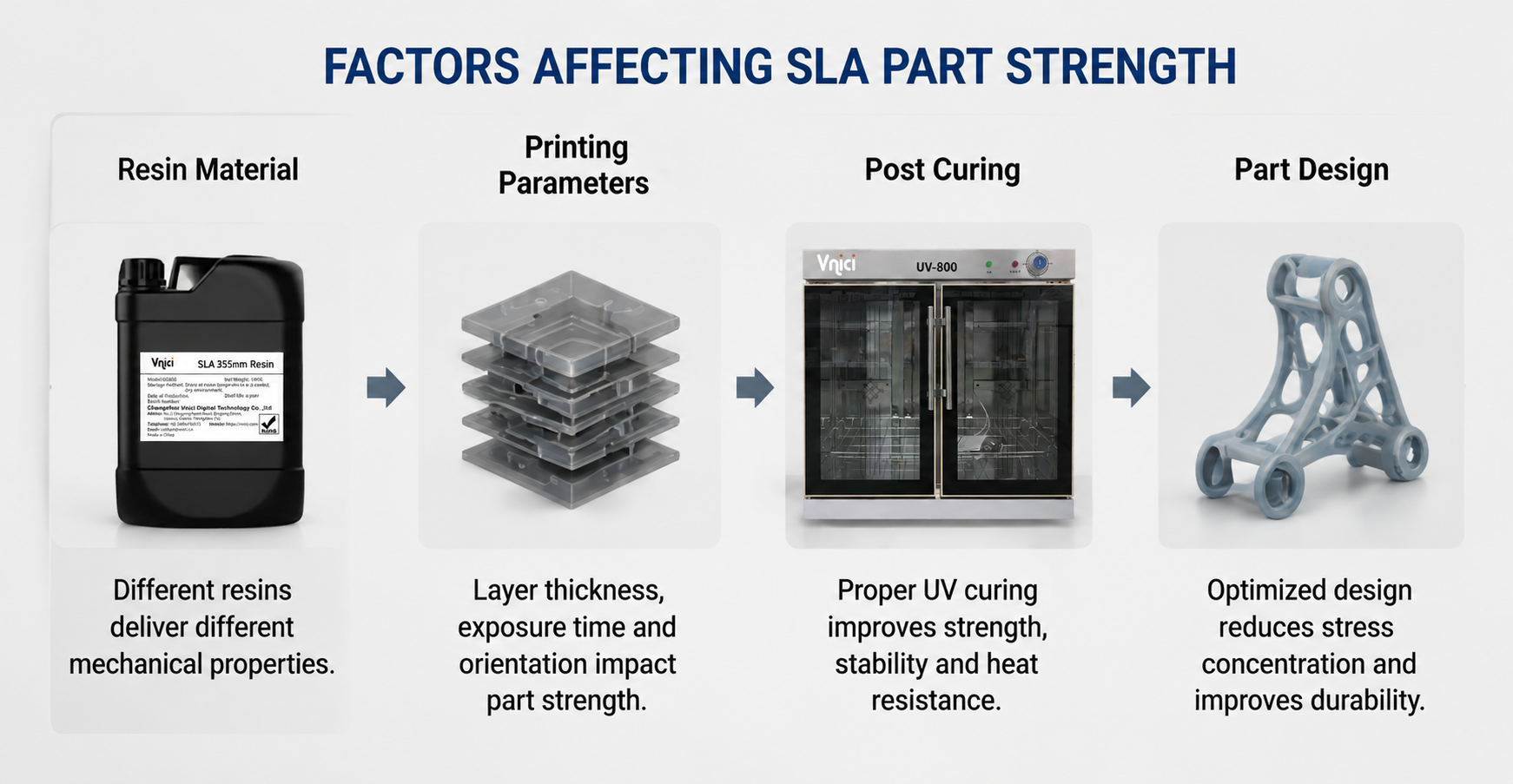

What Determines SLA Part Strength?
The strength of an SLA printed part is not determined by the printer alone. Material selection, curing conditions, and design factors all influence final performance.
1. SLA Resin Material Properties
The resin is the most important factor affecting SLA part strength.
Traditional SLA resins were mainly designed for visual models and could be relatively brittle. Today, advanced engineering resins provide improved:
Tensile strength
Impact resistance
Heat resistance
Chemical resistance
Long-term durability
Different applications require different resin properties.

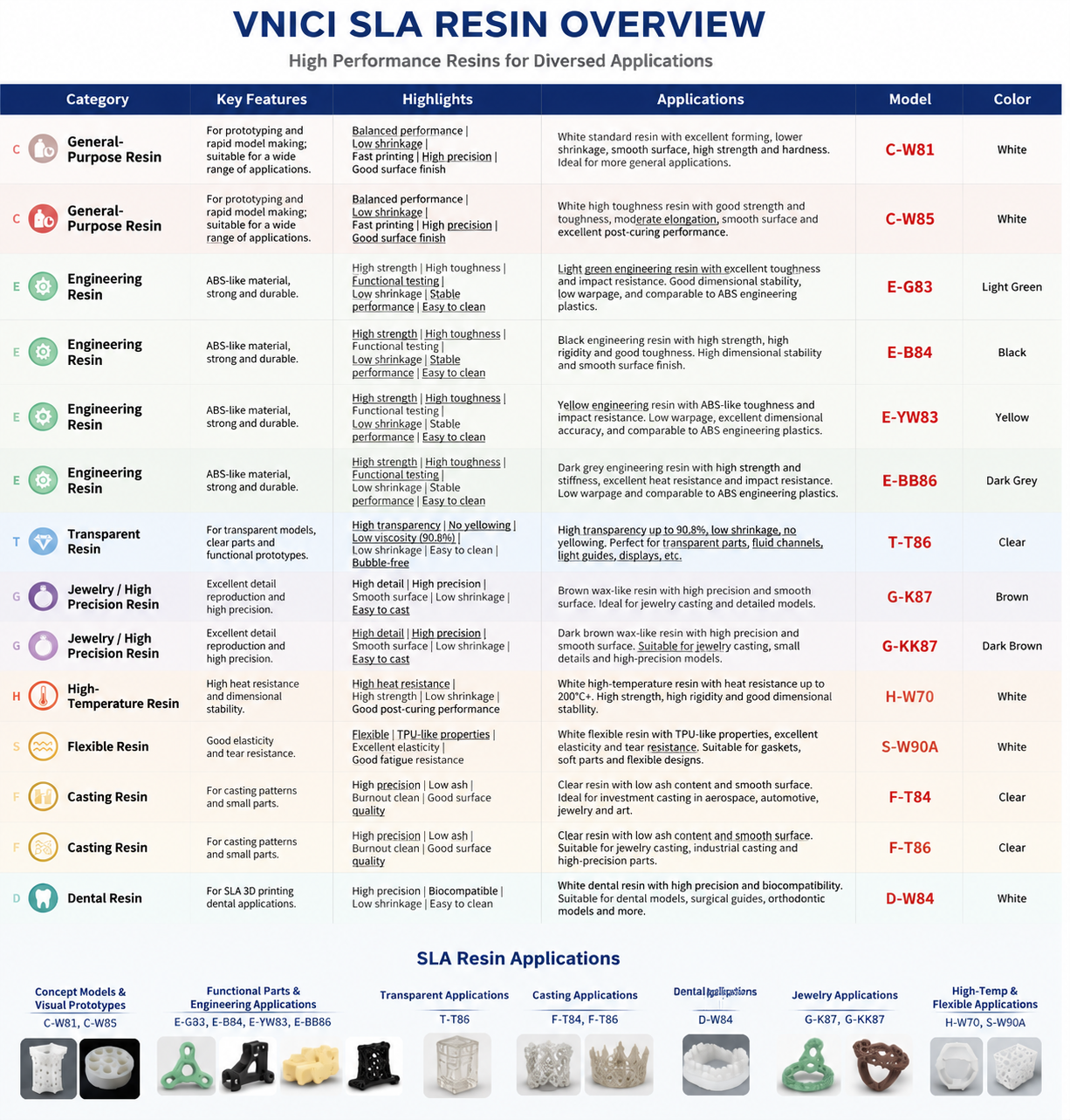

Common SLA Resin Types:
Resin Type
Main Properties
Typical Applications
Standard Resin
High accuracy, smooth finish
Concept models, appearance prototypes
Tough Resin
Higher impact resistance
Functional housings, mechanical testing
Flexible Resin
Elastic performance
Seals, soft components, wearable parts
High Temperature Resin
Heat resistance
Automotive and industrial testing
Castable Resin
Clean burnout performance
Jewelry casting, dental applications
Biocompatible Resin
Medical-grade performance
Surgical guides, dental models
For industrial applications, choosing the correct engineering resin is often more important than simply increasing printer specifications.

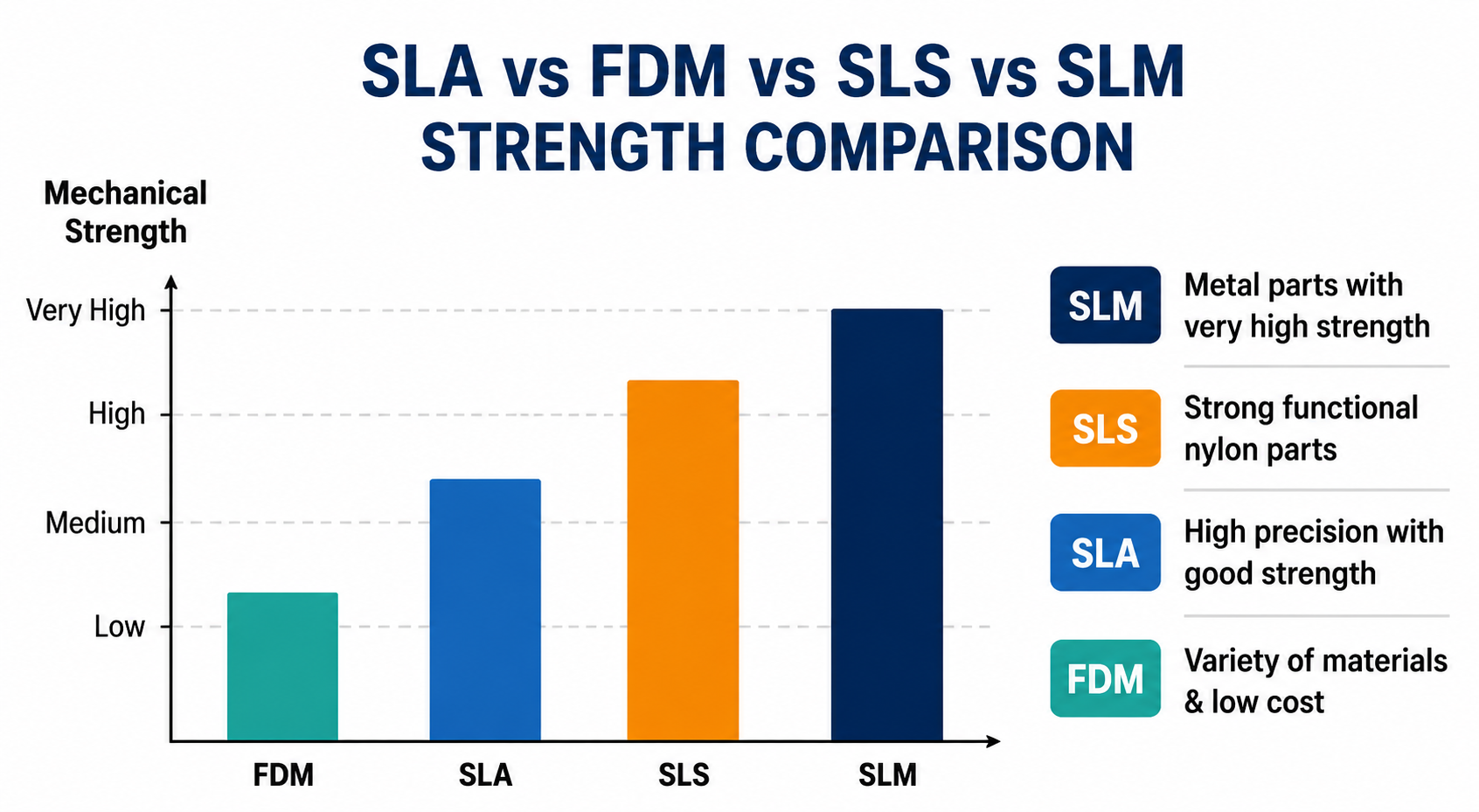

How Strong Are SLA 3D Printed Parts Compared With Other Technologies?
SLA technology is mainly known for accuracy rather than maximum mechanical strength.
A comparison:
Technology
Strength
Main Advantage
SLA
Medium to High (depending on resin)
Best surface quality and accuracy
FDM
Medium
Large material options and affordability
SLS
High
Functional nylon parts without supports
SLM
Very High
Metal production parts
SLA is usually selected when manufacturers need:
High dimensional accuracy
Fine details
Smooth surfaces
Complex geometries
Fast design validation
For applications requiring extreme mechanical loads, metal printing or SLS may be more suitable.
However, for many engineering applications, modern SLA 3D printed parts provide enough strength while offering better accuracy and surface quality.

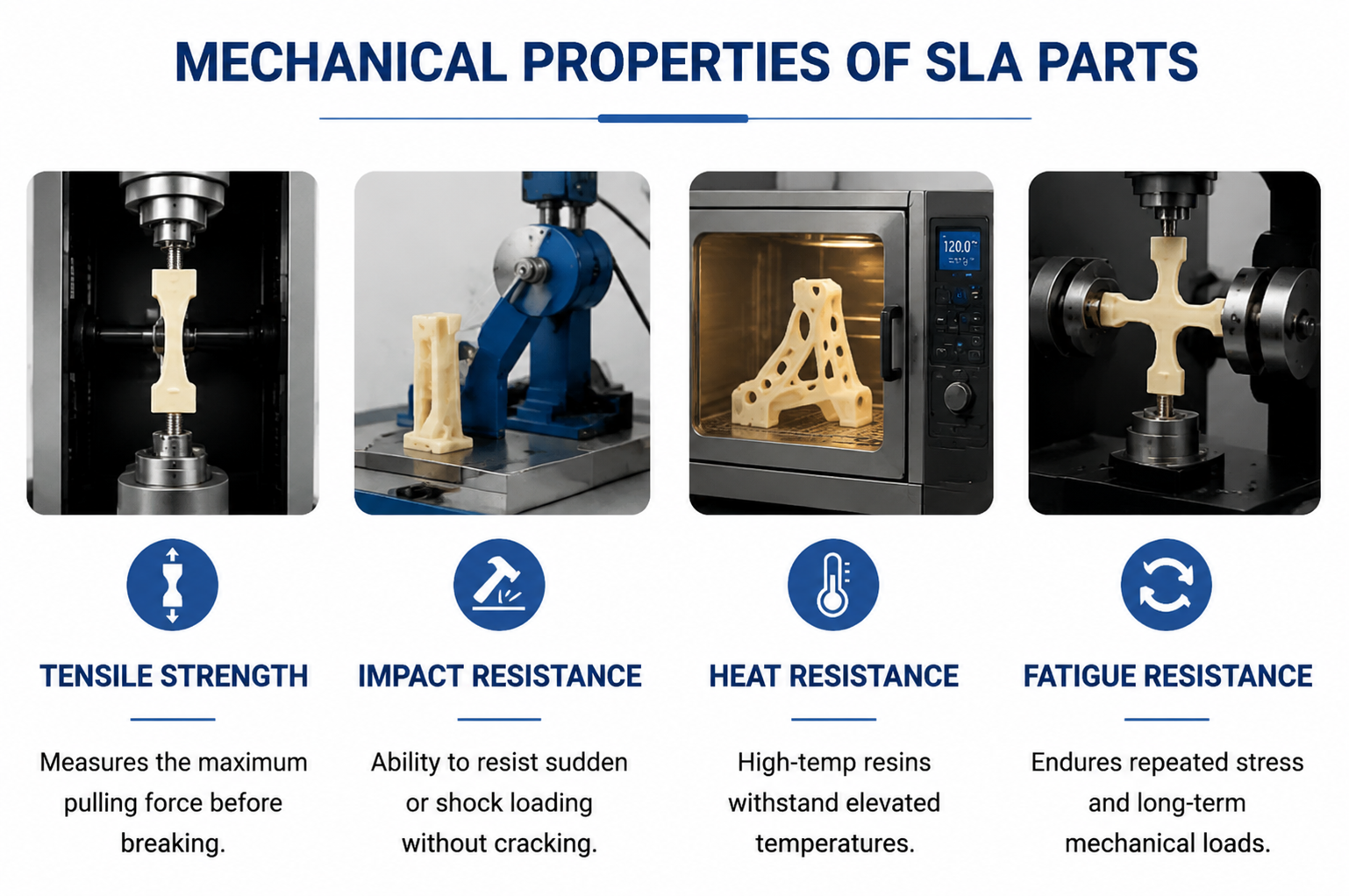

Mechanical Properties of SLA Printed Parts
The actual strength of SLA parts depends on the resin specification.
Important mechanical properties include:
Tensile Strength
Measures how much pulling force a printed part can withstand before breaking.
Higher tensile strength is important for:
Structural prototypes
Mechanical components
Fixtures and tools
Impact Resistance
Determines whether a part can withstand sudden forces.
Impact-resistant SLA resins are commonly used for:
Product housings
Automotive prototypes
Functional assemblies
Heat Resistance
Standard resins may soften under high temperatures.
High-temperature SLA resins are suitable for:
Thermal testing
Engine-related prototypes
Industrial applications
Fatigue Resistance
For parts exposed to repeated stress, fatigue performance is critical.
Examples:
Hinges
Moving components
Mechanical assemblies
Real-World Applications of Strong SLA 3D Printed Parts
With the improvement of resin materials, SLA printing has expanded from prototyping into practical manufacturing applications.
1. Automotive Industry
Automotive companies use industrial SLA printing for:
Interior prototypes
Air duct testing models
Design validation parts
Functional assemblies
The advantages include:
Faster development cycles
Reduced tooling costs
Rapid design iteration
Industrial SLA systems can produce large, accurate components for automotive development workflows.
2. Medical and Healthcare Applications
SLA is widely used in medical fields because of its excellent precision.
Applications include:
Surgical planning models
Anatomical models
Dental applications
Medical device prototypes
Specialized biocompatible resins allow SLA printed parts to meet specific medical requirements.
3. Jewelry Manufacturing
Jewelry is one of the strongest application areas for SLA/DLP printing.
Proper post-processing significantly affects final mechanical performance.
How to Improve SLA Part Strength?
Manufacturers can improve SLA performance through several methods:
Choose the Right Resin
Selecting engineering resin according to application requirements is essential.
Optimize Printing Parameters
Important factors include:
Layer thickness
Printing orientation
Exposure settings
Support structure design
Proper Post-Curing
A controlled curing process improves:
Strength
Stability
Heat resistance
Why Choose Industrial SLA 3D Printing for Manufacturing?
Industrial SLA 3D printers provide advantages beyond traditional prototyping:
High Precision
SLA technology can achieve excellent dimensional accuracy for complex components.
Smooth Surface Finish
Printed parts require less manual finishing.
Large Build Capability
Industrial SLA systems support larger models and batch production.
Material Flexibility
Manufacturers can select different resins according to performance requirements.
VNICI industrial SLA 3D printers are designed for applications requiring high accuracy, stable production, and reliable output, supporting industries such as automotive, medical, jewelry, and industrial manufacturing.
SLA 3D Printed Parts: Are They Strong Enough?
The answer is:
Yes, SLA 3D printed parts can be strong enough for many industrial applications — when the correct resin, printing parameters, and post-processing methods are used.
SLA is not designed to replace every traditional manufacturing method. Instead, it provides a powerful solution where companies need:
High precision
Fast production cycles
Complex designs
Functional prototypes
Low-volume manufacturing
As resin technology continues to advance, SLA is becoming an increasingly important manufacturing technology rather than just a prototyping method.
Frequently Asked Questions (FAQ)
Are SLA 3D printed parts strong?
Yes. Modern SLA parts made with engineering resins can provide excellent strength, impact resistance, and durability for many functional applications.
What is the strongest SLA resin?
The strongest SLA resin depends on the application. Tough, high-temperature, and engineering-grade resins generally provide better mechanical performance than standard resins.
Can SLA parts be used for final products?
Yes. SLA parts can be used for low-volume production, customized components, medical models, jewelry patterns, and functional prototypes.
Is SLA stronger than FDM?
It depends on the material. SLA generally provides better surface quality and accuracy, while FDM can offer advantages with certain high-strength thermoplastic materials.
Can SLA replace injection molding?
For mass production, injection molding remains more economical. However, SLA is highly valuable for prototypes, customized products, and small-batch manufacturing.
Conclusion
The strength of SLA 3D printed parts has improved significantly with modern resin development. While SLA may not replace metal manufacturing for extreme applications, it provides an excellent balance between accuracy, surface quality, speed, and mechanical performance.
For companies looking for precision prototypes, functional components, or low-volume production solutions, industrial SLA 3D printing offers a reliable and flexible manufacturing approach.
