What Is FDM 3D Printing and How Does It Work?

FDM 3D printing is one of the most widely used and accessible additive manufacturing technologies today. Known for its affordability, material versatility, and ease of use, FDM is commonly applied in prototyping, functional parts, tooling, and small-batch production across various industries.

In this beginner-friendly guide, we explain what FDM 3D printing is, how it works, its key advantages, typical applications, and how it compares with other 3D printing technologies—helping you determine whether FDM is the right solution for your manufacturing needs.

What Is FDM 3D Printing?

FDM (Fused Deposition Modeling) 3D printing is an additive manufacturing process that builds parts by extruding melted thermoplastic filament through a heated nozzle. The material is deposited layer by layer, following a digital 3D model, until the final object is formed.

FDM is widely used due to its cost-effectiveness, wide material selection, and suitability for producing durable functional components, making it an ideal choice for both industrial users and entry-level applications.

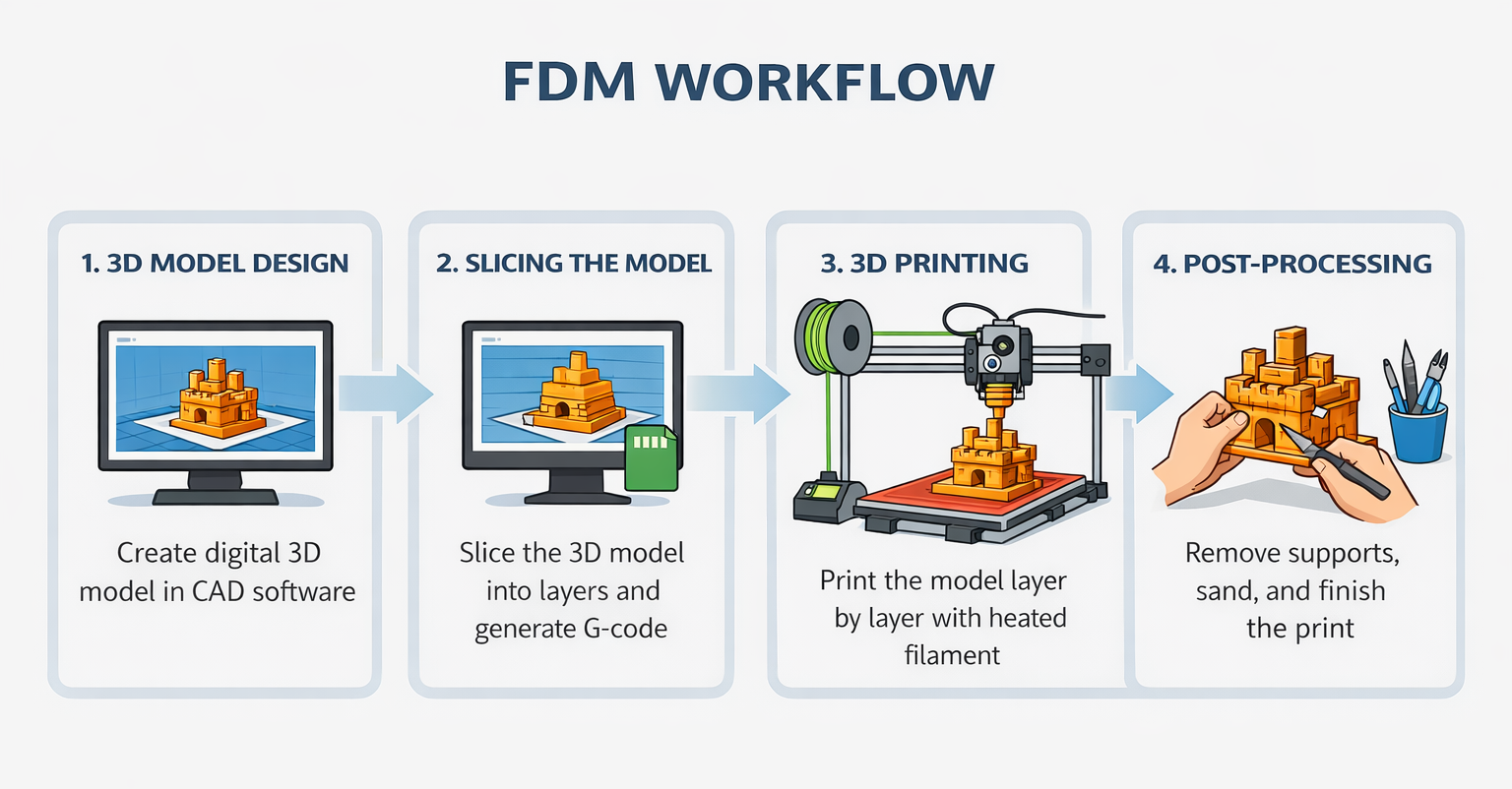

How Does FDM 3D Printing Work?

The FDM 3D printing process typically involves the following steps:

3D Model Preparation

A digital model is designed using CAD software and sliced into layers using slicing software.

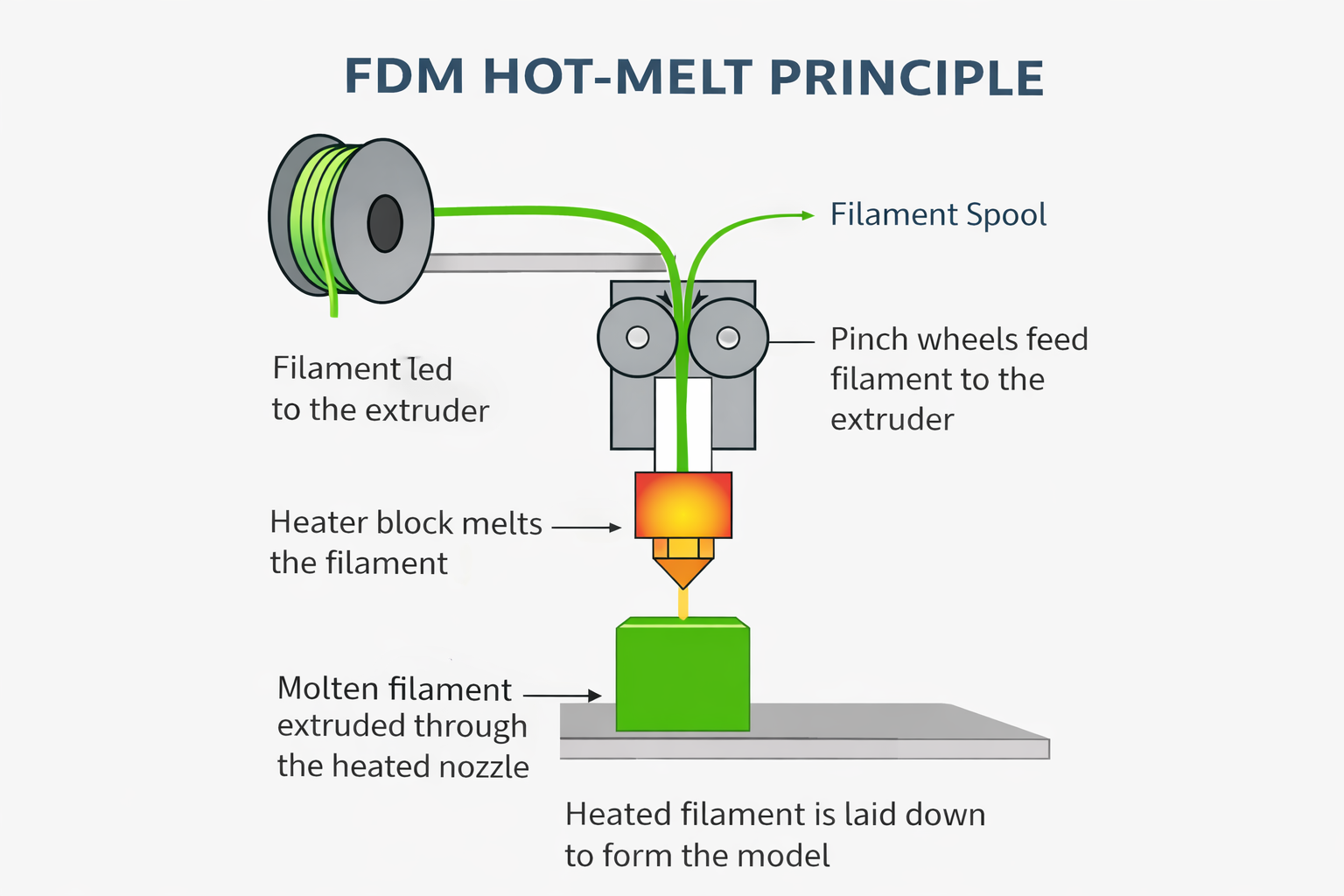

Filament Feeding and Heating

Thermoplastic filament is fed into a heated nozzle, where it is melted to a semi-liquid state.

Layer-by-Layer Deposition

The printer deposits the molten material onto the build platform, layer by layer, following the predefined toolpath.

Cooling and Solidification

Each deposited layer cools and solidifies quickly, bonding with the previous layer to form a strong structure.

This process makes FDM ideal for producing structural parts, enclosures, fixtures, and functional prototypes.

Common Materials Used in FDM 3D Printing

One of FDM’s biggest advantages is its wide range of compatible materials, including:

• PLA – Easy to print, suitable for prototypes and visual models

•  ABS – Strong and heat-resistant for functional parts

•  PETG – Balanced strength, flexibility, and chemical resistance

• Nylon (PA) – High durability and wear resistance

• Carbon Fiber Reinforced Filaments – Enhanced stiffness and strength for industrial applications

Material selection allows FDM printers to meet diverse performance and cost requirements.

Key Advantages of FDM 3D Printing

Cost-Effective Manufacturing

FDM 3D printers and materials are generally more affordable, making them suitable for startups, small businesses, and large-scale industrial use alike.

Strong and Durable Parts

FDM parts are well-suited for functional testing, tooling, and end-use applications where mechanical strength is required.

Wide Material Compatibility

With a broad selection of engineering-grade filaments, FDM supports a wide range of industrial applications.

Scalable Production

FDM is ideal for rapid prototyping, jigs and fixtures, and small-batch manufacturing, helping reduce lead times and production costs.

Typical Applications of FDM 3D Printing

FDM 3D printing is commonly used in:

• Product Development – Concept models and functional prototypes

• Industrial Tooling – Jigs, fixtures, and assembly aids

• Automotive – Functional testing parts and brackets

• Education & R&D – Teaching, research, and innovation projects

• Small-Batch Production – Custom parts and low-volume manufacturing



FDM vs Other 3D Printing Technologies

FDM vs SLA

While FDM focuses on durability and cost-efficiency, SLA 3D printing excels in precision and surface quality. FDM is ideal for functional parts, while SLA is better suited for detailed and aesthetic components.

FDM vs SLS

Compared to SLS, FDM offers lower equipment and material costs. SLS is preferred for complex, load-bearing parts without support structures, while FDM remains a practical solution for everyday manufacturing needs.

Selecting the right technology depends on accuracy requirements, material properties, production volume, and budget.

Is FDM 3D Printing Right for Your Business?

FDM 3D printing is an excellent choice if your application requires:

• Affordable production solutions

• Durable and functional components

• Flexible material options

• Rapid prototyping and tooling

As a professional 3D printer and material manufacturer, we offer reliable FDM 3D printers and high-quality filaments designed to meet industrial and commercial production requirements.

Conclusion

FDM 3D printing remains one of the most versatile and practical manufacturing technologies available today. With its balance of cost, strength, and material diversity, it continues to support businesses across industries in achieving efficient and scalable production.

If you would like to learn more about our FDM 3D printers, filament materials, or customized manufacturing solutions, feel free to contact us. We are committed to delivering professional 3D printing solutions that help you turn ideas into reality.
